Description

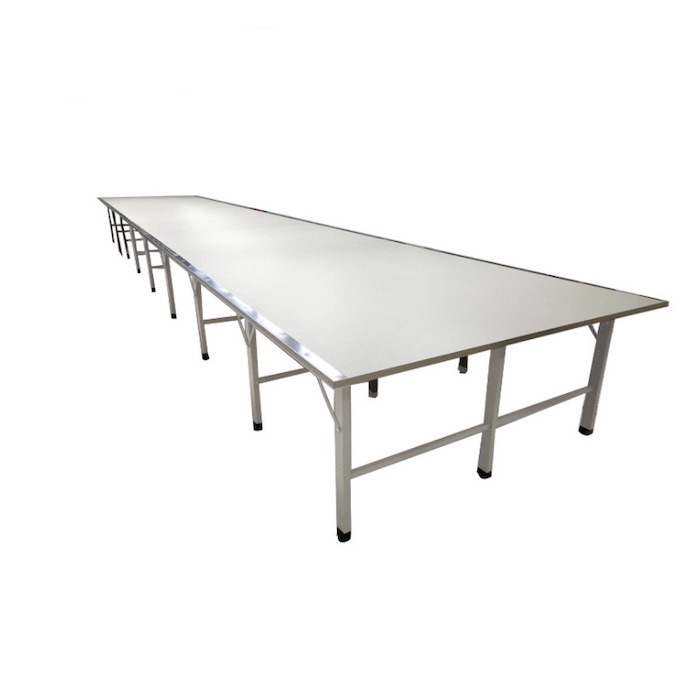

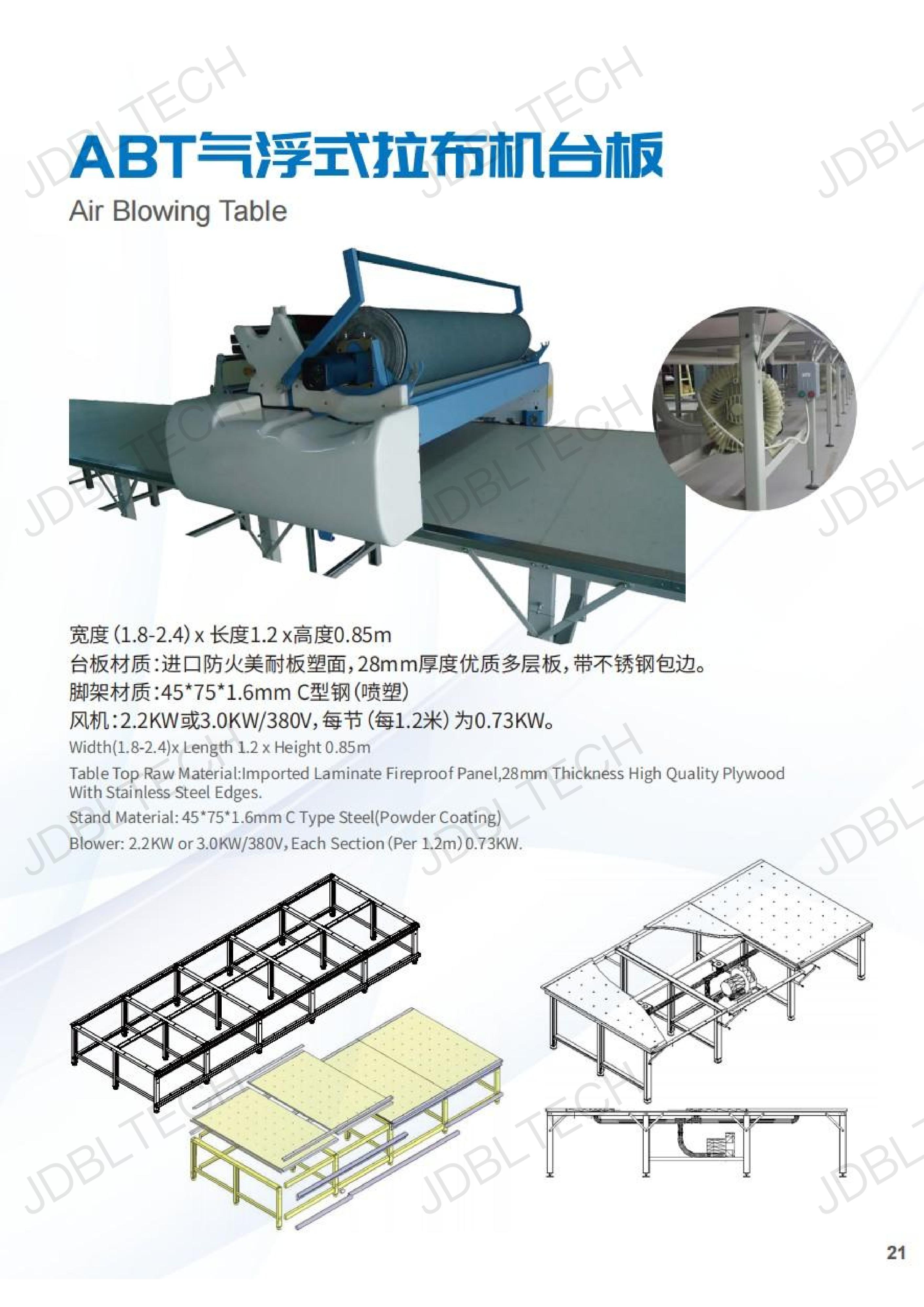

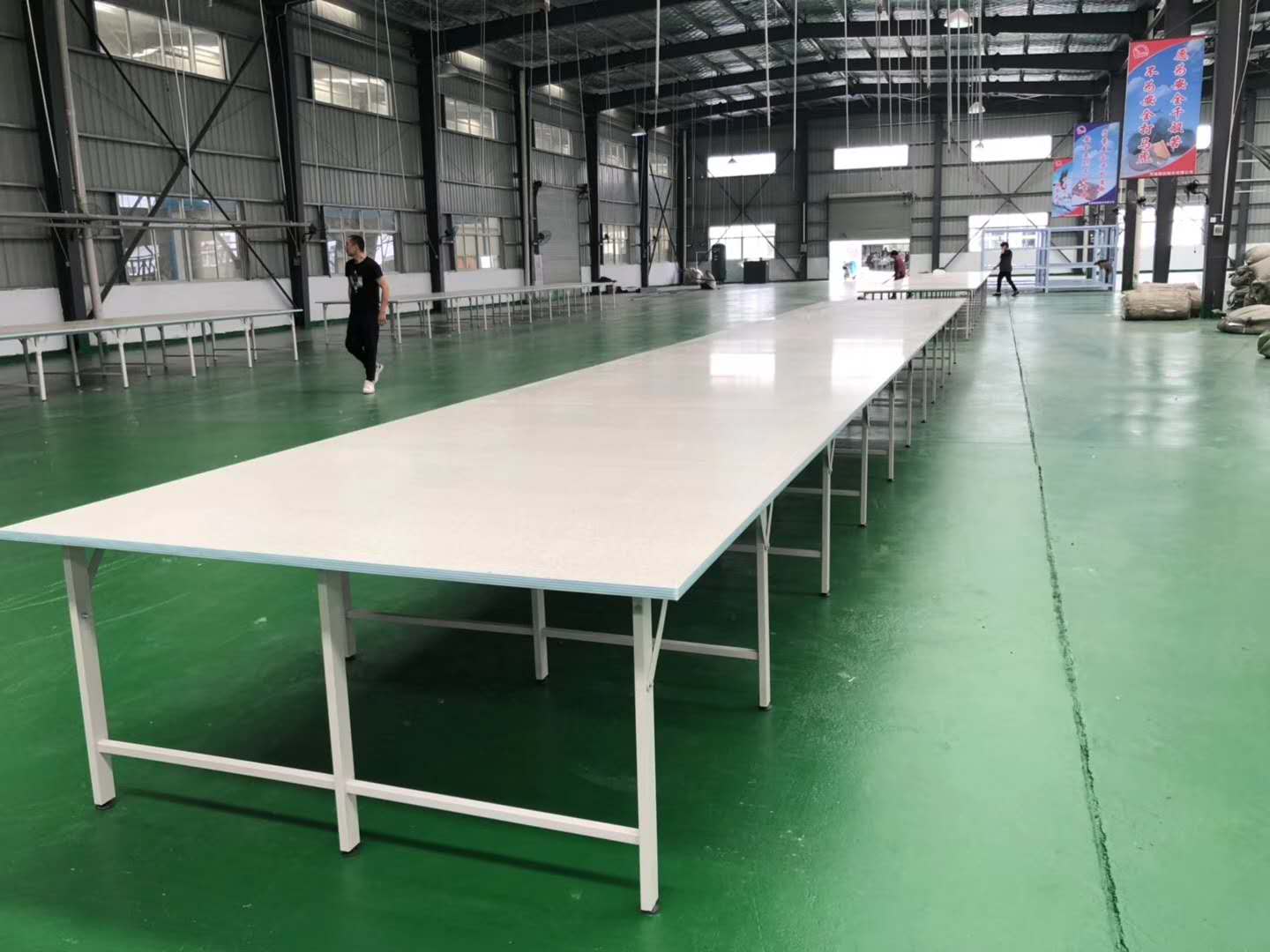

A.Spreading and cutting fabric table JD-120

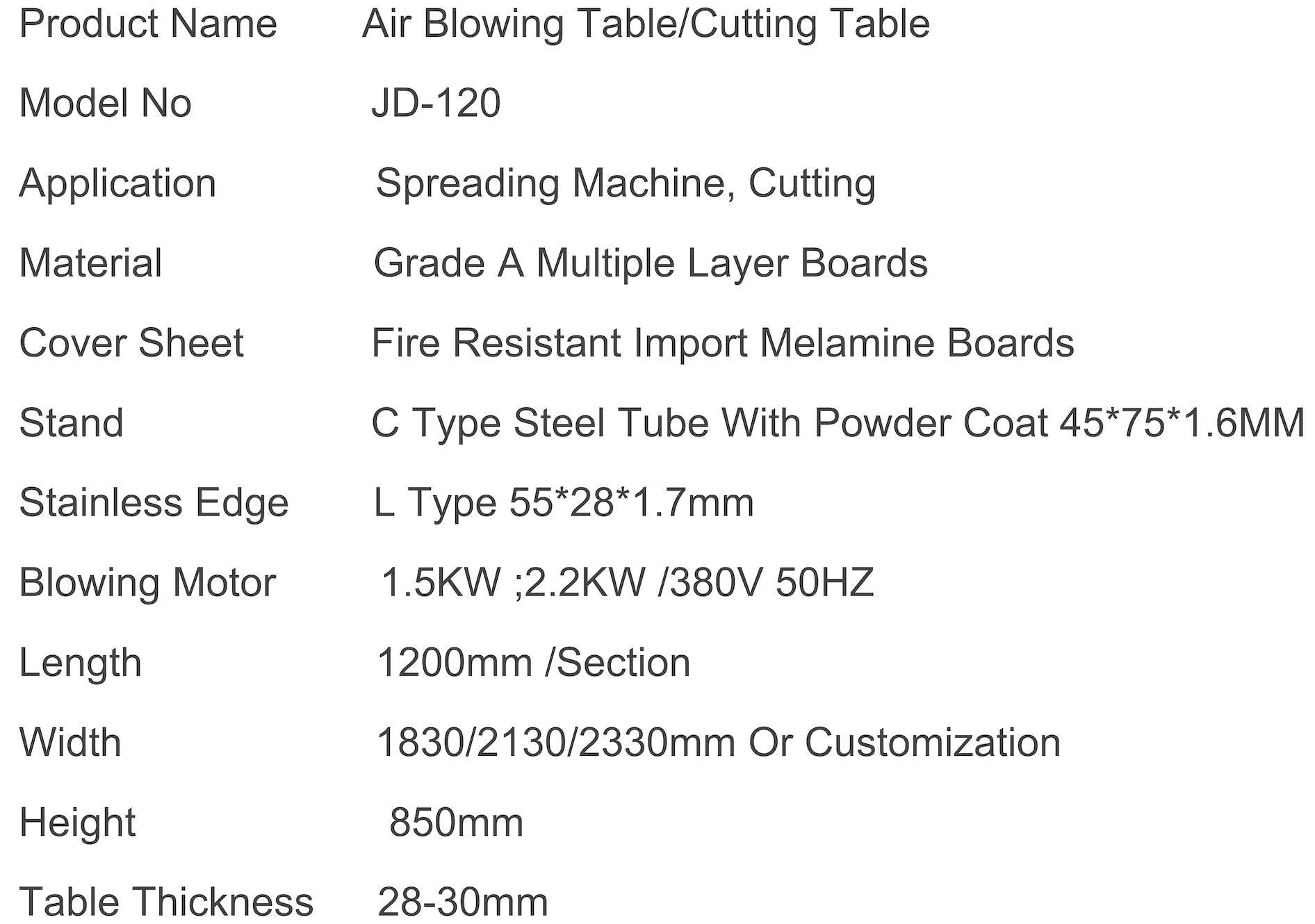

Specification:
Details :

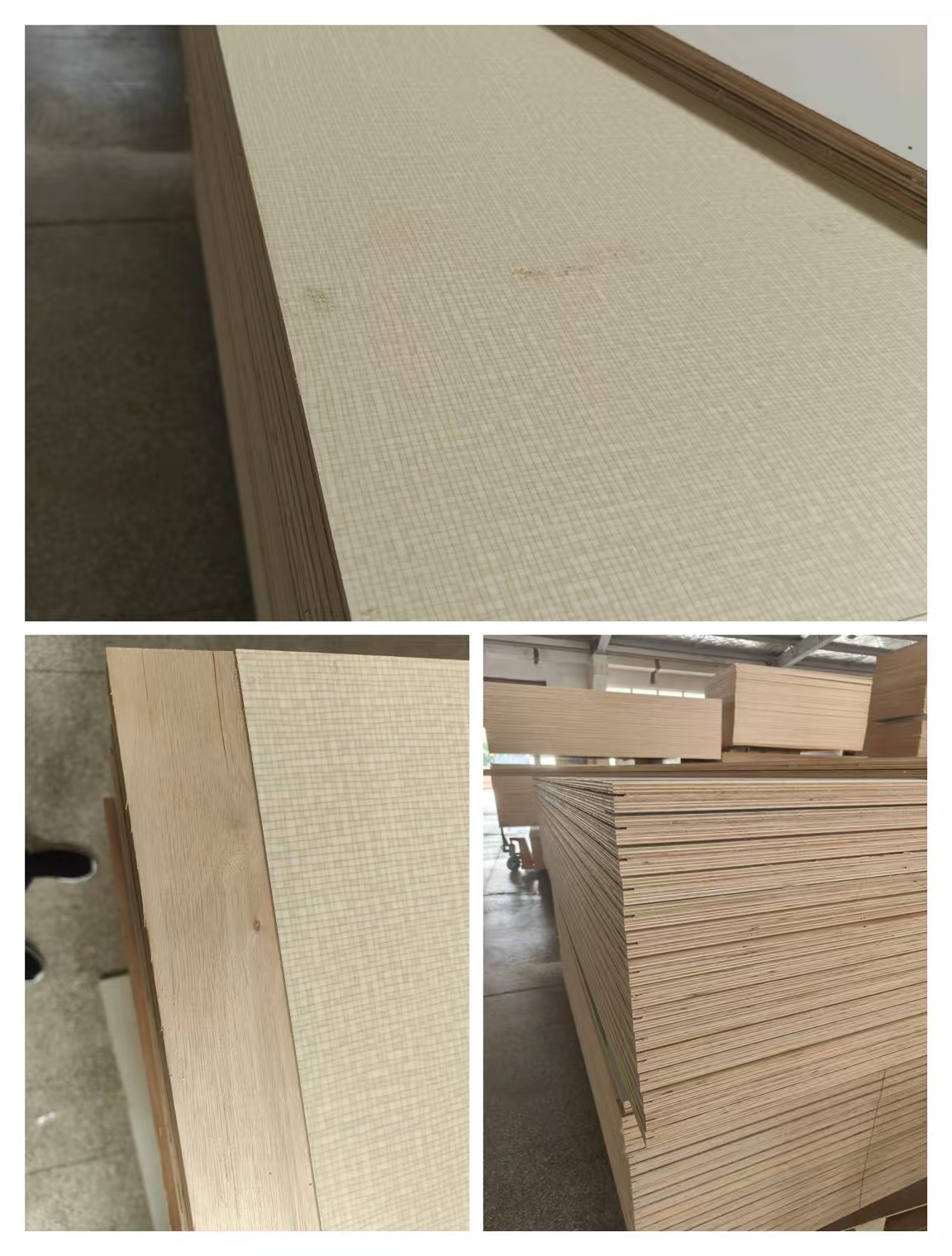

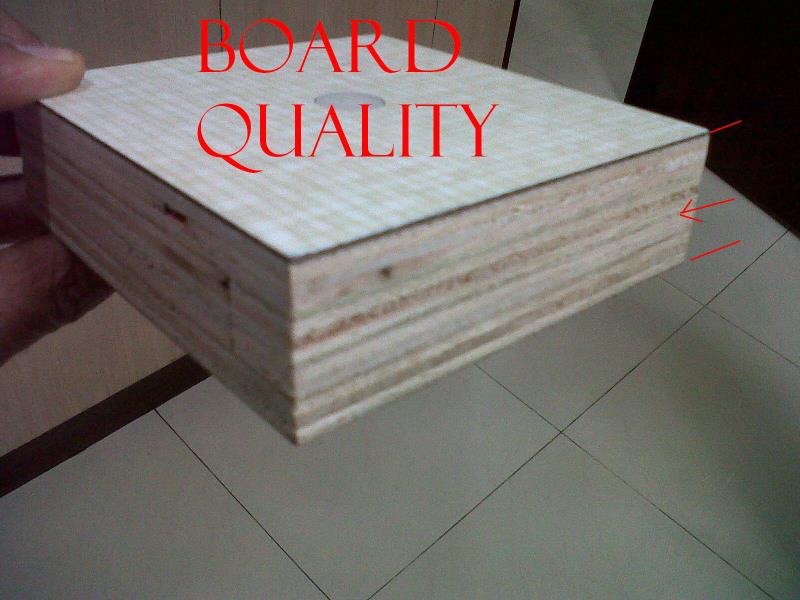

1.Table made by Class A multilayer board with import melamine cover- anti-cracked-anti loose glue-anti fire

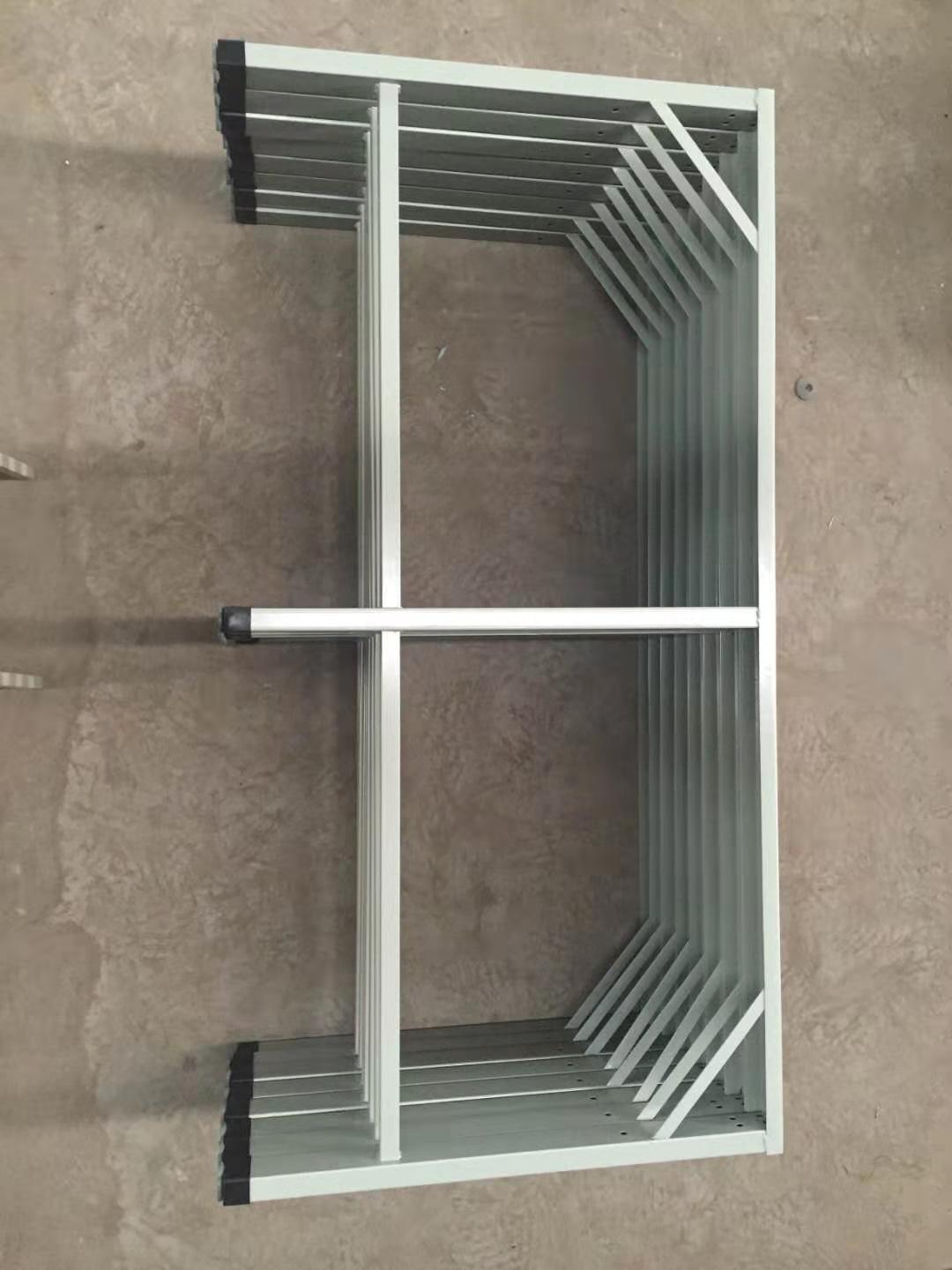

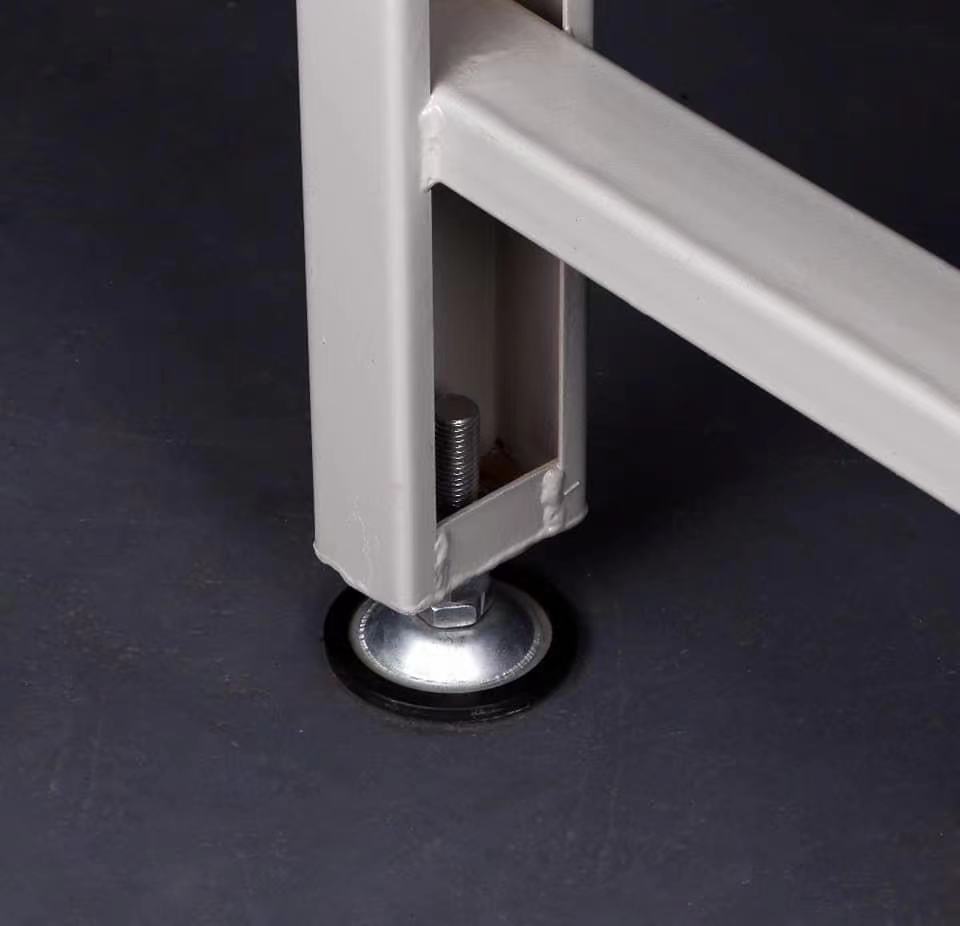

2.Stand : C Type Steel Tube With Powder Coat 45*75*1.6MM , very good loading capacity ,ensure not shake when machine run on.

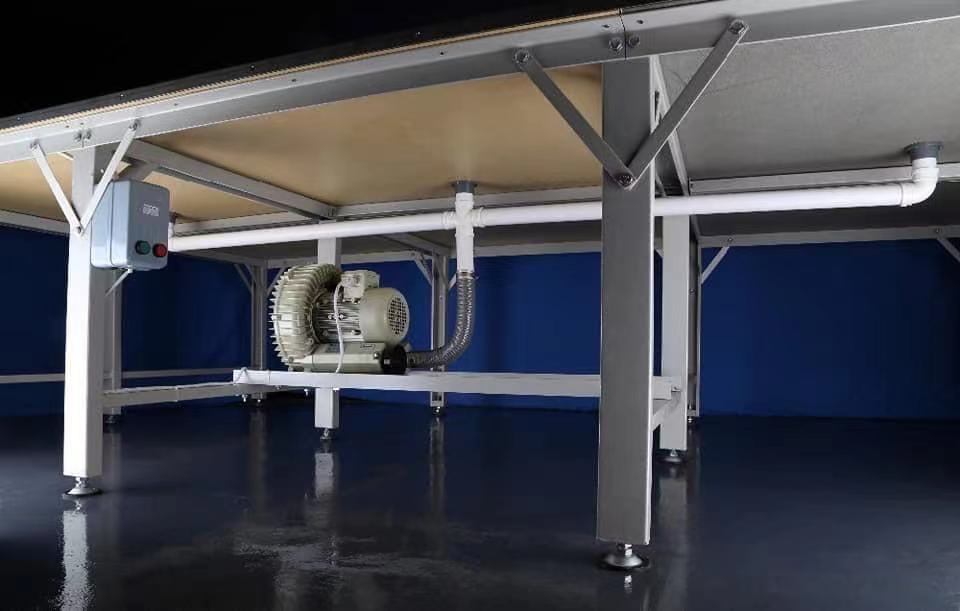

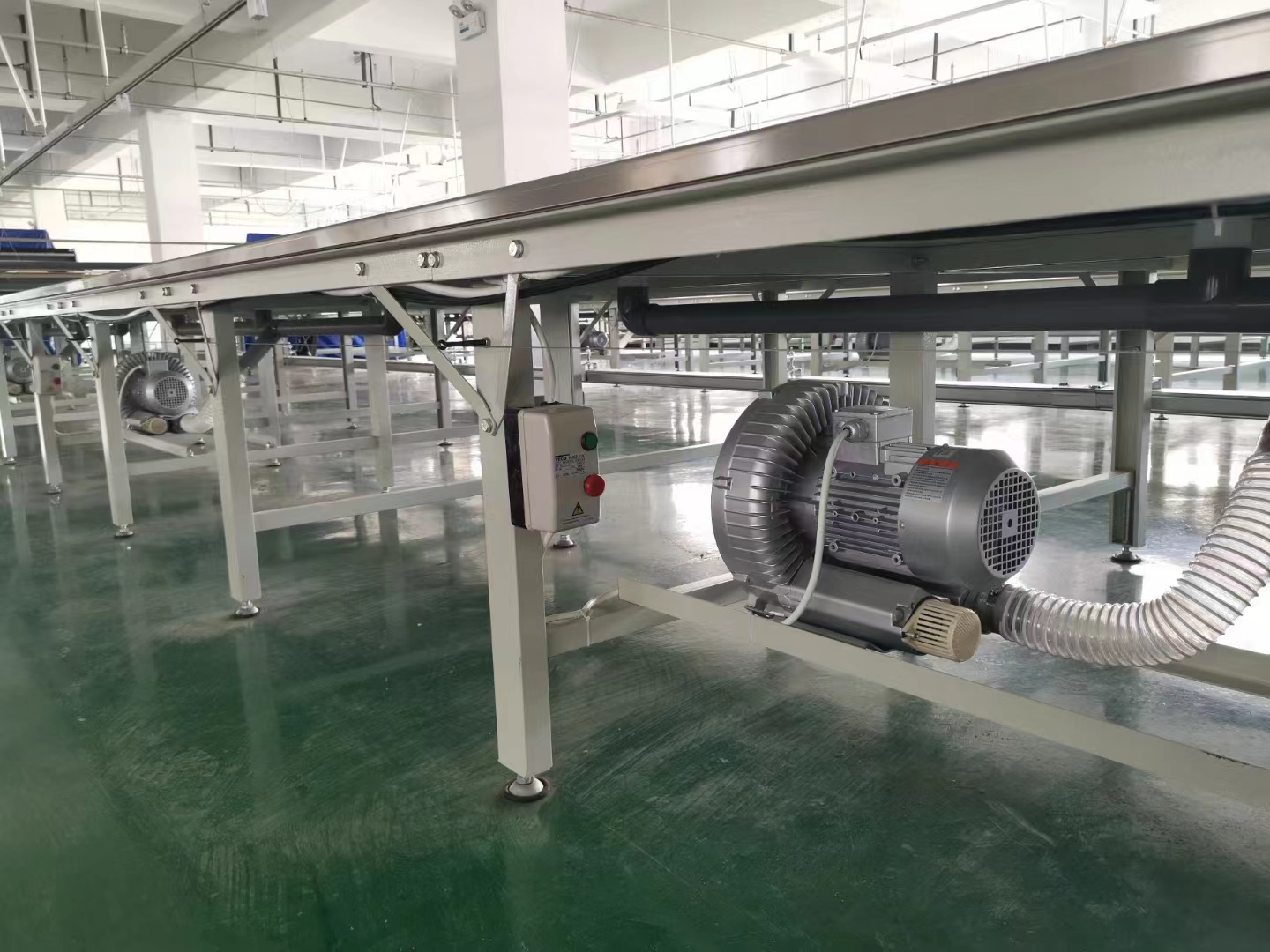

3.Blowing Motor: 2.2KW /380V 50HZ.To ensure high pressure blowing, move fabric easily. 3.6m length normal table match one motor.

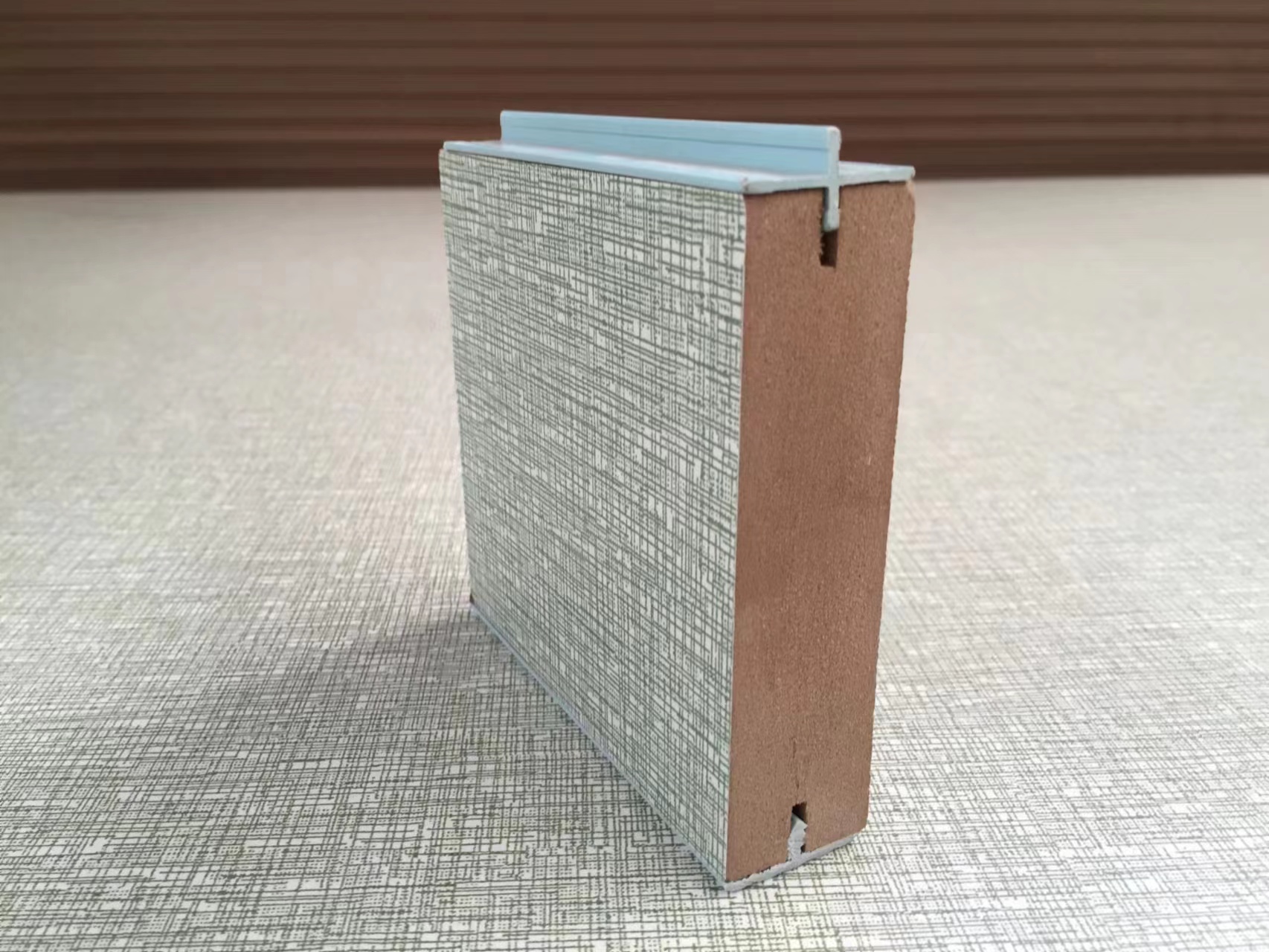

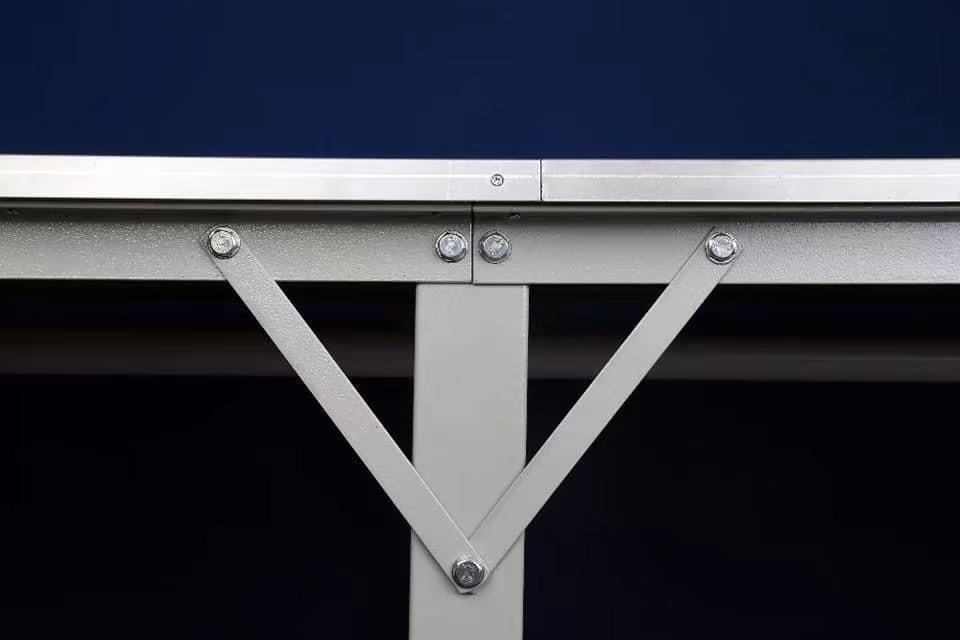

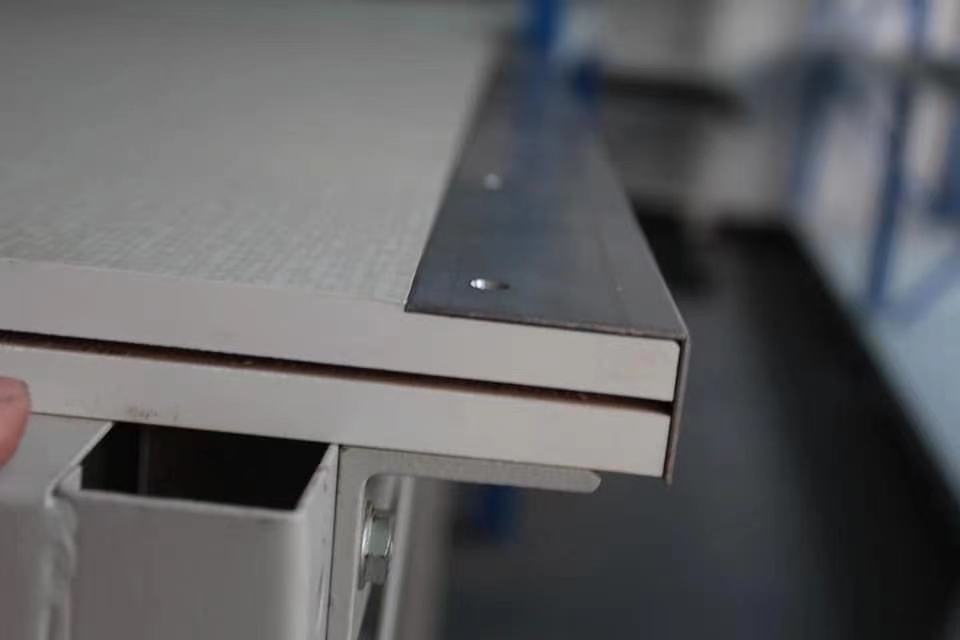

4. Sus 304 stainless Edge : L Type 55*28*1.7mm, perfectly match with fabric spreading machine walking wheel and side wheel, extend spreading machine wheel lifetime.

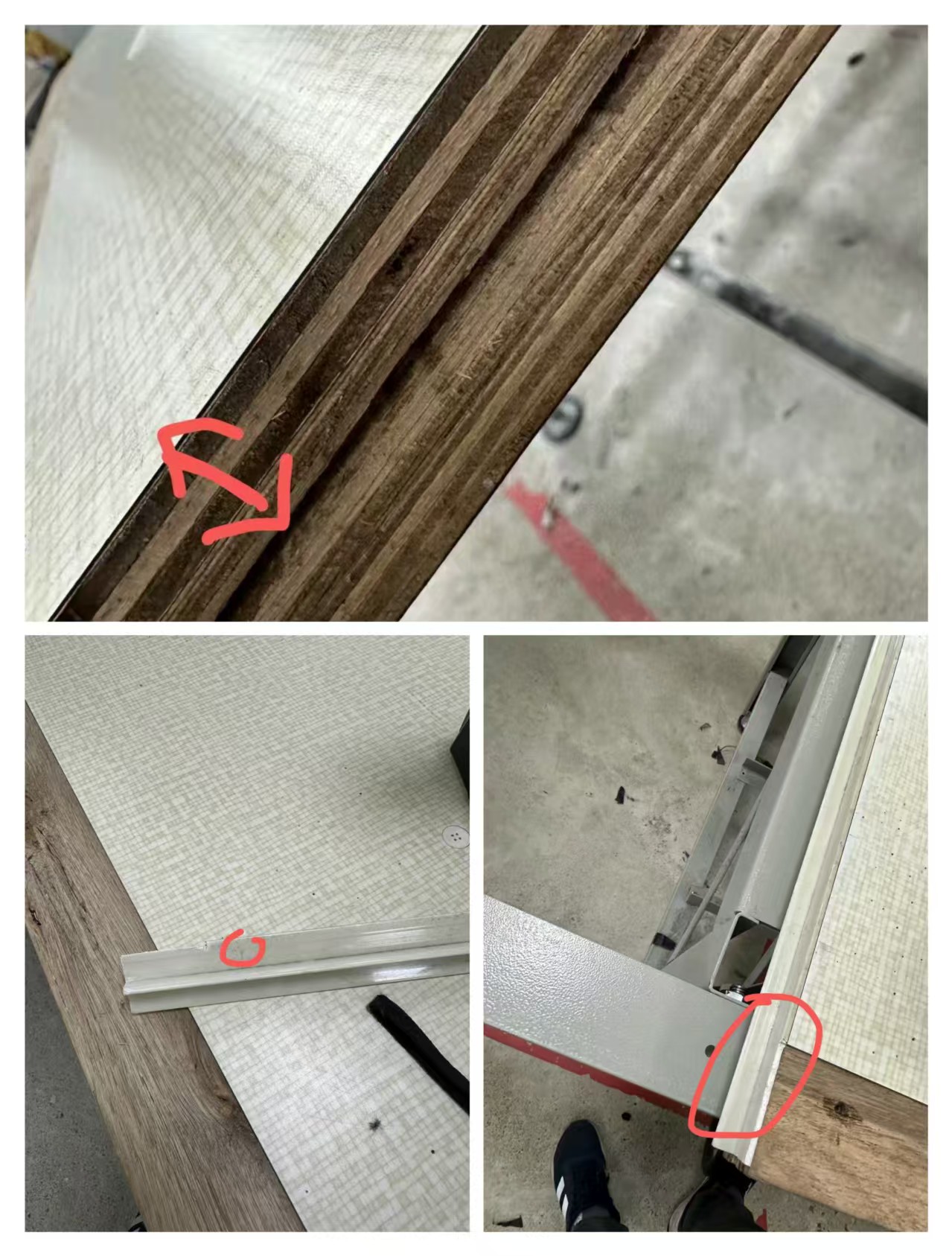

Comparison :
A. Lower quality Table From Cheaper supplier
B. Qualified Table From Us
Installation:

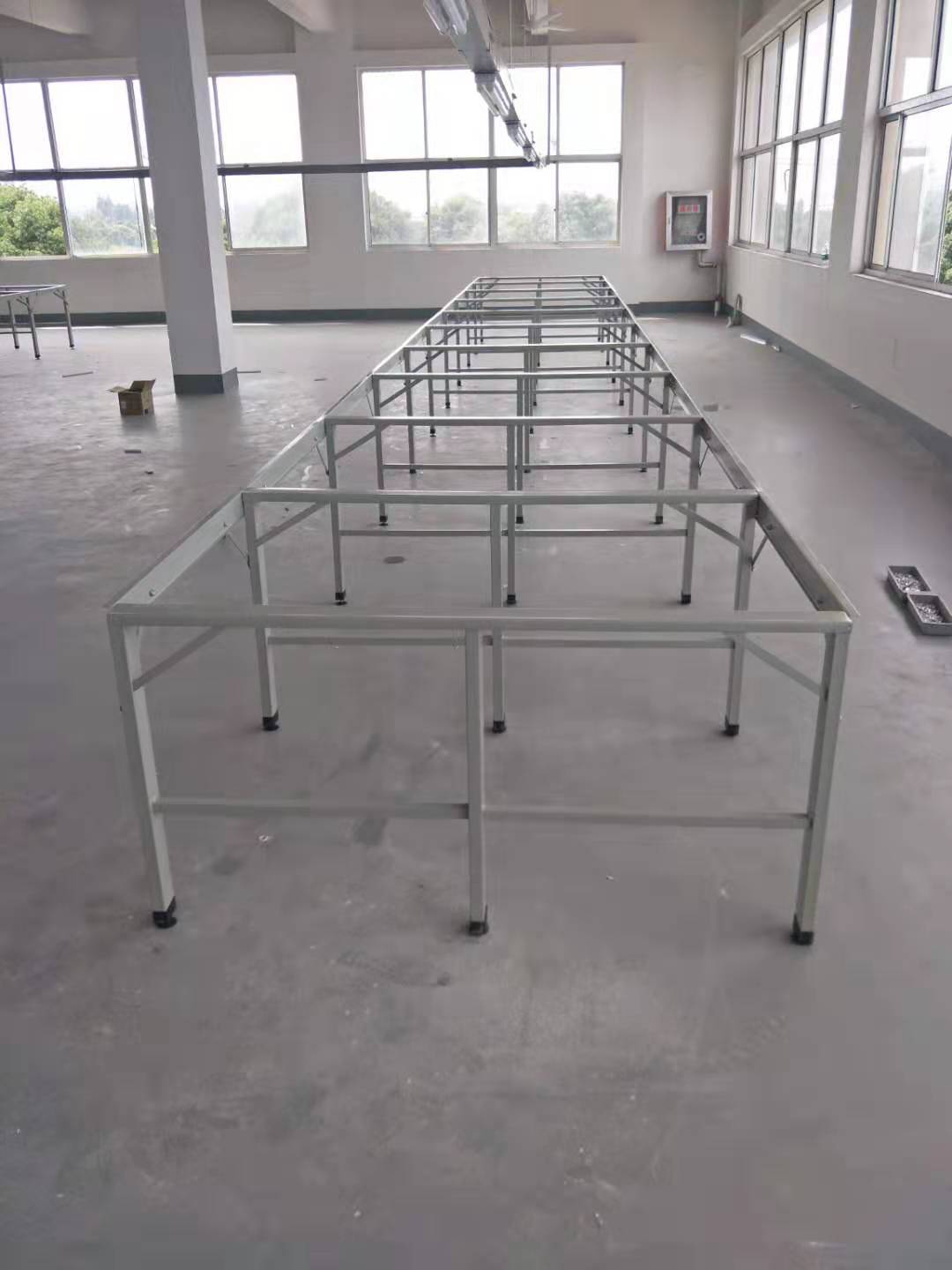

1.Stand

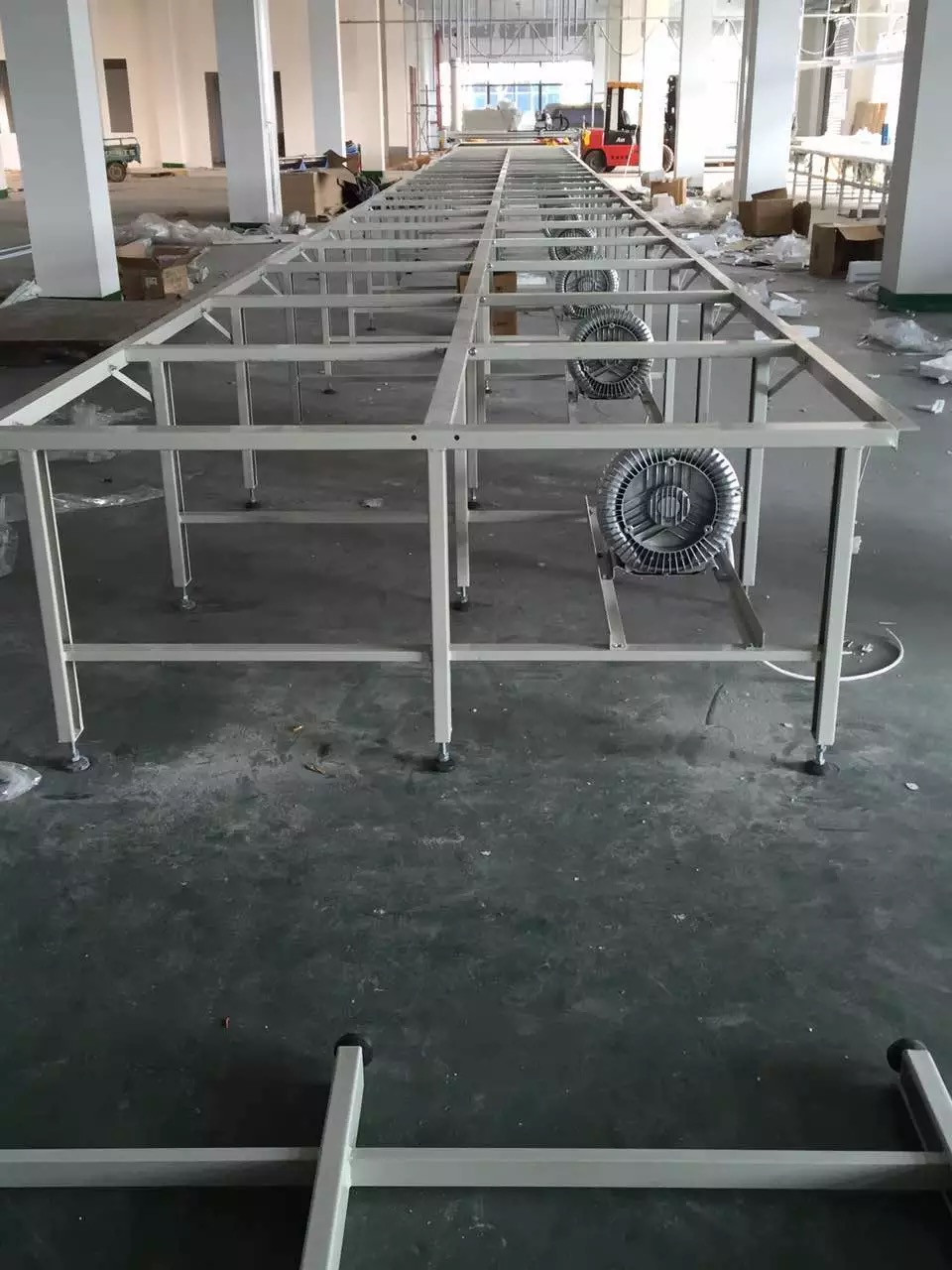

2.Blowing Motor

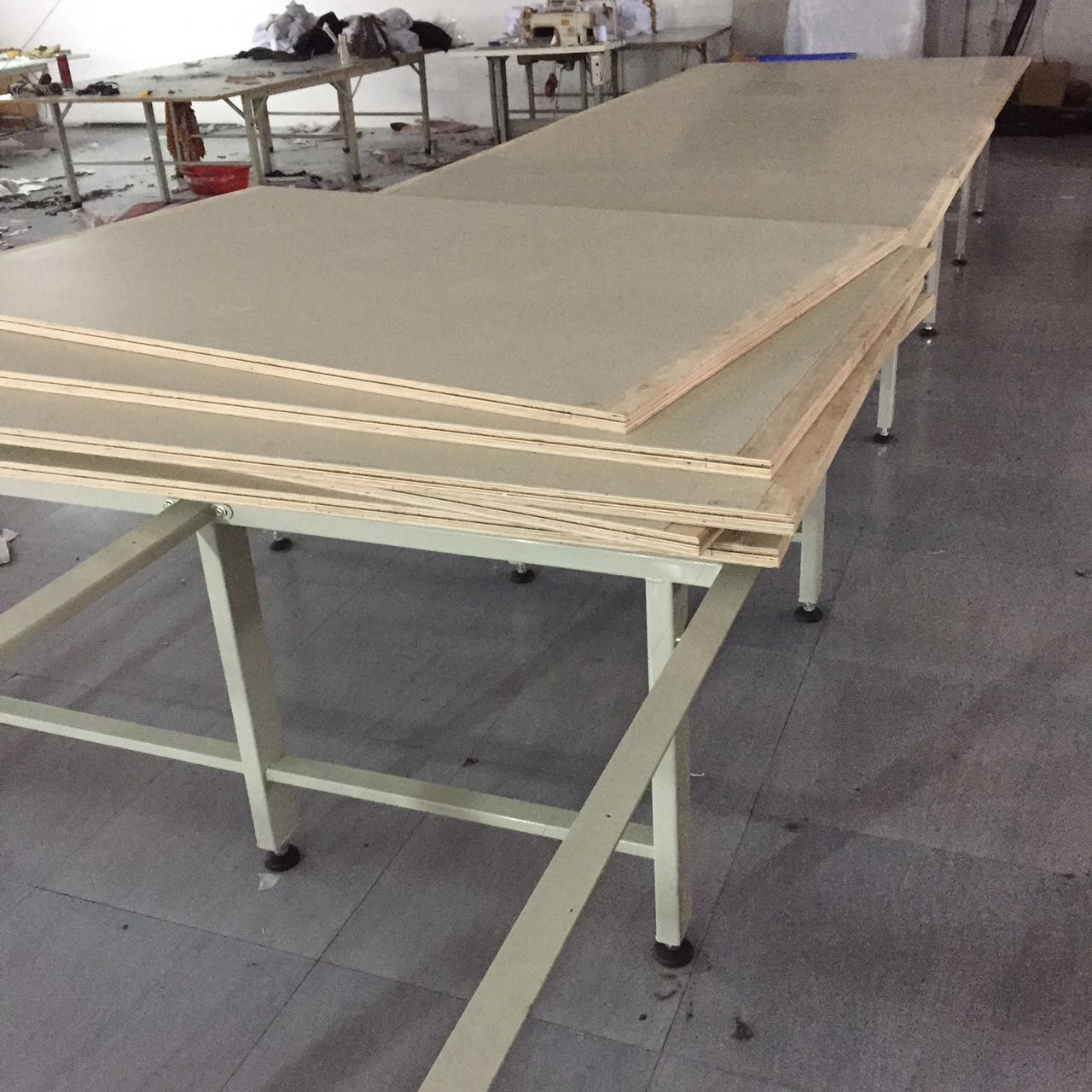

3.Table
4.Edge

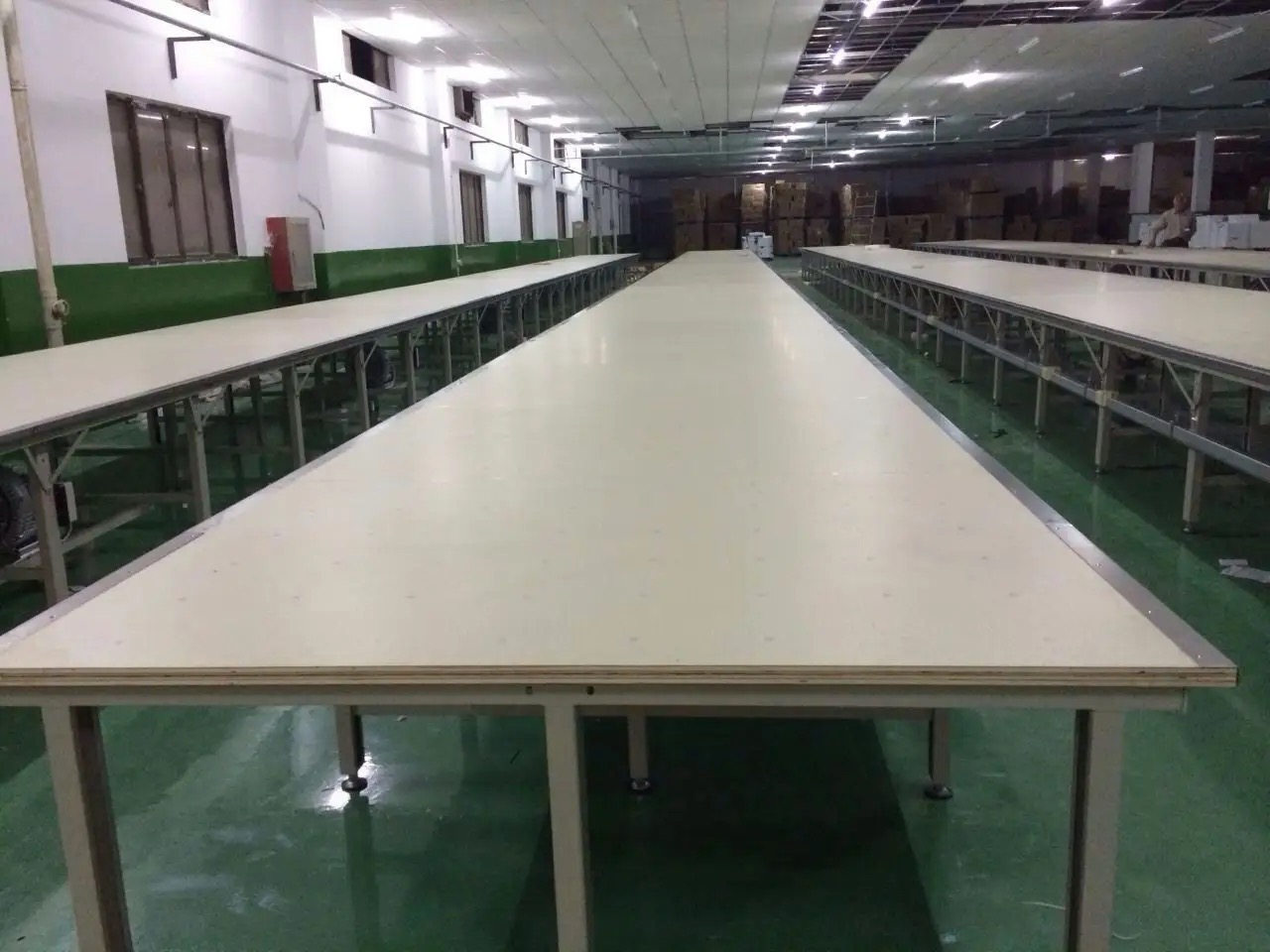

5.Finished Product

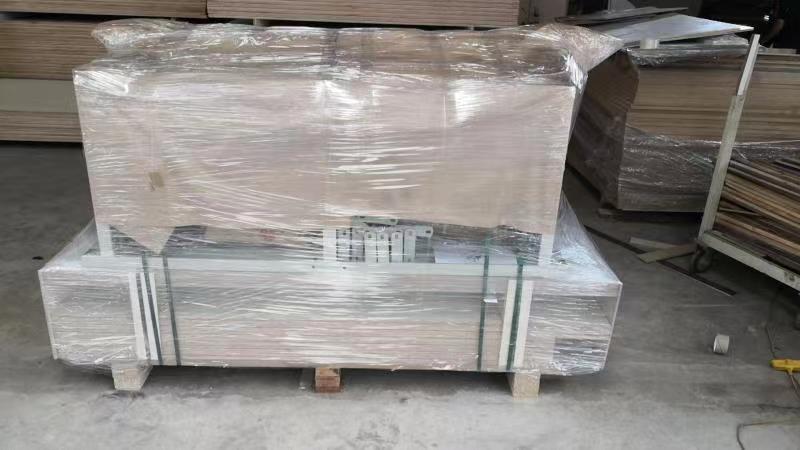

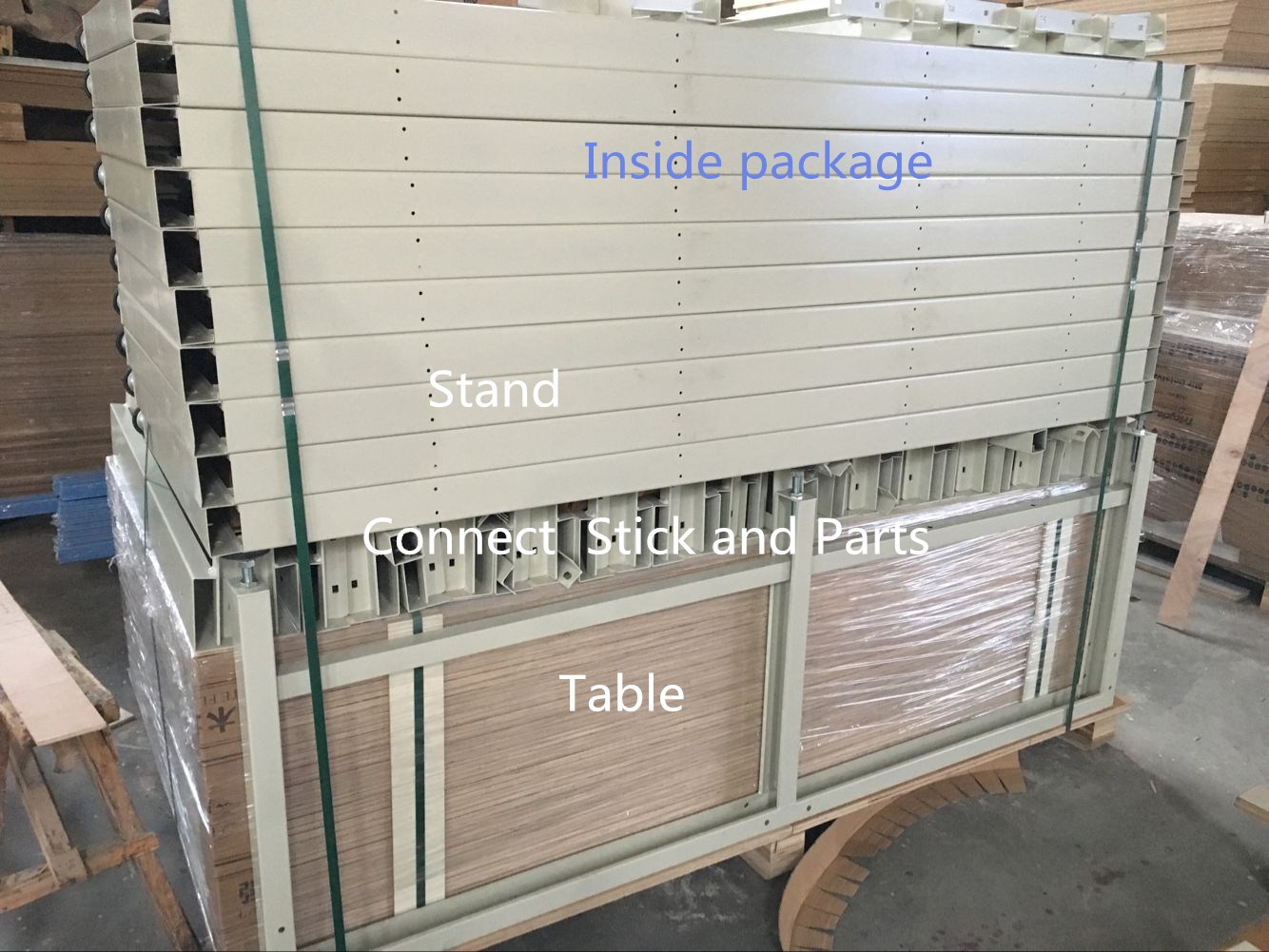

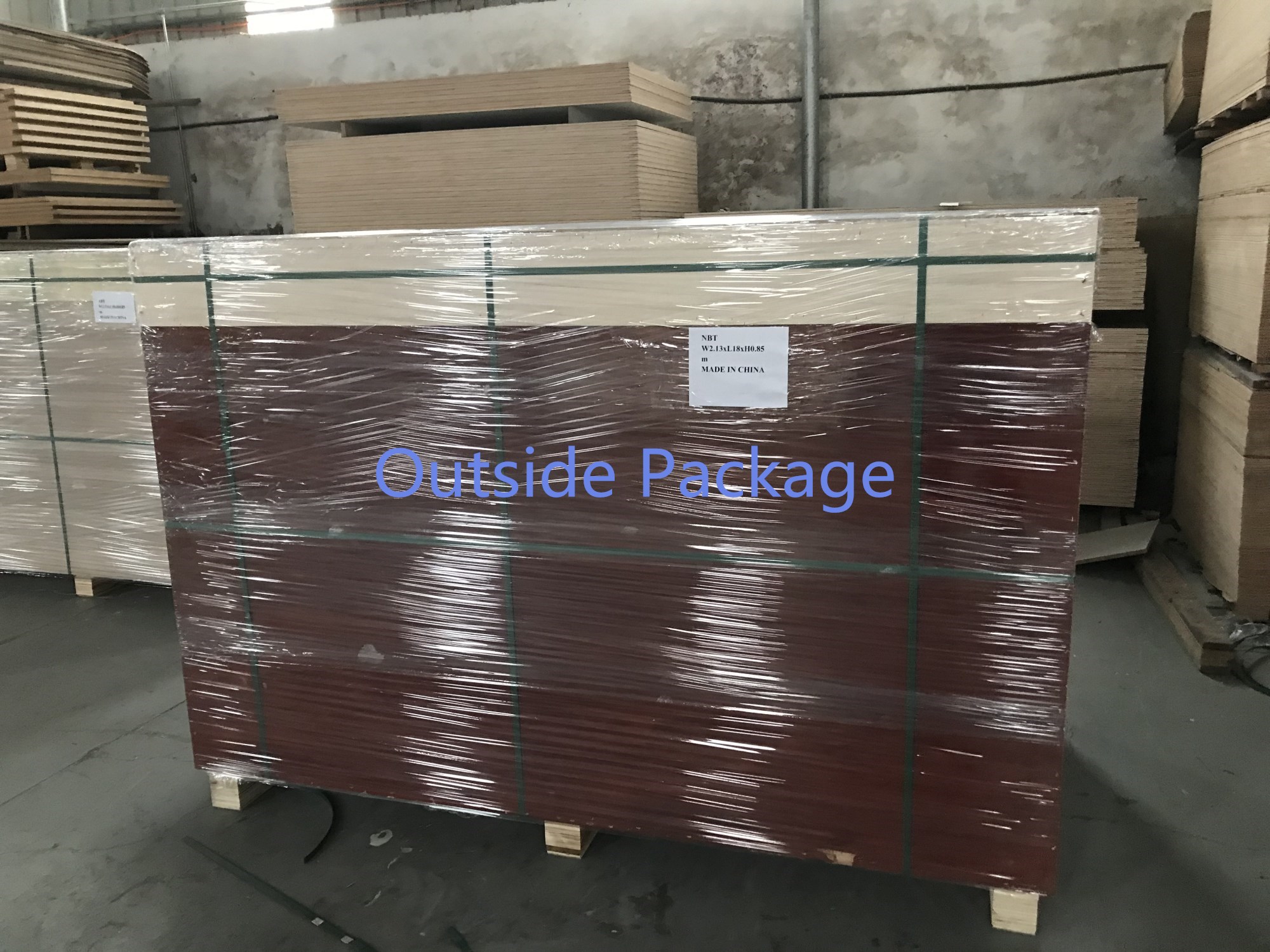

Package:
What is fabric spreading table ?
Fabric spreading table is kind of loading tool to support spreading machine run and put fabric in laying status on it as well as support cutting labors do the cutting work on the table. it must keep enough strong and stable to load heavy fabric and machine.
How to choose fabric spreading table ?
1.How to calculate the length of spreading table ? We assume need spread 10m in length fabric, then we need fabric table length 10+1.2m=11.2m in theory, but each section table is fixed 1.2m length , then we need at least 11.2/1.2=9.3 section, to get integer figure 10 sections=10*1.2m=12m in total, That means if you want spread 10m fabric , then you need prepare at least 12m length spreading area+had better add more 10m long cutting area.

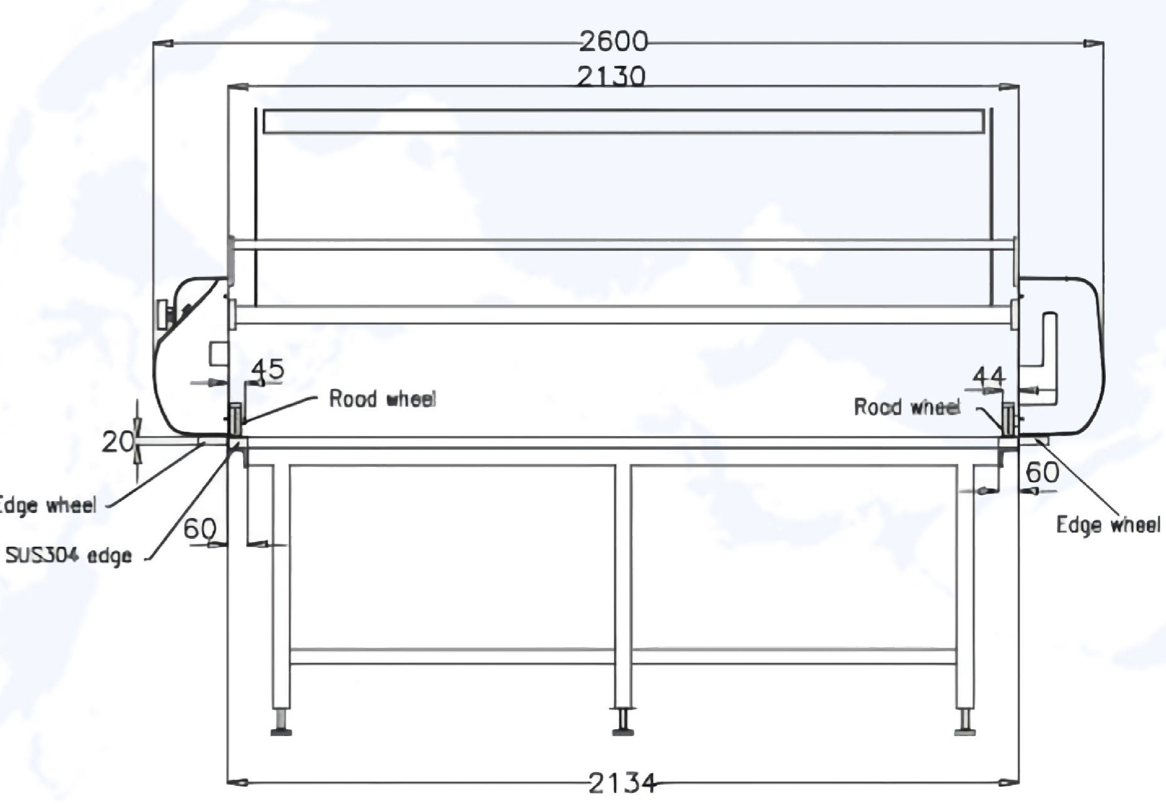

2. How to choose fabric spreading table width? We still make it according to the max fabric width customer need to spread. For example . they want to spread 180cm wide fabric max. then we have to use KW-190 spreading machine, so the table width is 190+23=213cm. But The machine will installed on the table, so how wide is the whole set equipment. here is the answer 260cm, check the picture, That means you need keep 260cm wide space room for installation.
3. How to choose spreading table with blowing motor and not ?
We know the next step is cutting the fabric after we finish spreading fabric, so we need move the many layers fabric, if it is so heavy that labor can not move it very easily then we should order blowing motor to blow it to help labor move it more quickly. if we just use spreading table for cutting pieces, then we don't need order spreading table with blowing motors.
4.Is that possible for us to customize the very wide table when we spreading home textile fabric ?
The answer is yes, above 240cm width table belongs to home textile spreading application which will use more material and metal, the price is different . Mail us ,we will talk more.

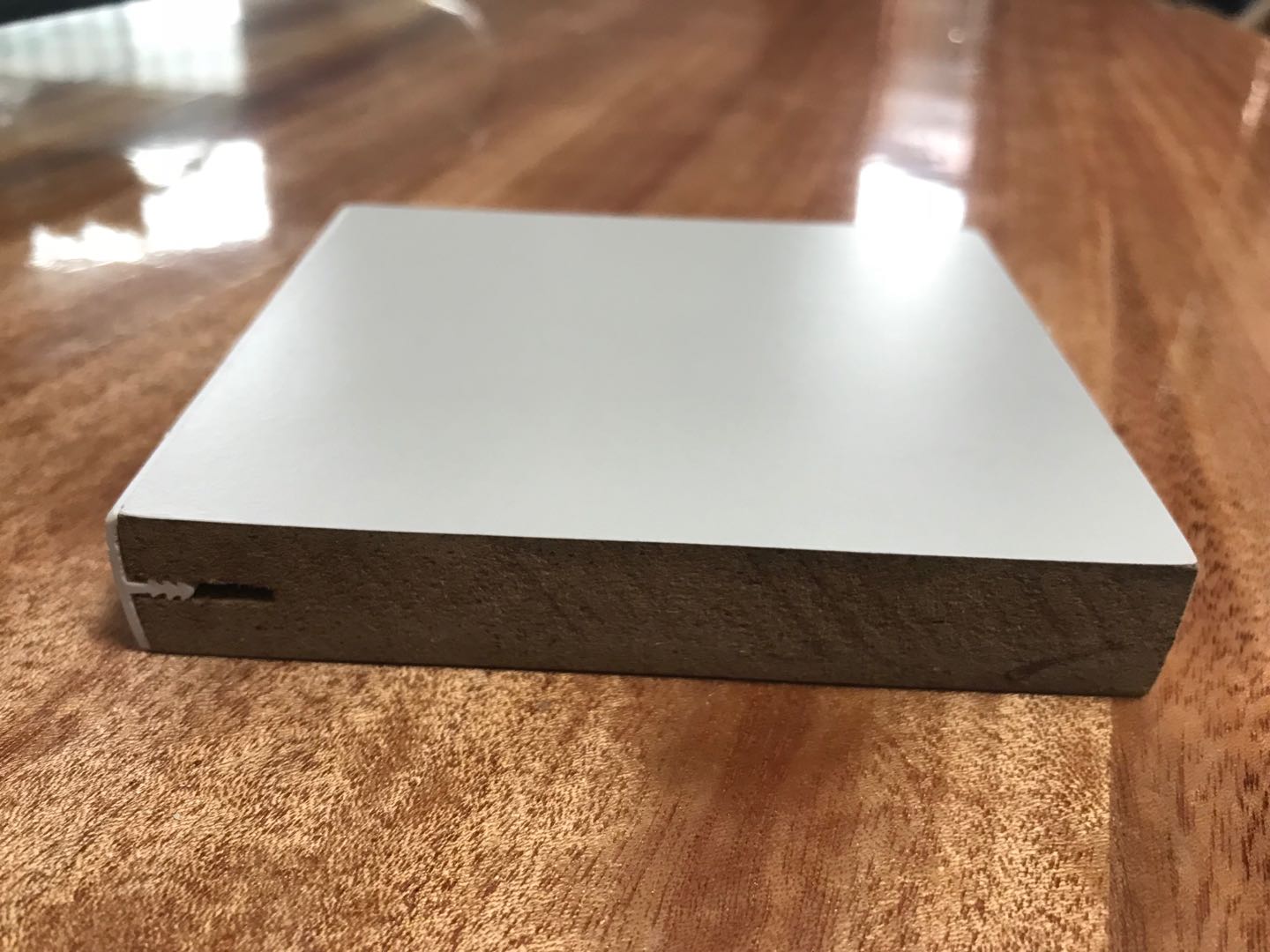

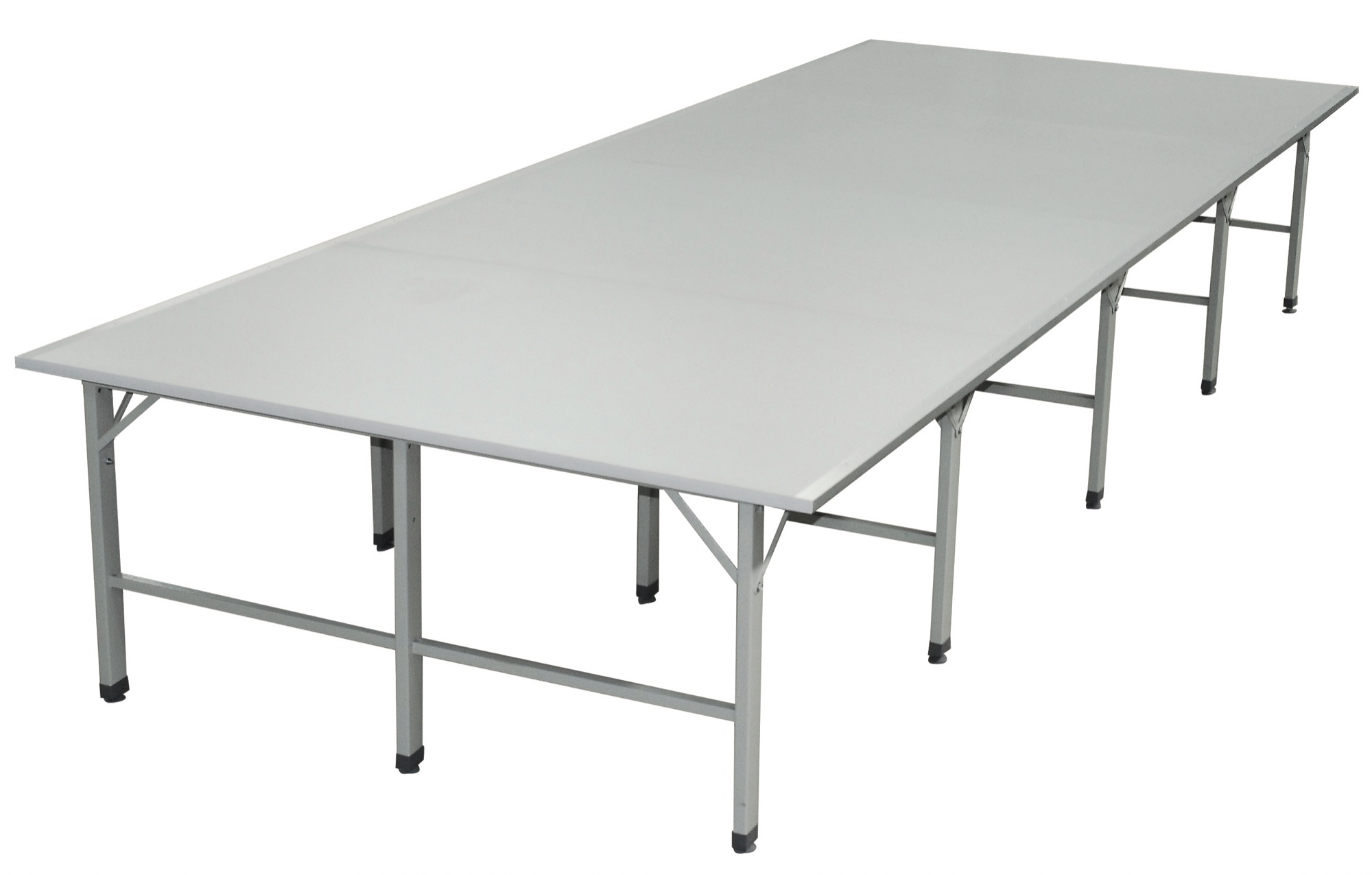

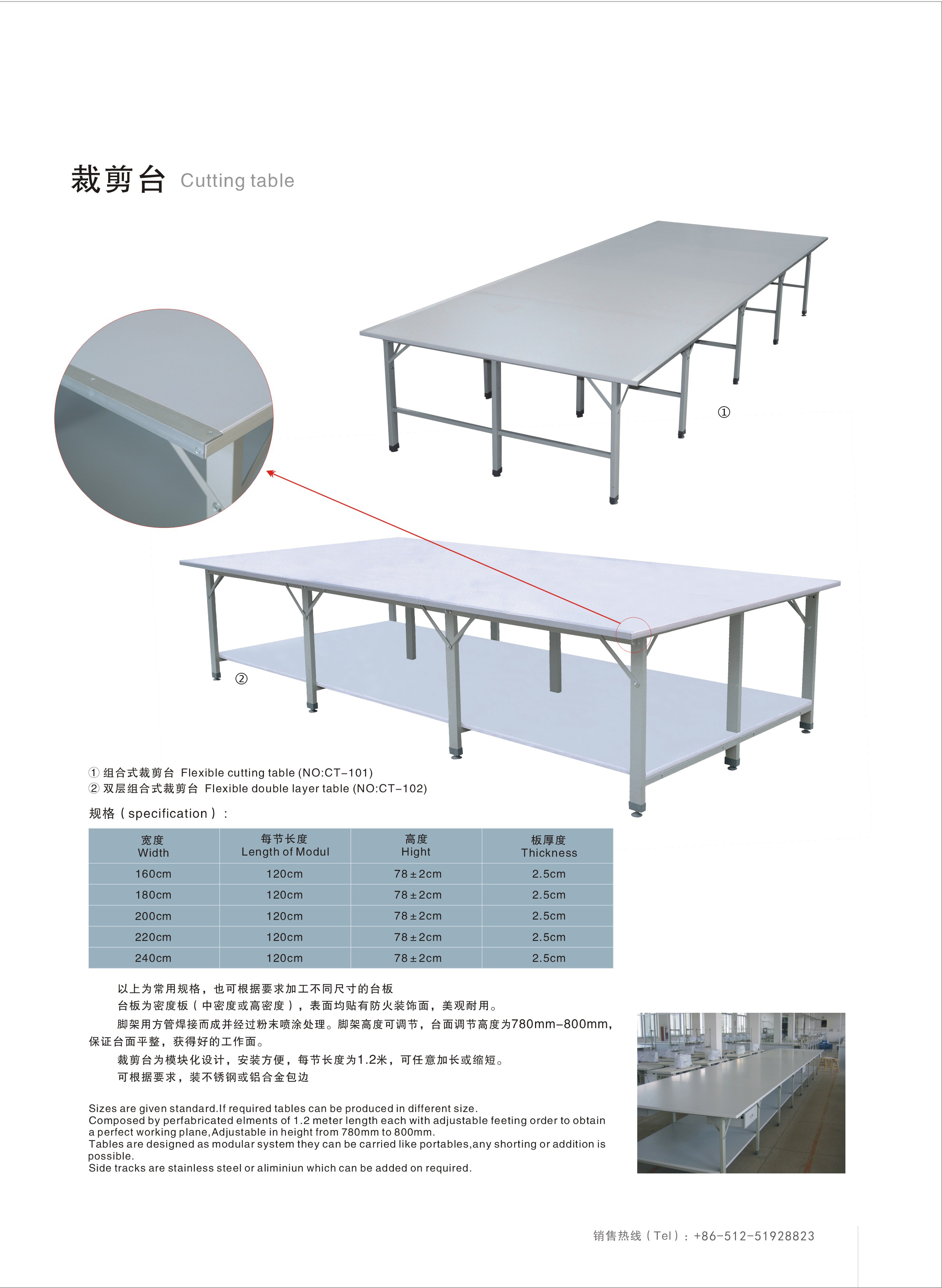

B.Middle Density Board Cutting Table JD-120S

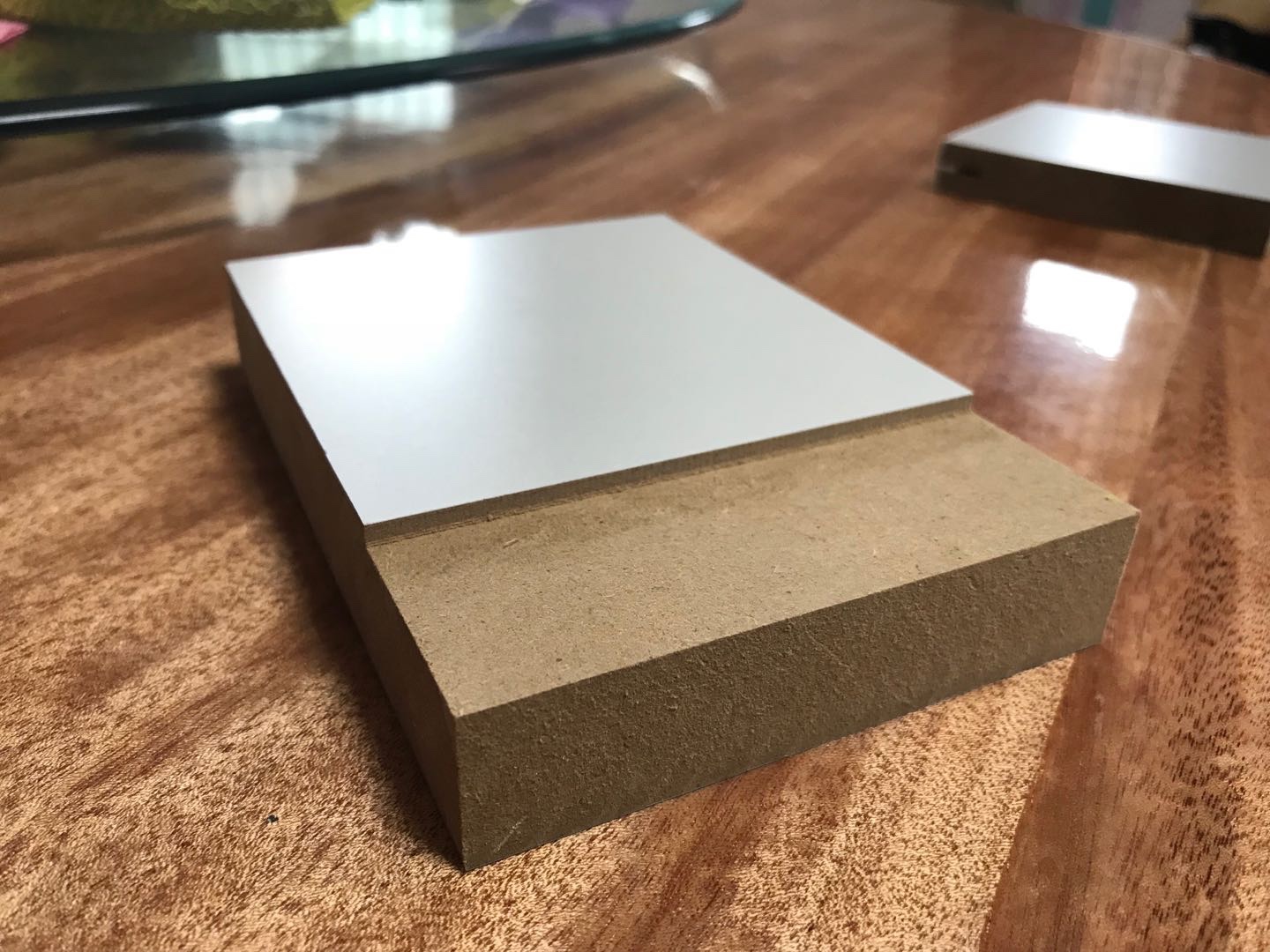

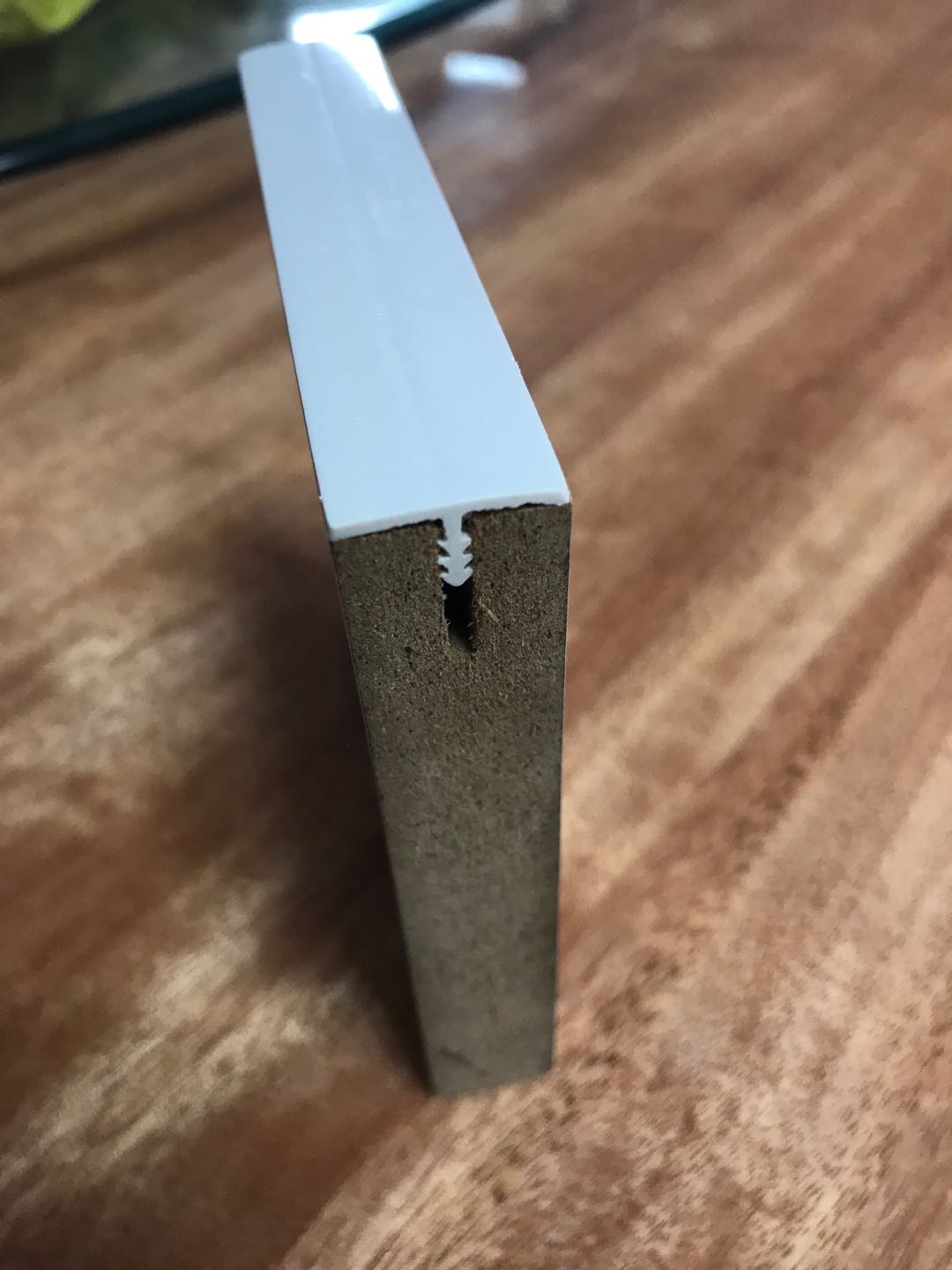

Application: suitable for simply fabric cutting machine install on it and using electric cutting machine to cut layer fabric, not suitable for heavy fabric spreading machine working on it .Can choose stainless steel cover edge and pic cover edge, can choose single layer table or double layer table , can choose white and navy green surface color, can custom-made width and height.
C.Supply service of custom-made of blowing, sucking, cutting table ,all kinds of table of garment industry .

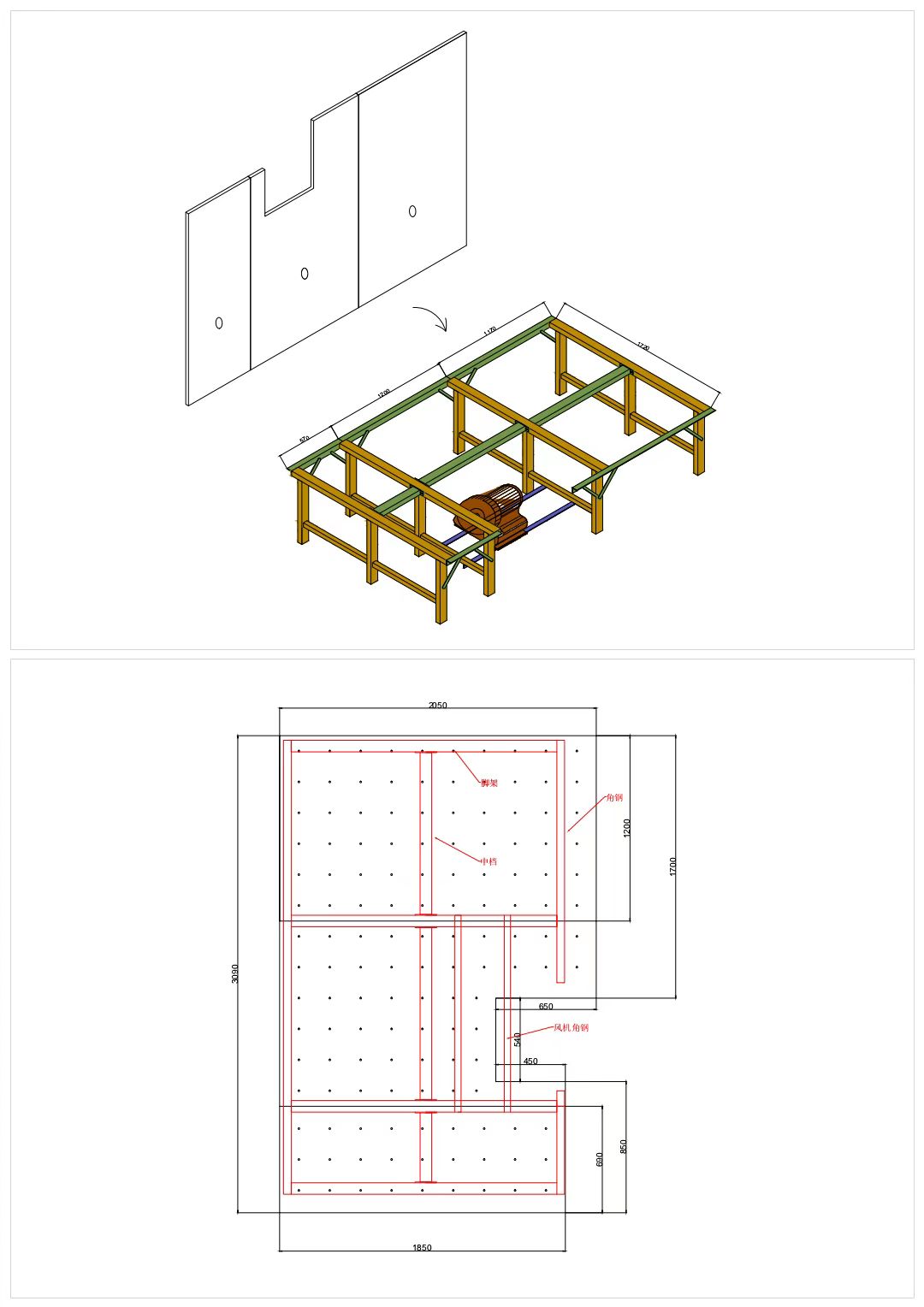

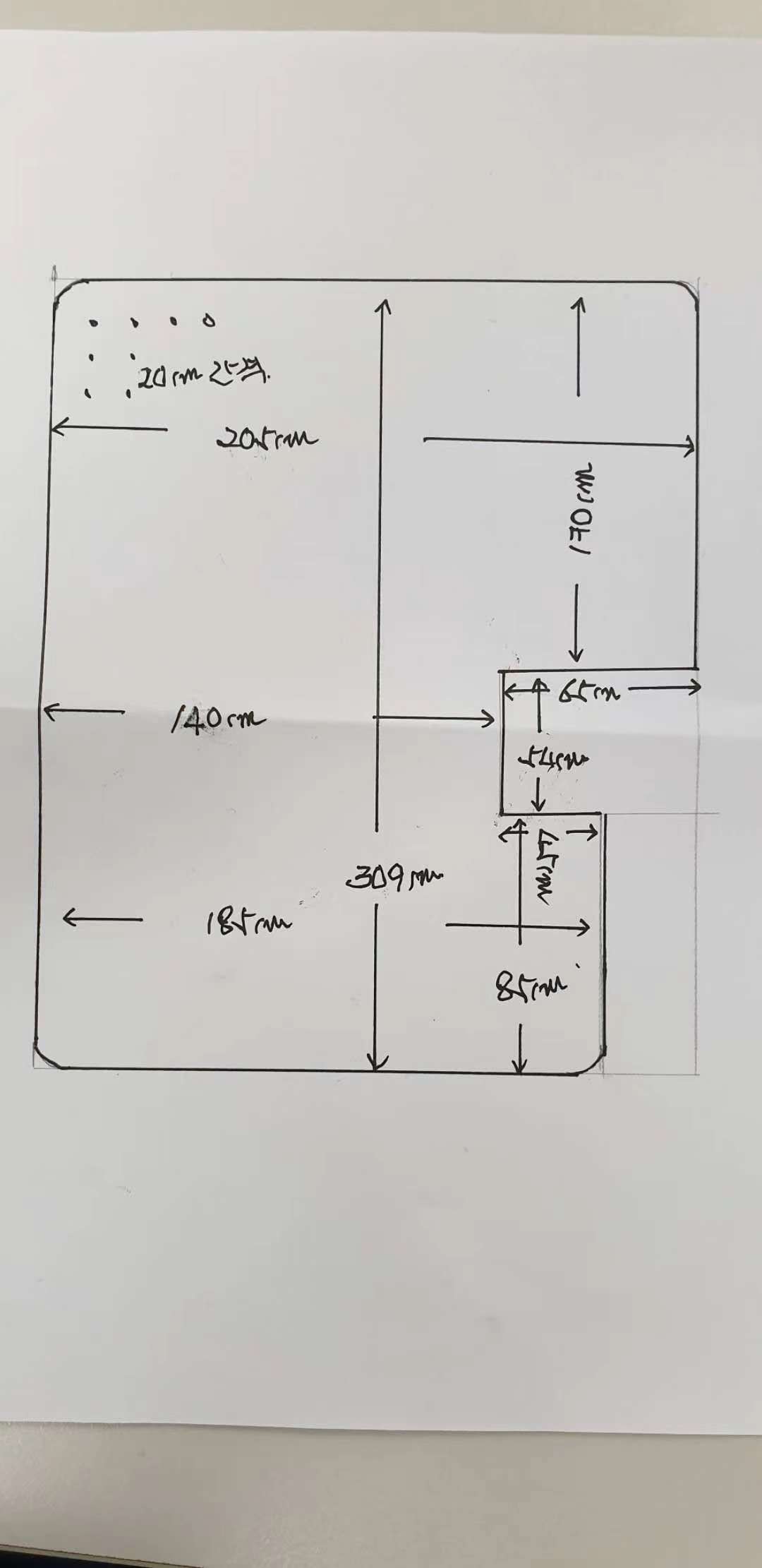

customer requirement :

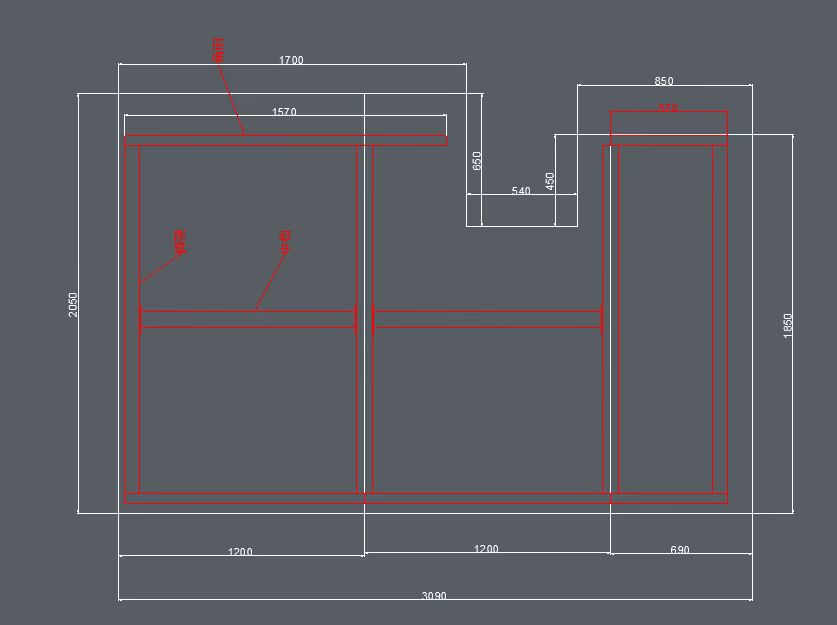

Production Department confirmation :
Production :

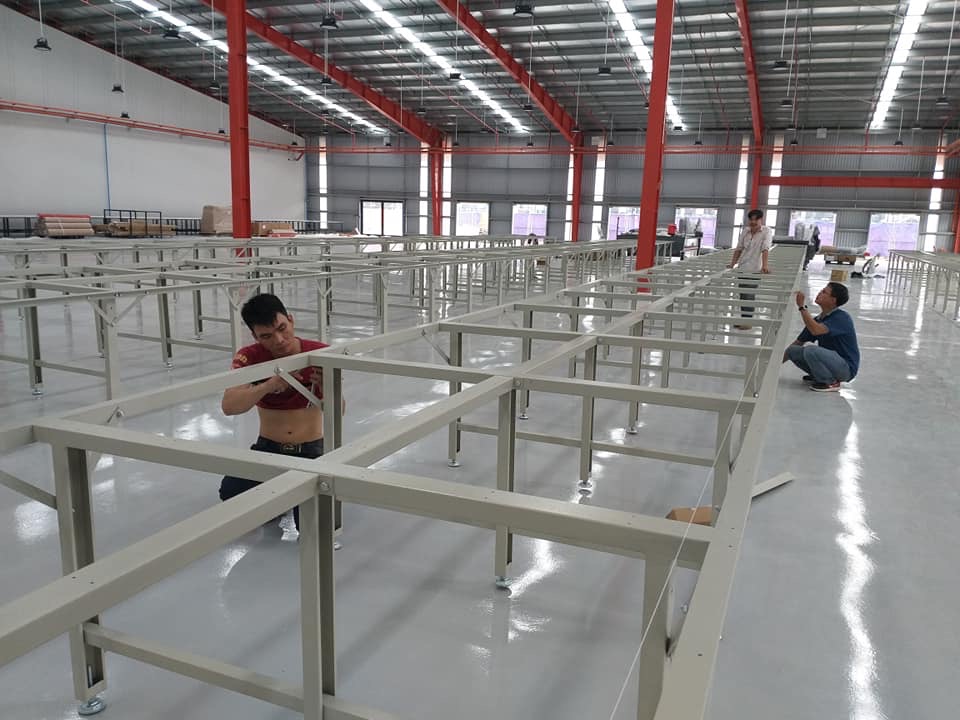

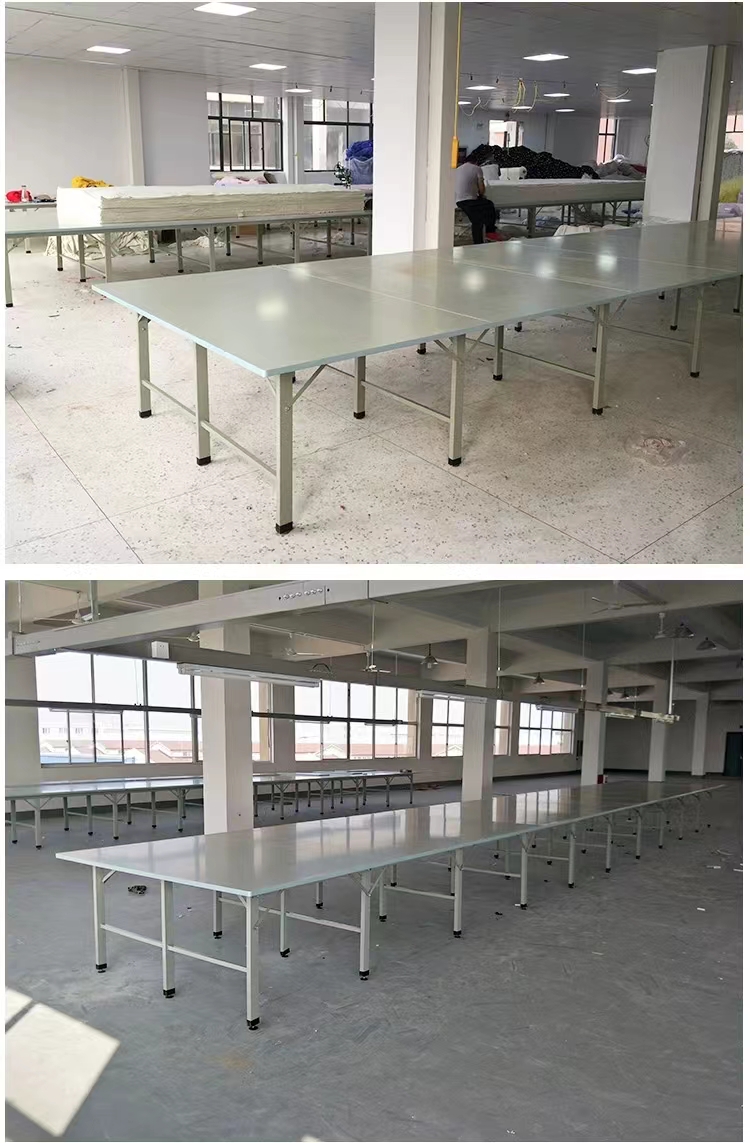

Customer Installation:
Where is your factory?
Our factory is locating at Changshu City. Manufacture name is Changshu zhongjie table factory, mainly support spreading table for oshima,gerbo,bullmer,yin,lectra famous company, also supply furniture for garment factory with stable production capacity, good reputation ,high quality, has been a leading enterprise in garment industry .
