Description
High Spot:

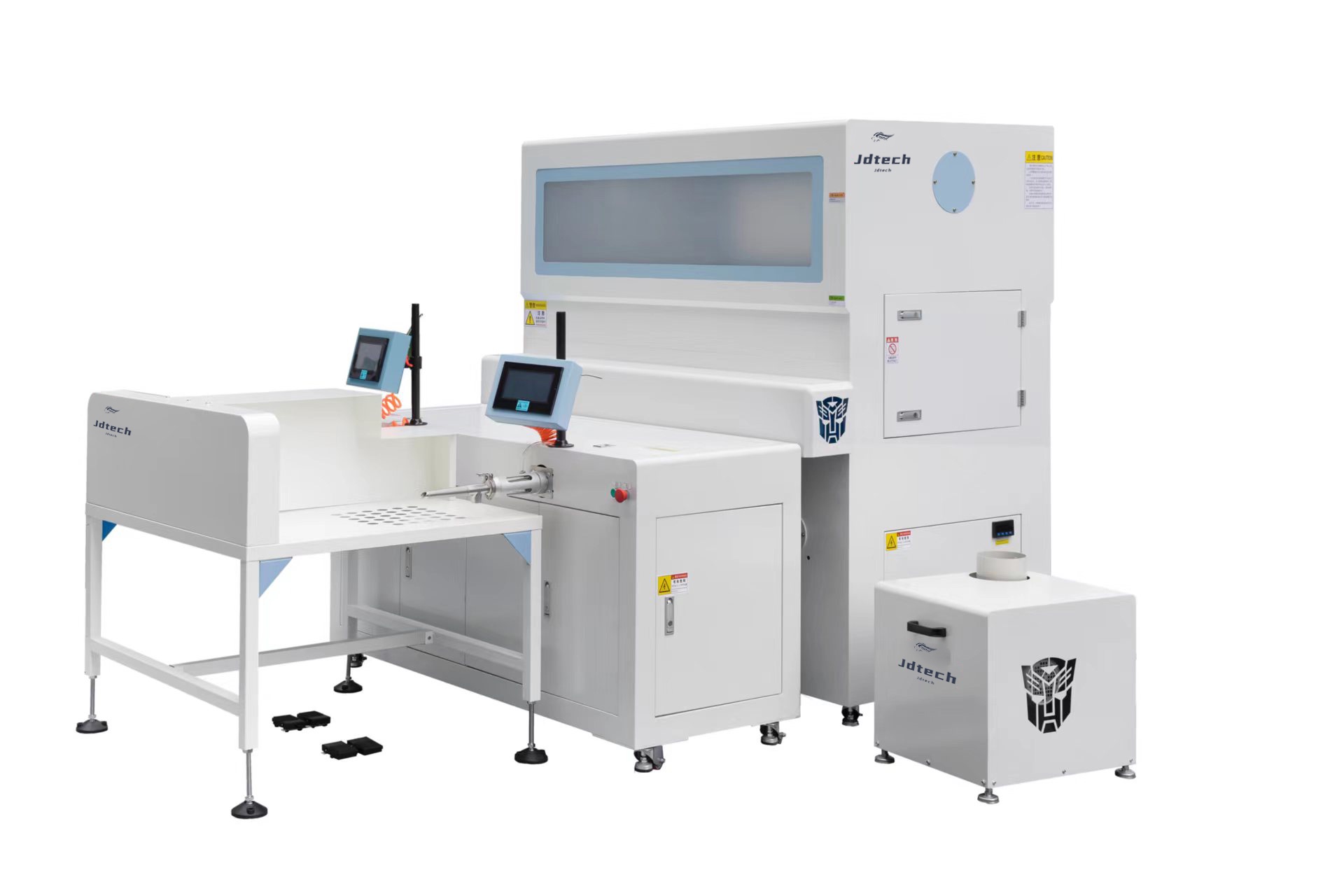

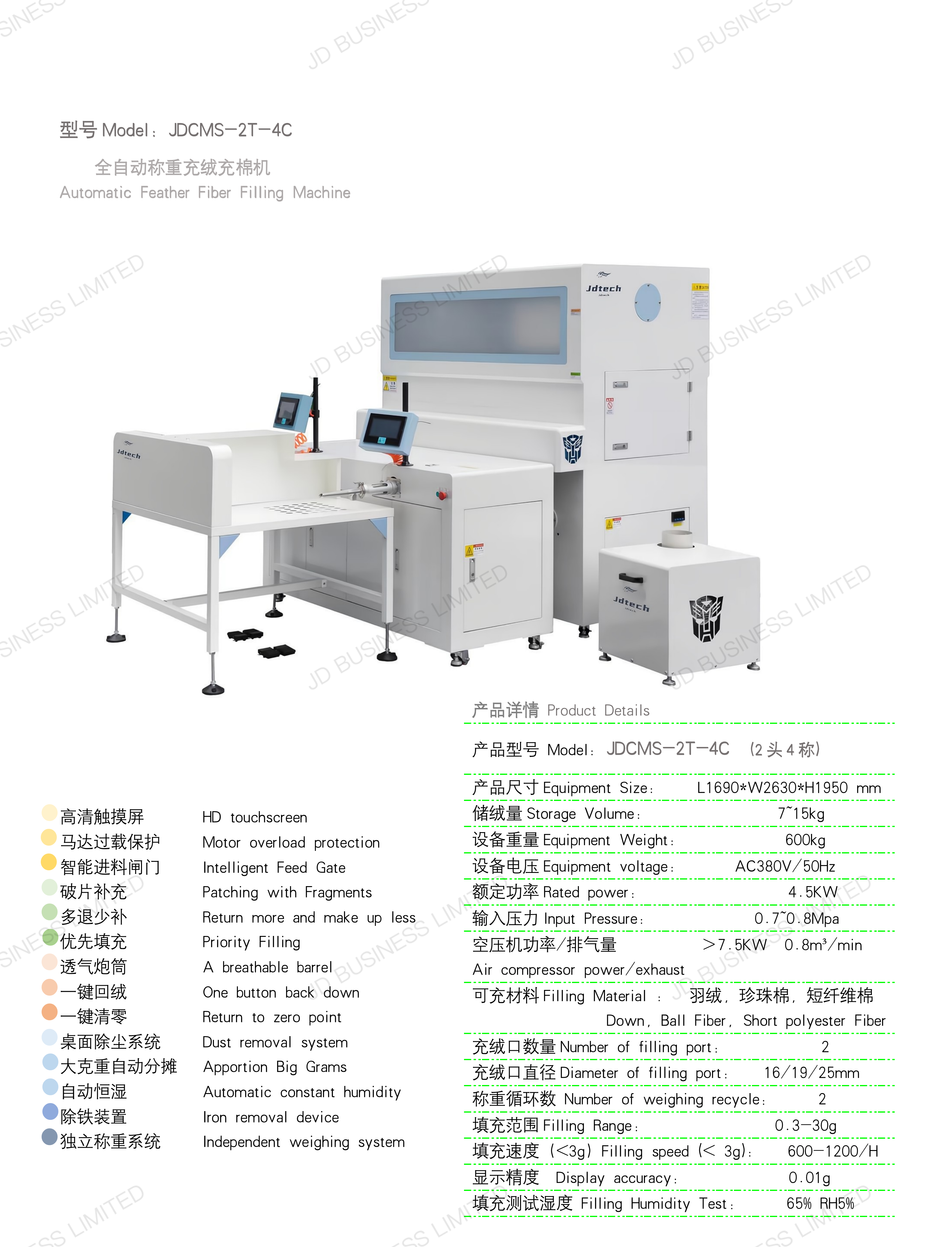

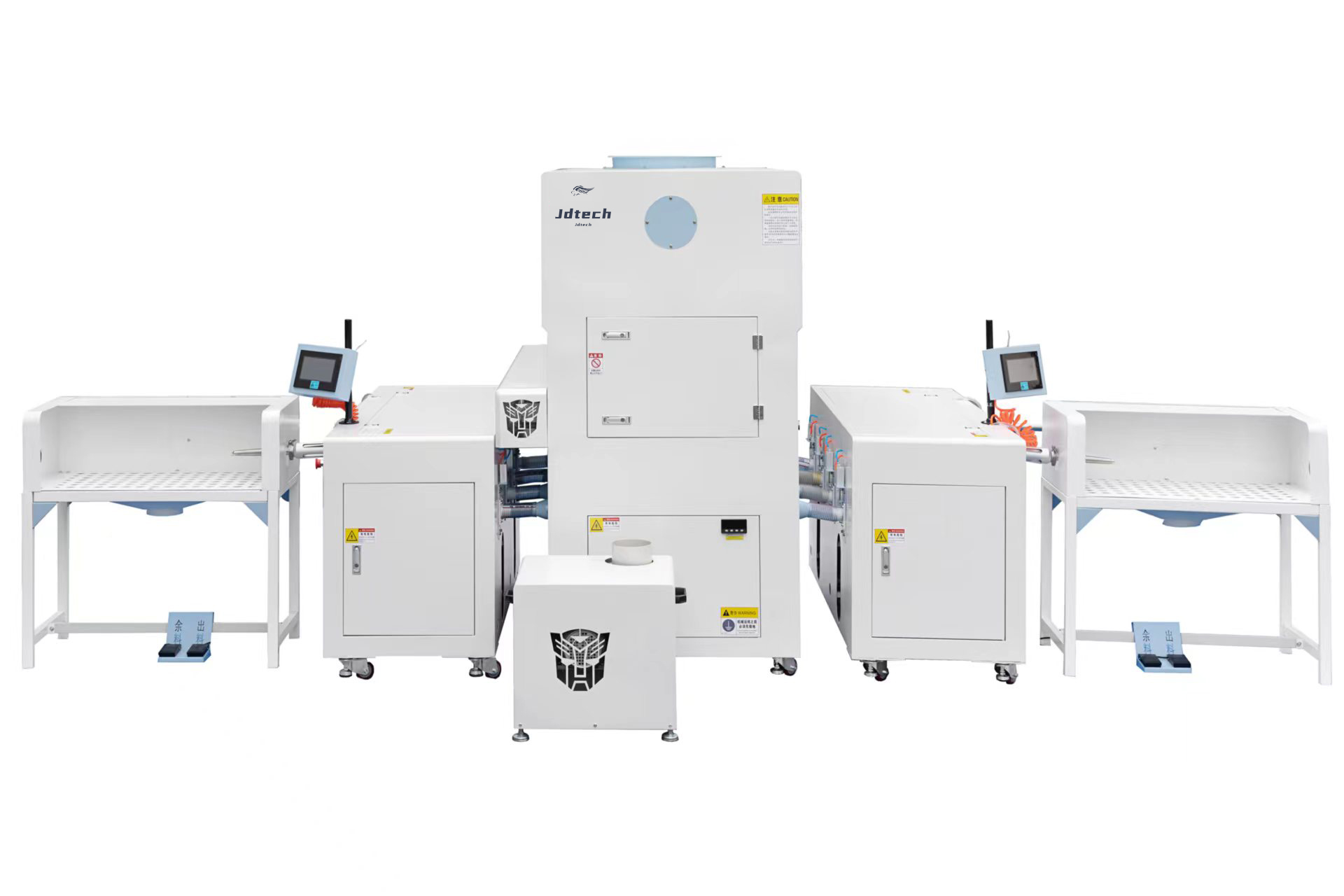

Professional small weight cotton jacket filling machine two working place 4 weighing scales, mainly filling range from 0.3g-30g each time. display accuracy can reach 0.01g, actual tolerance is 0.01g-0.9g each, suitable for high precision small weight filling . if need higher filling speed, machine can expand into 2 working places 8 weighing scales. refer below. And need to learn filling material go---Polyester Fiber
设备供气供电要求 Equipment Gas And Voltage Requirement :
1.气压要求供气量 0.8m³/min以上，供气压力不低于0.8Mpa。 若和其他设备共同用气，要求气管长度40米内，管道尺寸1英寸以上，需加净化器使进气无油无水。如独立供气，建议使用7.5KW以上高压气泵或者空压机，并配置1m³储气罐（会延长空压机的使用寿命）。
The gas pressure is required to supply more than 0.8m³/min air flow, and the gas supply pressure is not less than 0.8mpa.
If using gas with other equipment, it is required the length of the gas pipe is within 40 meters and the pipe size is more than 1 inch, a purifier should be added to make the inlet gas free of oil and water.
For independent gas supply, it is recommended to use a high pressure air pump or air compressor above 7.5KW, and configure a 1M³gas storage tank (which will prolong the service life of the air compressor).
2.电压要求线路负载功率可承载4.5KW以上电压为AC380V/50HZ。机器通电前需检查地线是否连接。
Voltage require electricity line load power can bear more than 4.5KW and the voltage is AC380V/50HZ. Do checking whether the ground wire is connected well before the machine is powered on.
