Description

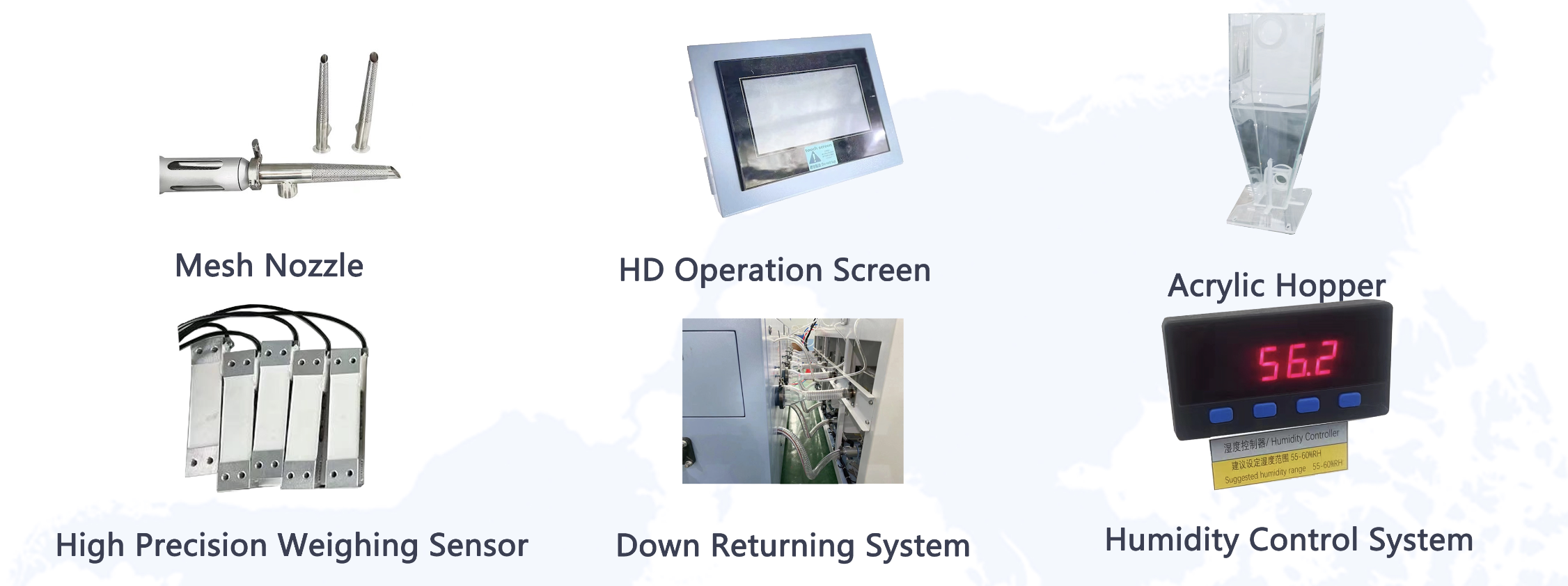

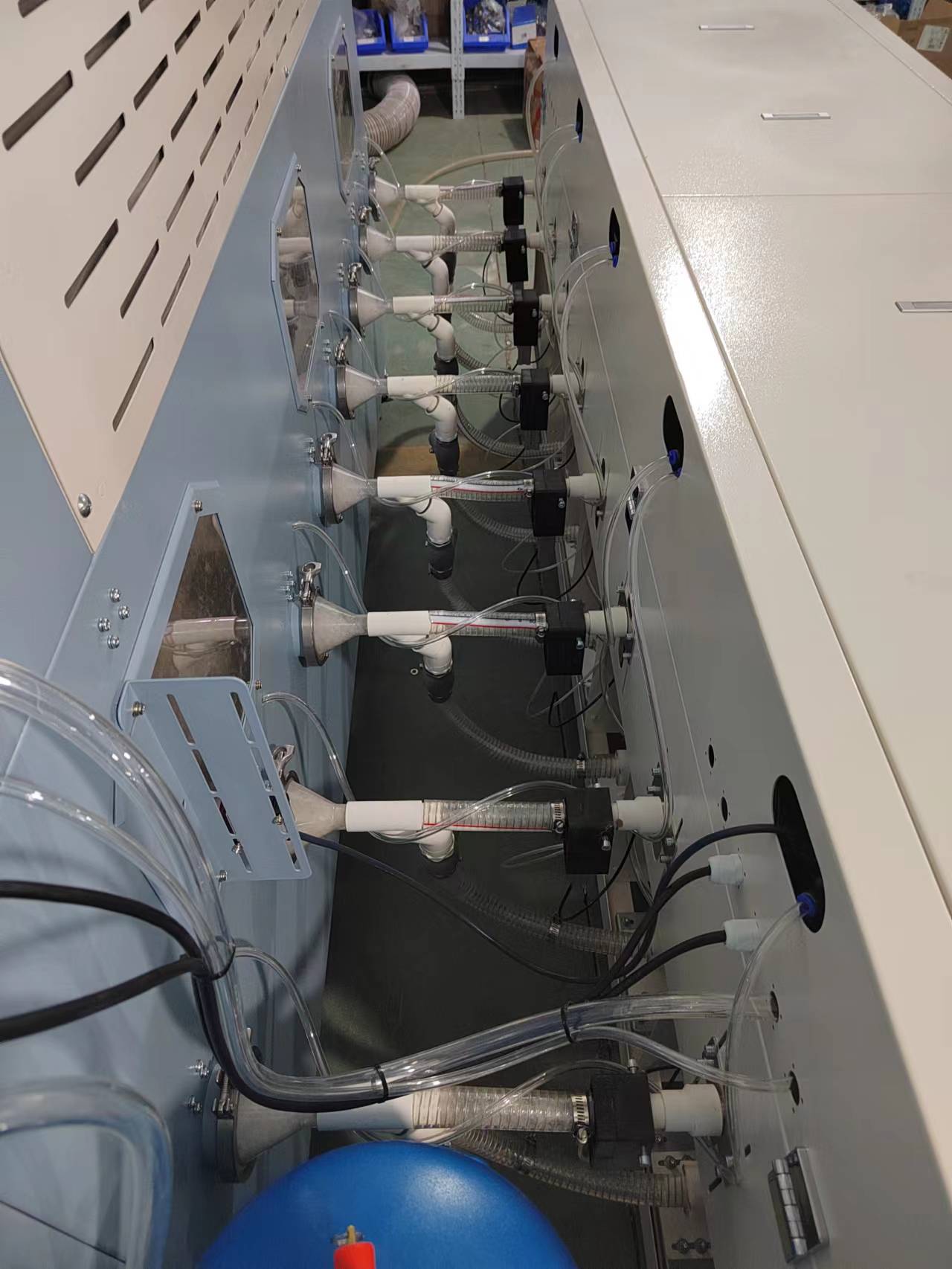

Parts Showing

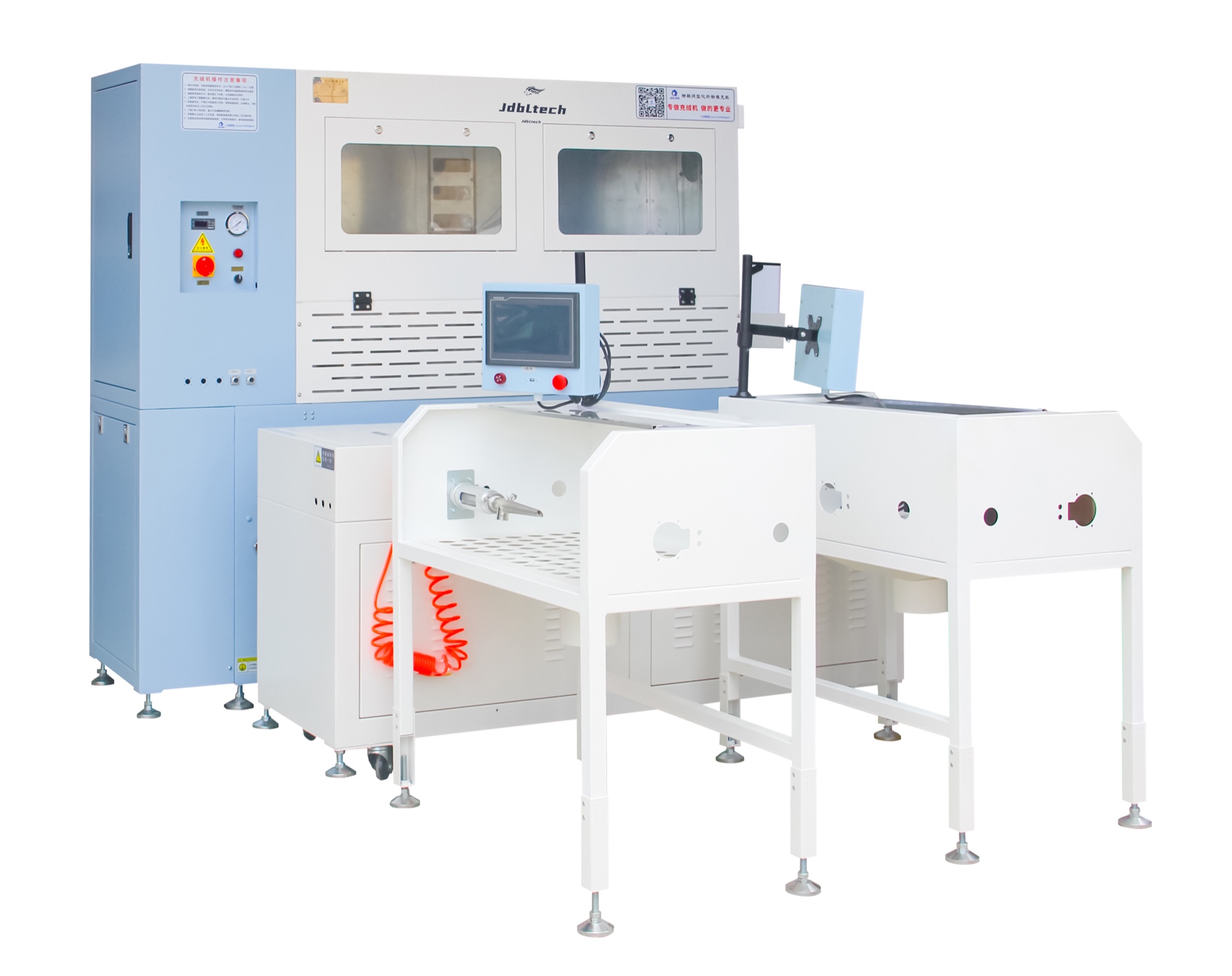

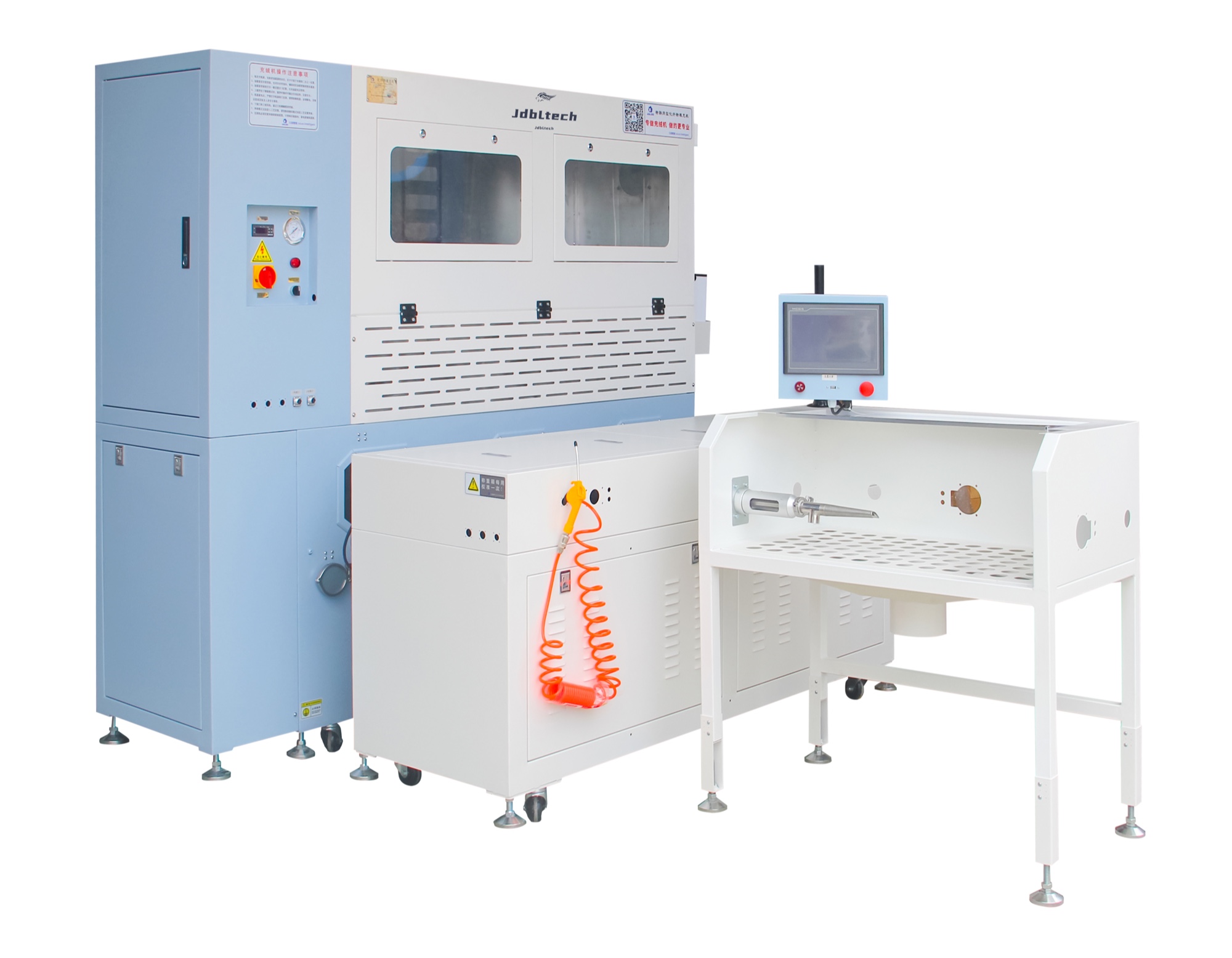

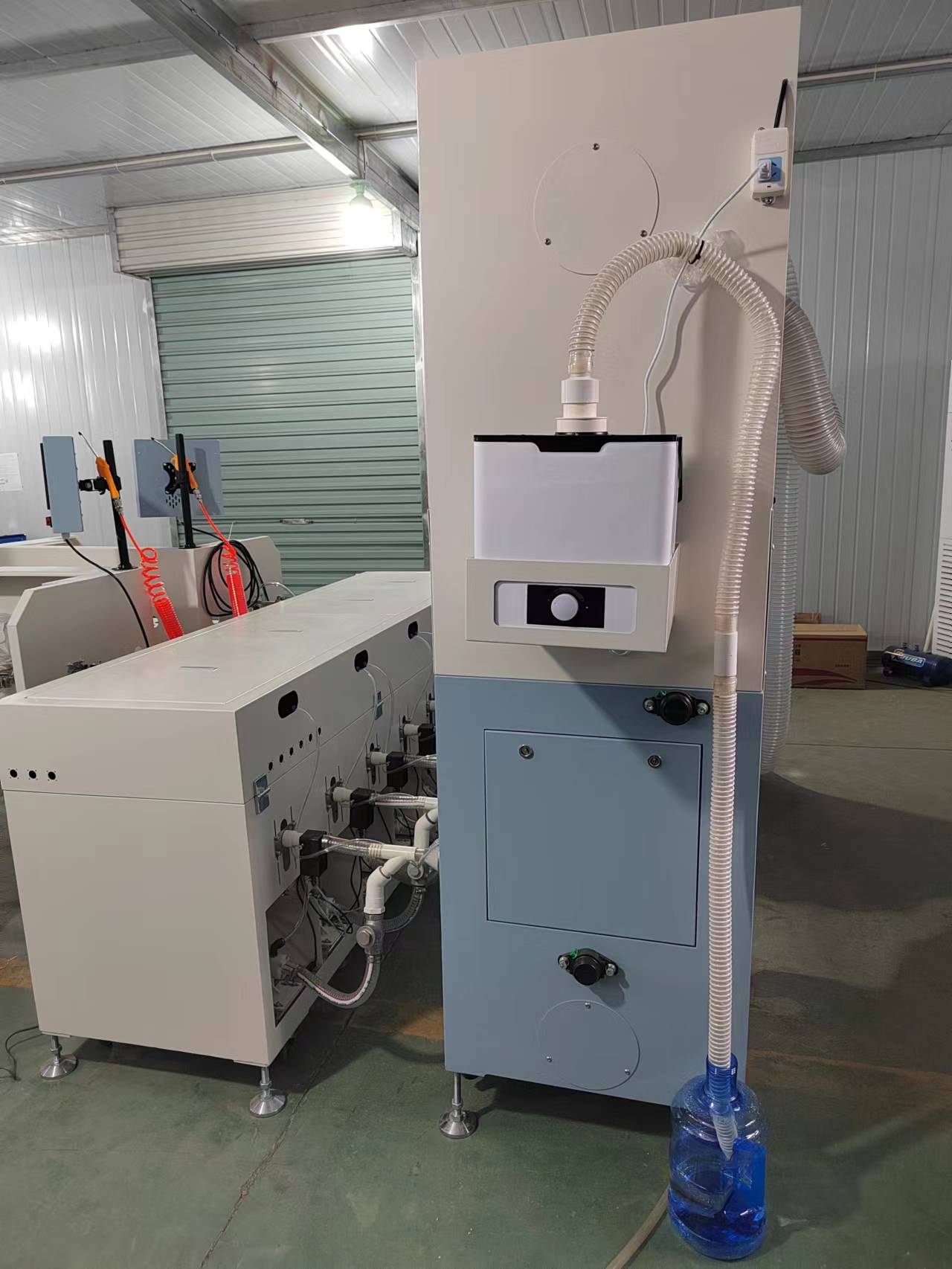

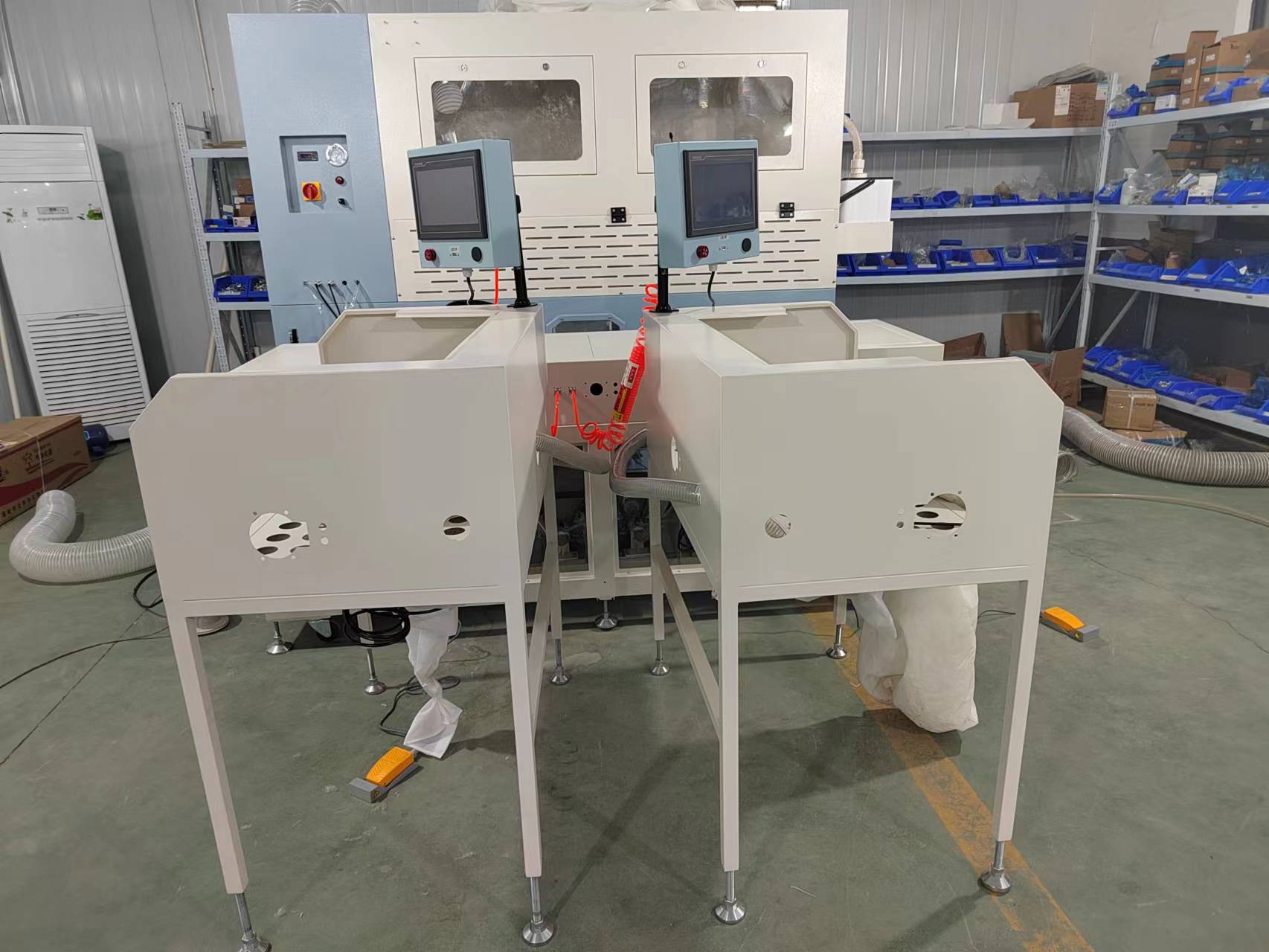

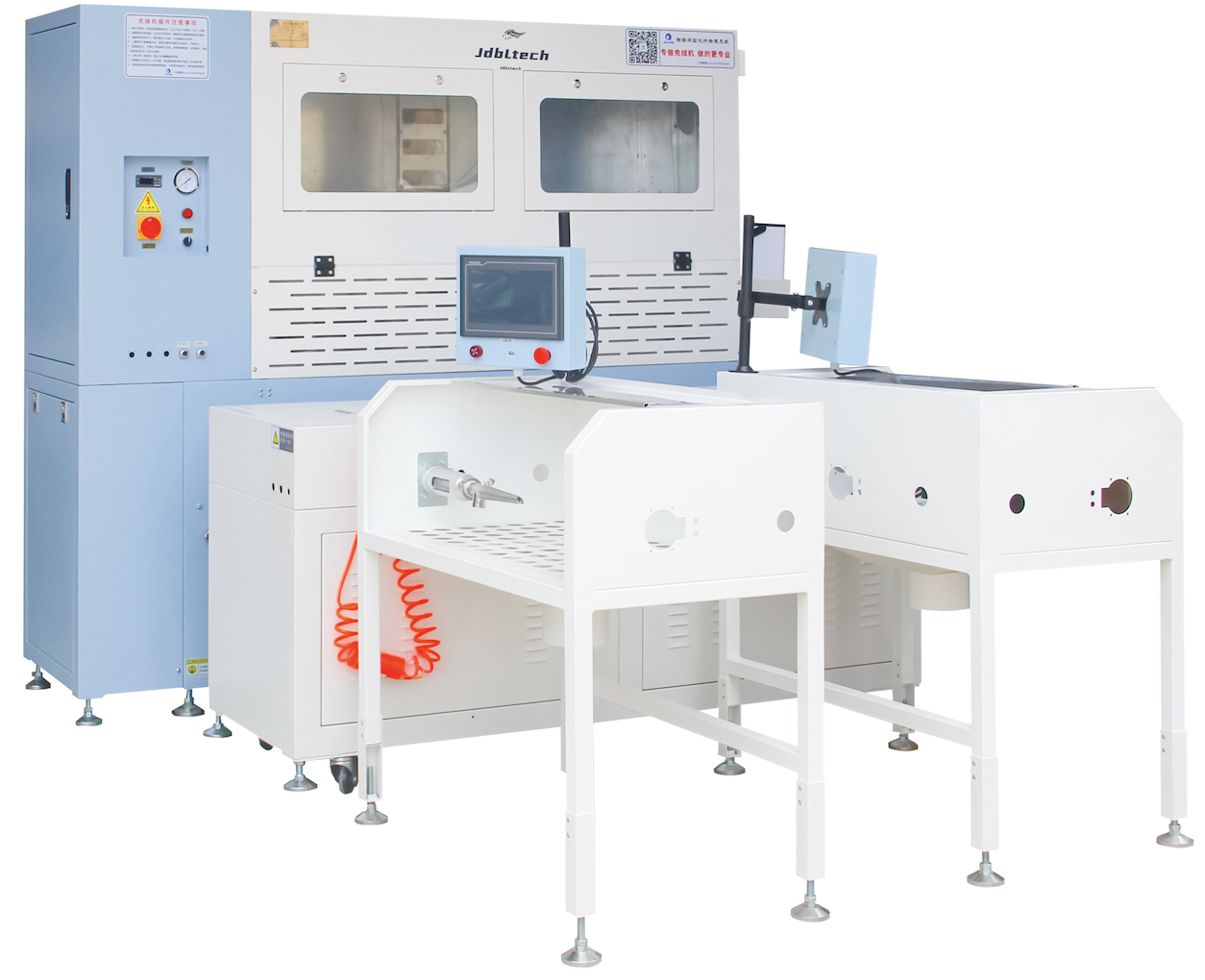

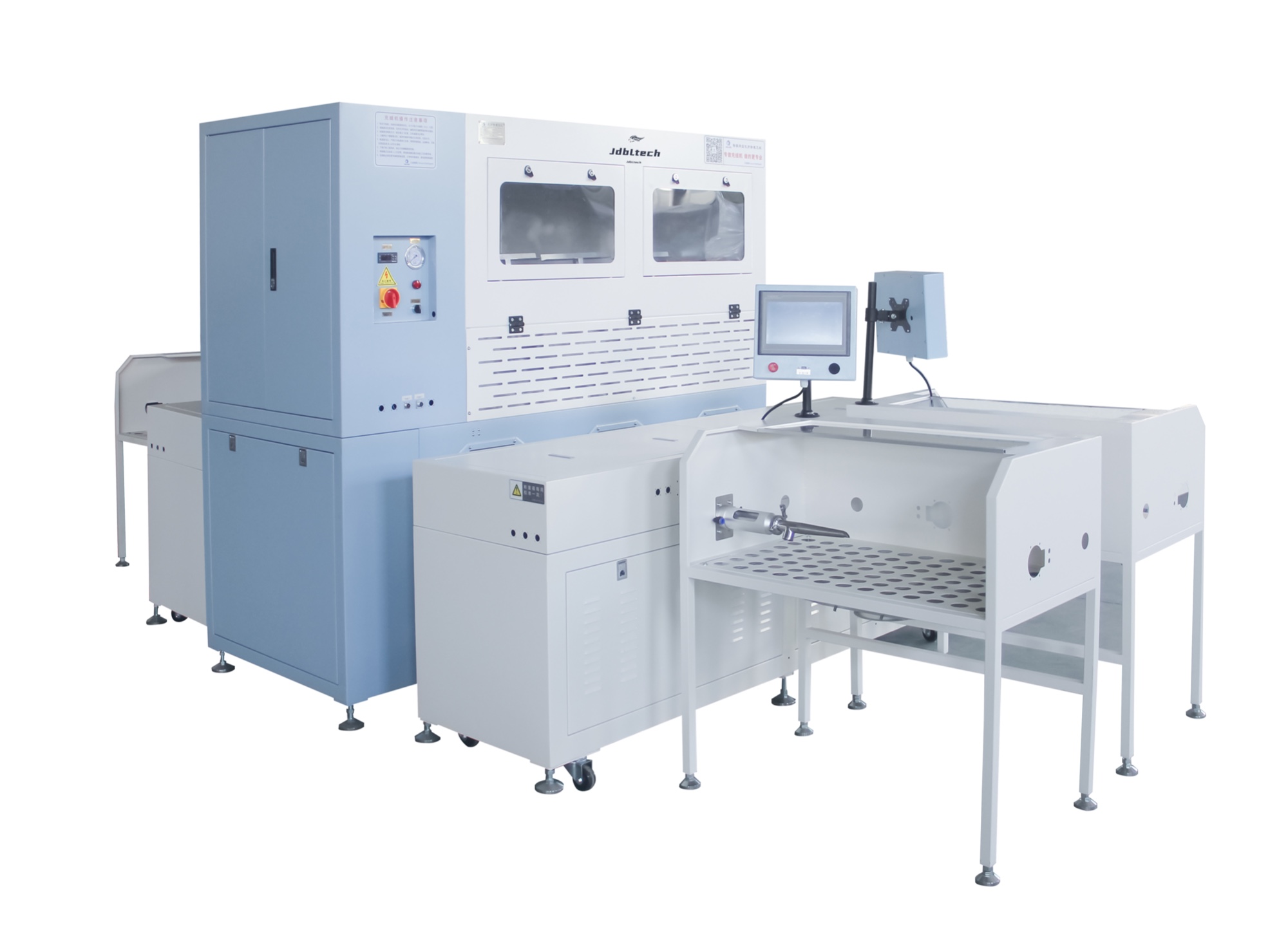

Demo Machine 9584RM20

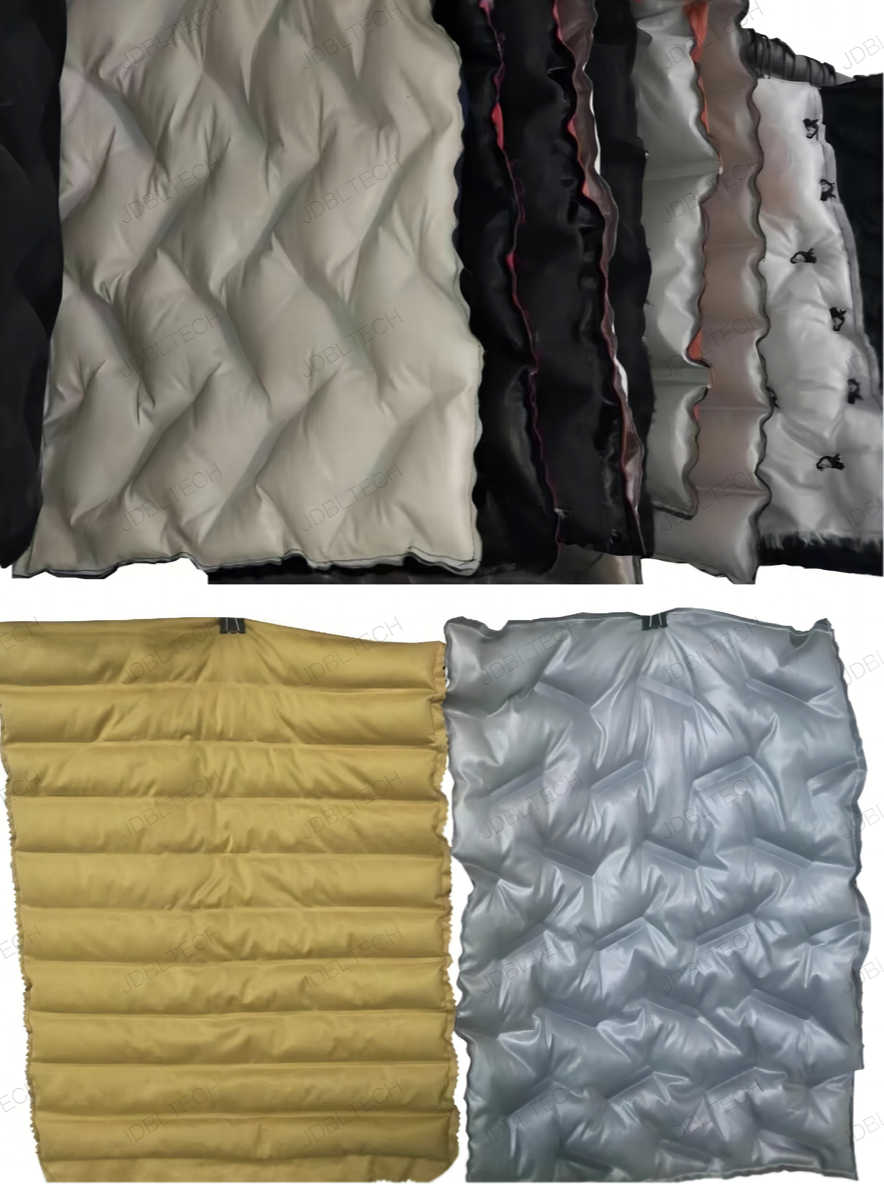

Half-finished Product Filling cutting Piece of Down Jacket
Special Advantages :

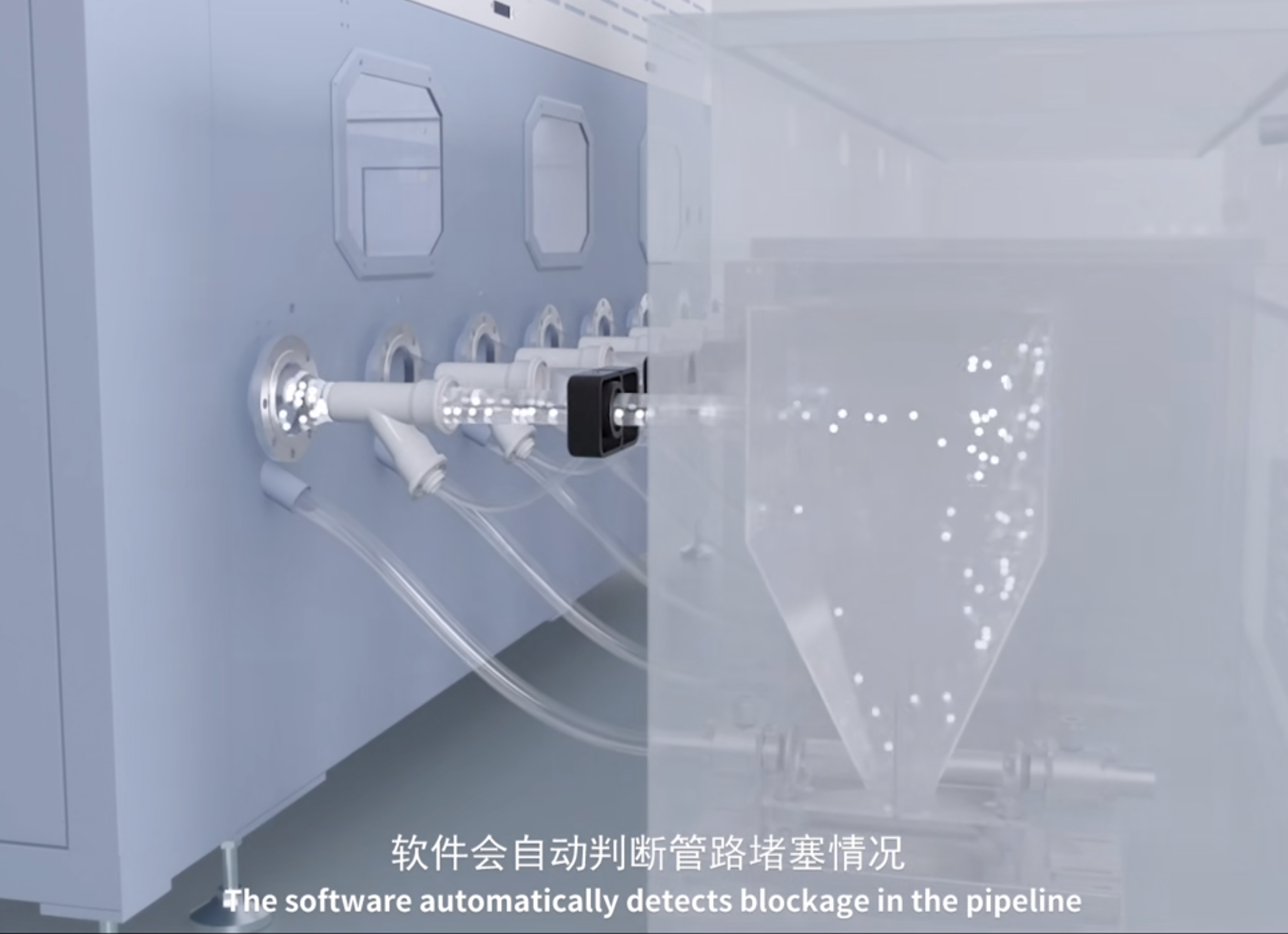

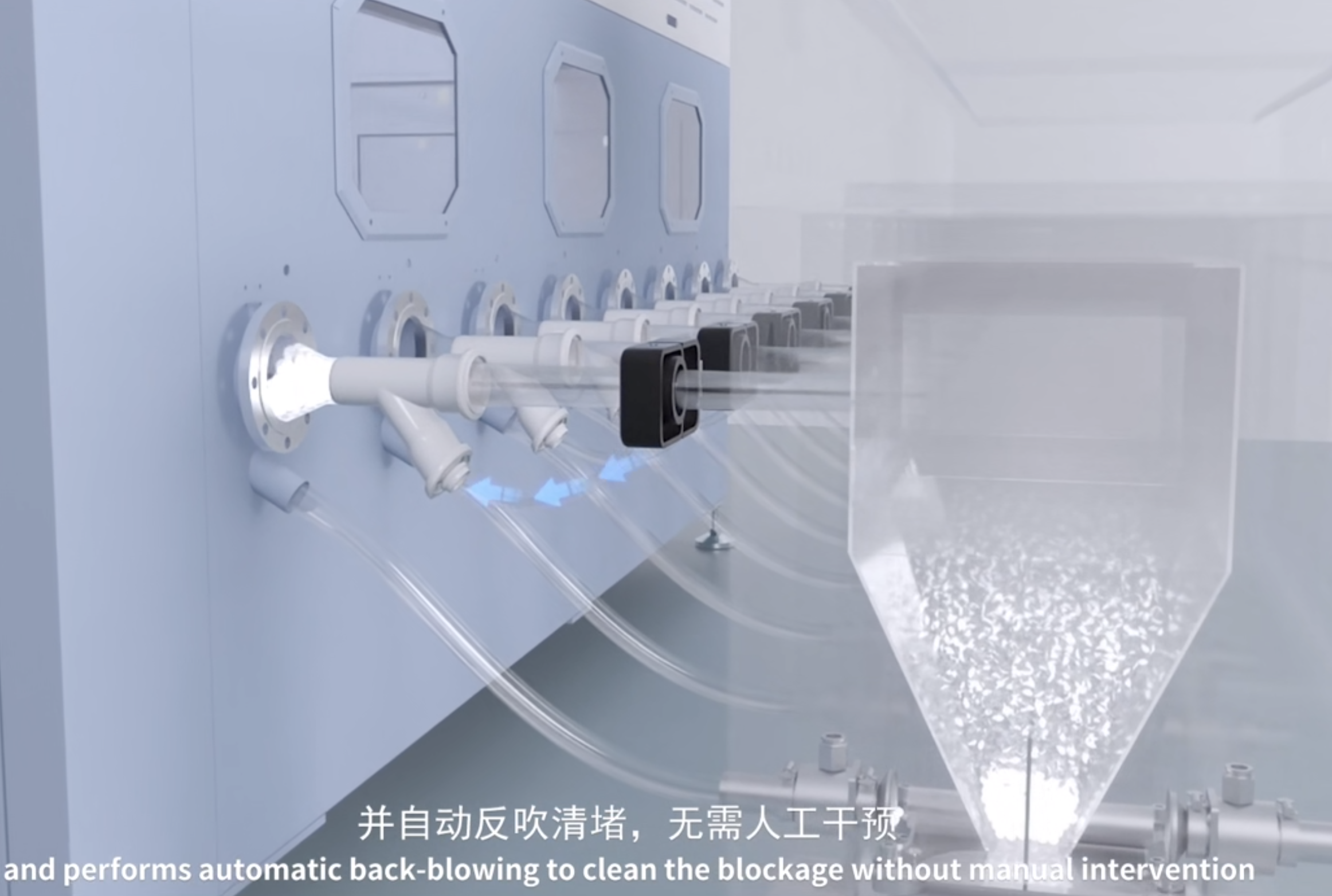

A.Software can automatically judge the pipe blocking situation, if happened ,the automatic blocking clearance function will start to blow the air into the silo feeding connection position.

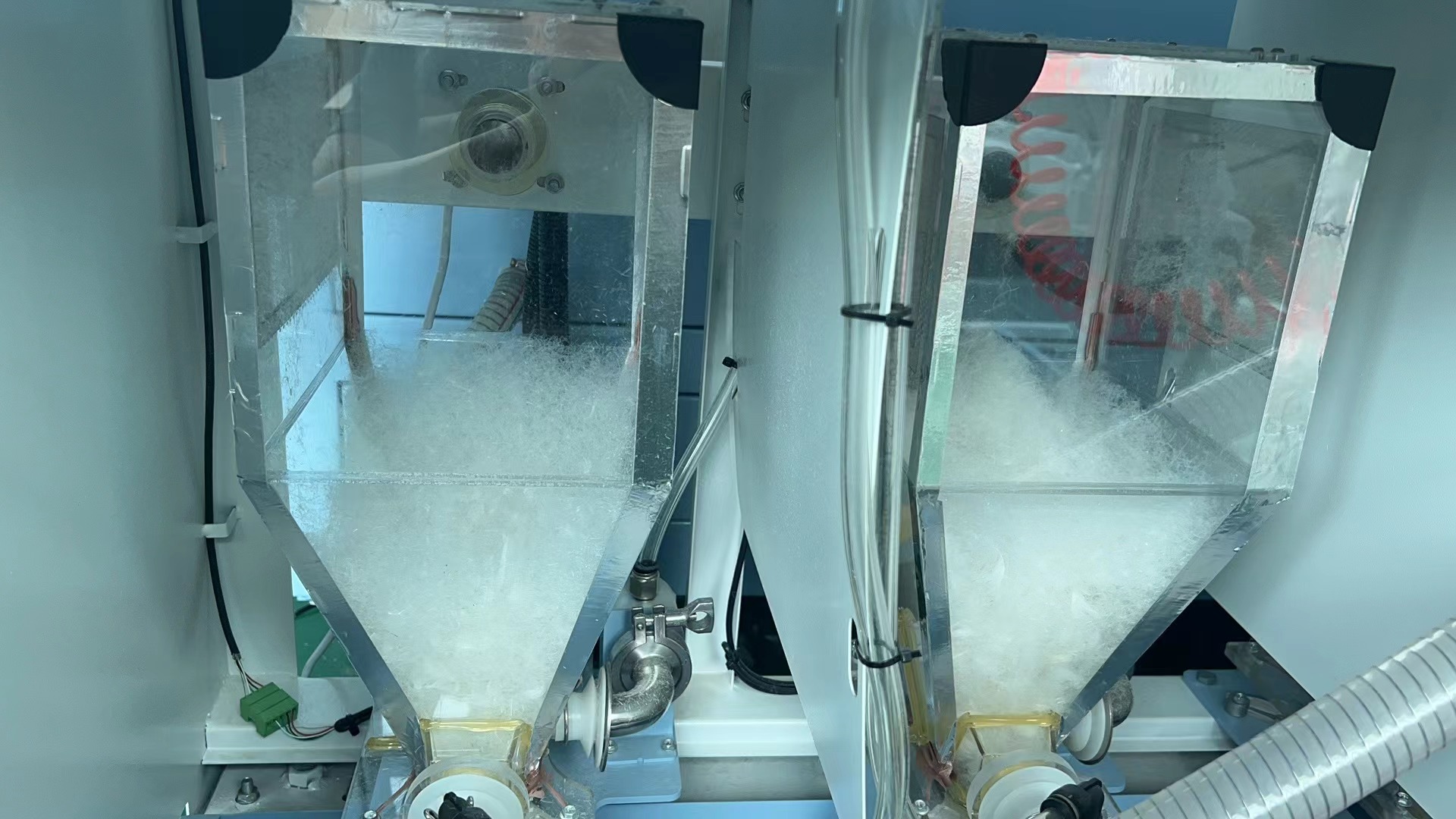

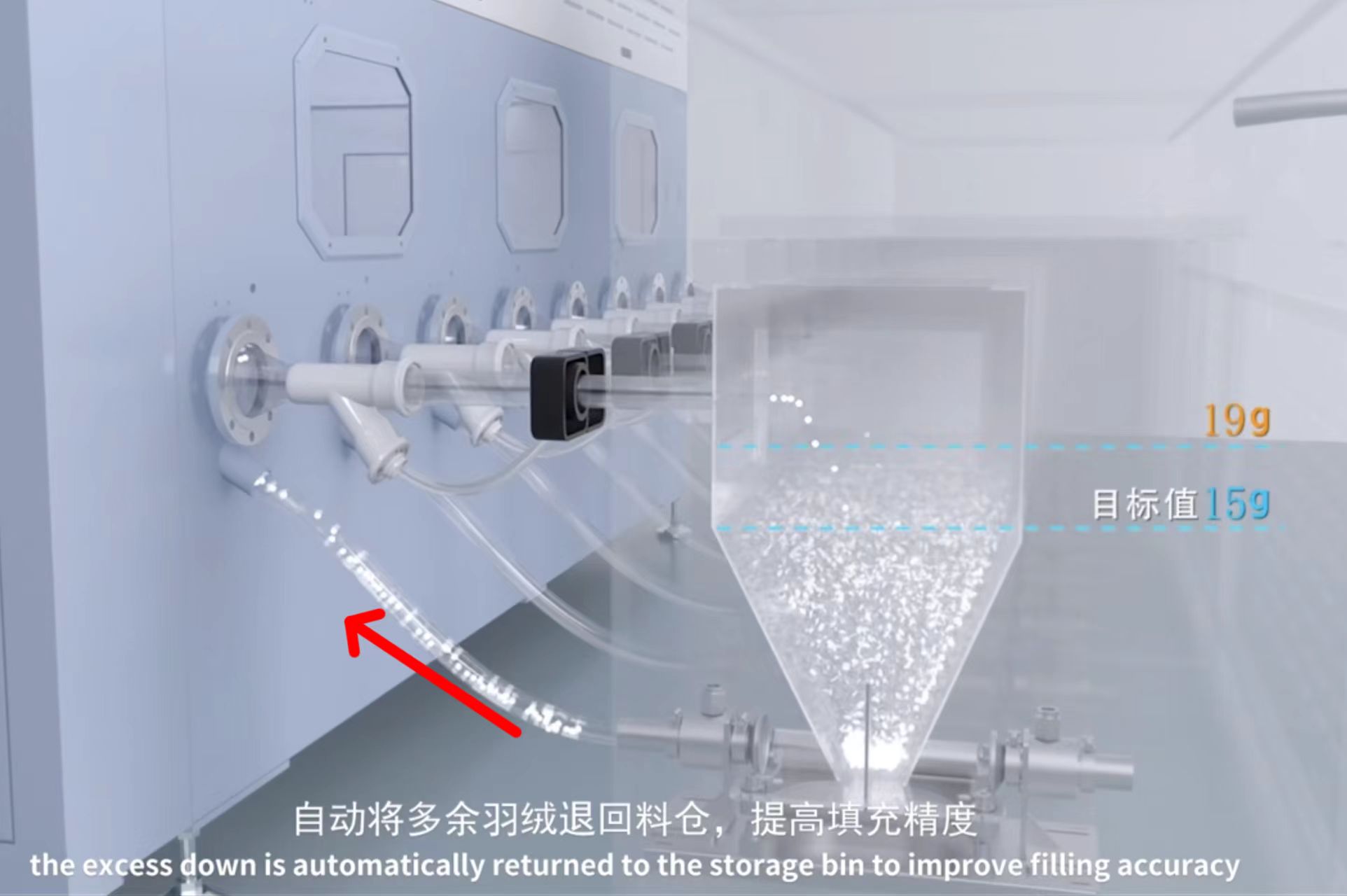

B. Automatic superfluous material returning function , once the feeding material weight exceed the target value in the hopper, the superfluous material will return back to silo by pipe, increase the precision automatically.

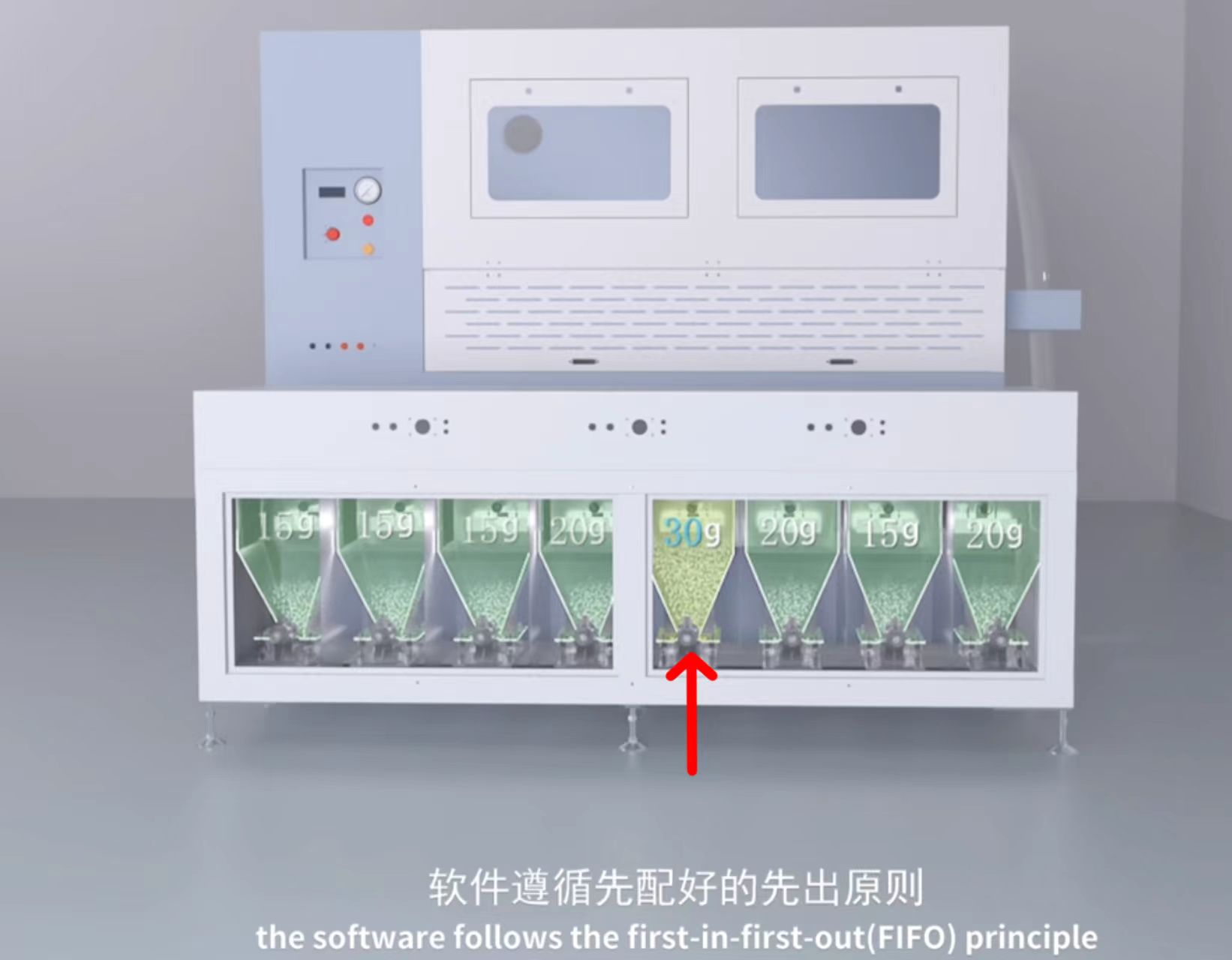

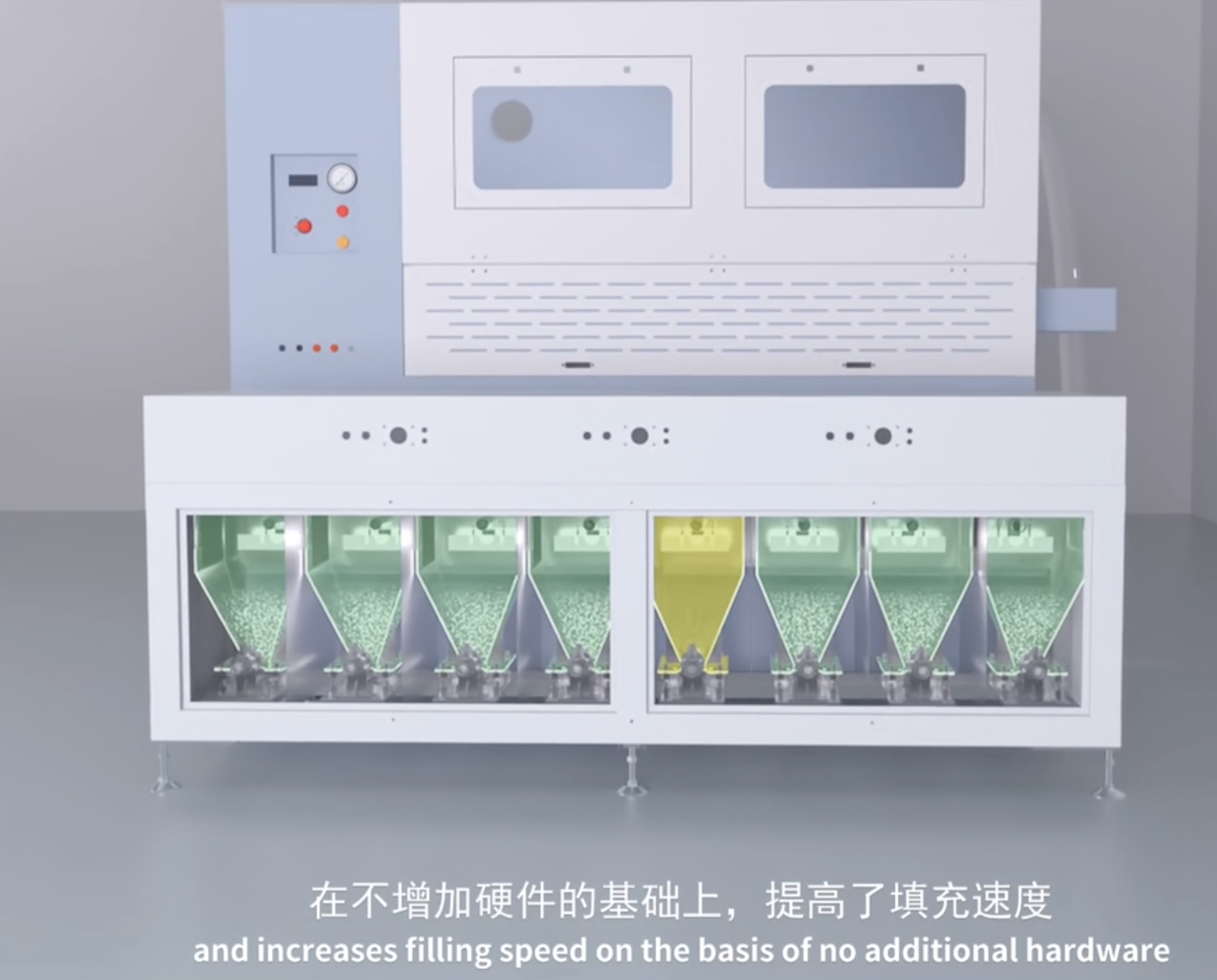

C. Priority Filling function, when all target value are same , the filling order follow the rules which one is the first to meet the target weight, then fill out which hopper, not abide by the order, this function can increase the speed very rapidly.
FAQ:
You should read the details of this machine carefully, it is able to help you to choose right machine model:
The standard whole machine includes : store and mixing main machine 1 set+weighing machine 1 -2set+ operation desk 1 - 4 sets + blue gas storage tank 1-2 pcs + loading material pipe 5m+ humidifier 1 set
1. Silo: Max store 15kgs-30kgs material. Minimum Loading 2Kg -4kgs material to work.
2. Can choose machine which has one / two /four filling nozzles match from 3 to 24 weighing scales according to realistic production needs and cost budget ; Max filling weight 320g single time, Minimum filling weight 0.2g every single time. Mainstream popular product by garment factory is 1 filling nozzle 4 scales, 2 filling nozzles 8 scales and 4 filling nozzles 16 scales.
3. Machine size : L×W×H / 2.3×0.6×2M, need buyer's factory door width > 0.6m, height>2m.
4. Packing dimension : 2.5×2×2.2M/550kgs
5. Filling Nozzle diameter: 19/25mm, meet most of fabric filling hole.
6. Filling speed: 5-16g/second
Choose machine model according to production capacity ---test under filling 5g down per time :
9584RM10--- fill 1680 holes per hour( 1 filling working station)Recommend
9586RM10--- fill 2520 holes per hour( 1 filling working station)Recommend
9583RM20+ --- fill 2940 holes per hour( 2 filling working stations)Recommend
9584RM20----fill 3360 holes per hour( 2 filling working stations) Recommend
9584RM22----fill 6720 holes per hour( 4 filling working stations)Recommend
7. Tolerance: under 2% control of total weight on production.
8.Voltage: 220V/50HZ single phase
9. Required air compressor : 7.5KW for one pcs. If more in the future suggest 15KW for 3 pcs filling machine.

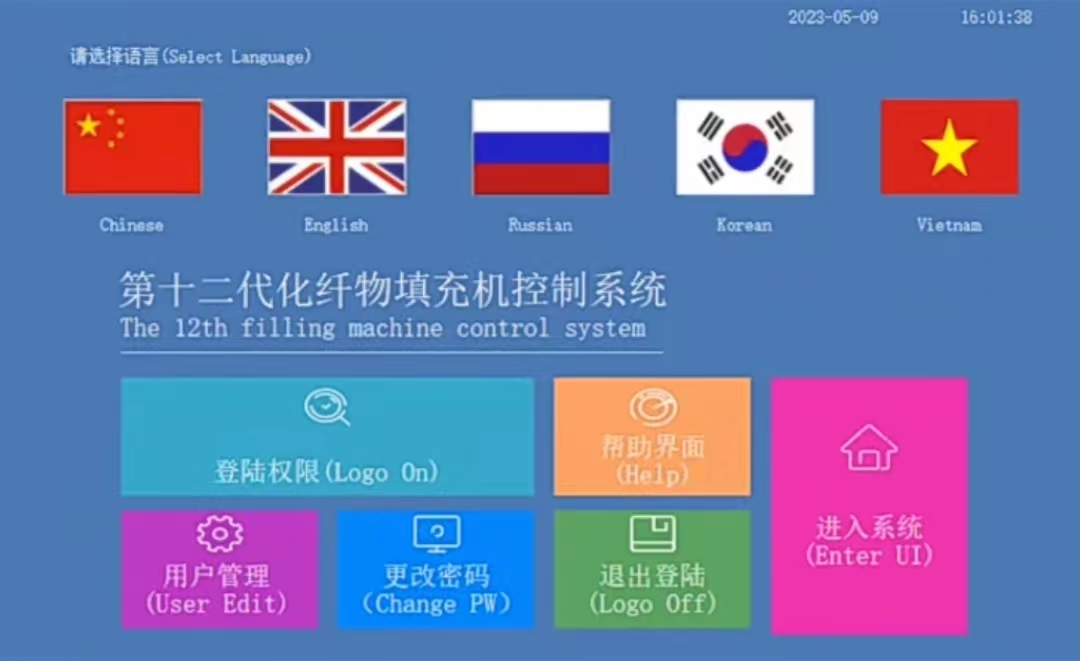

10. Accepting custom-made machine，including voltage/ frequency /special function/operation language. Operation system is extremely steady, no worry about the system crashing compare to other supplier.
Optional system :
1.Ultrasonic sealing hole machine（Filling and sealing at the same time） pls refer video : https://youtu.be/1tOwMp-LWFQ
