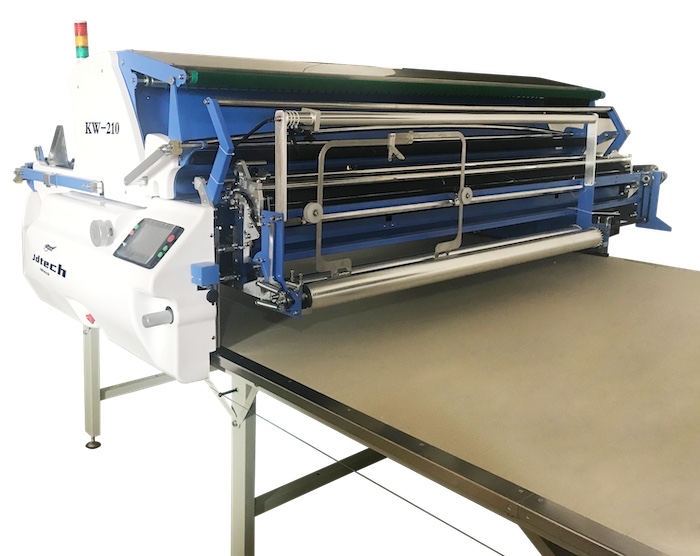

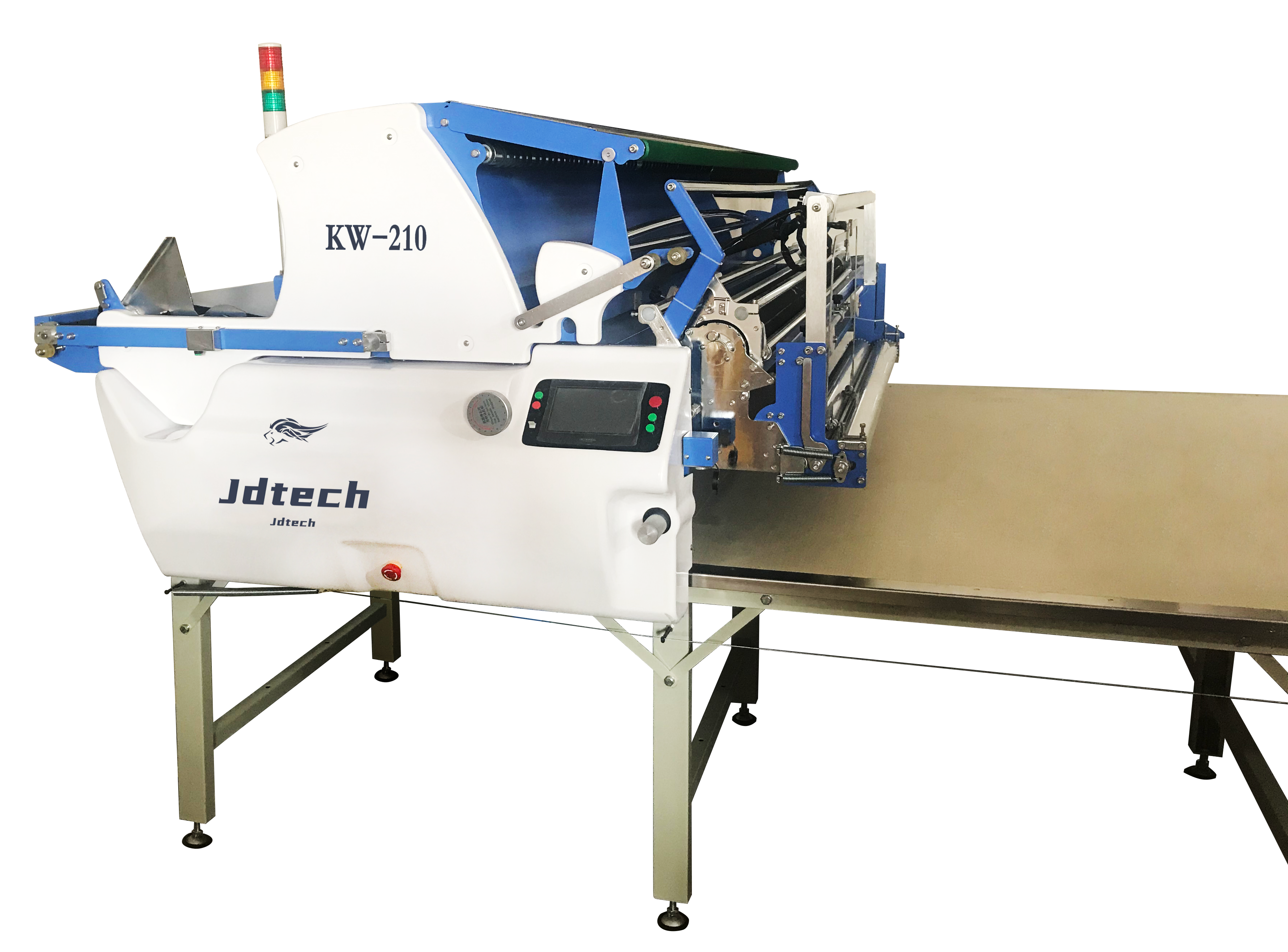

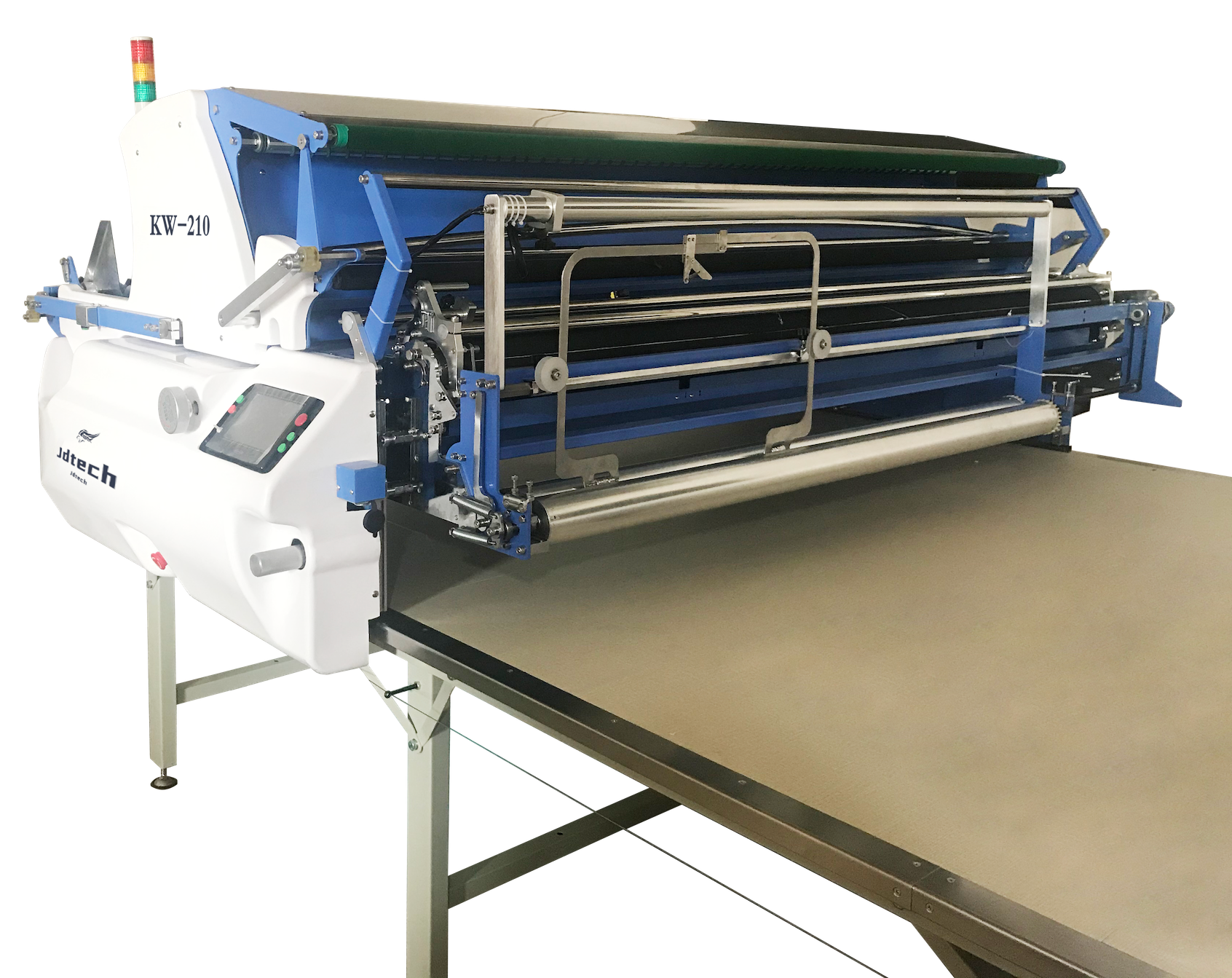

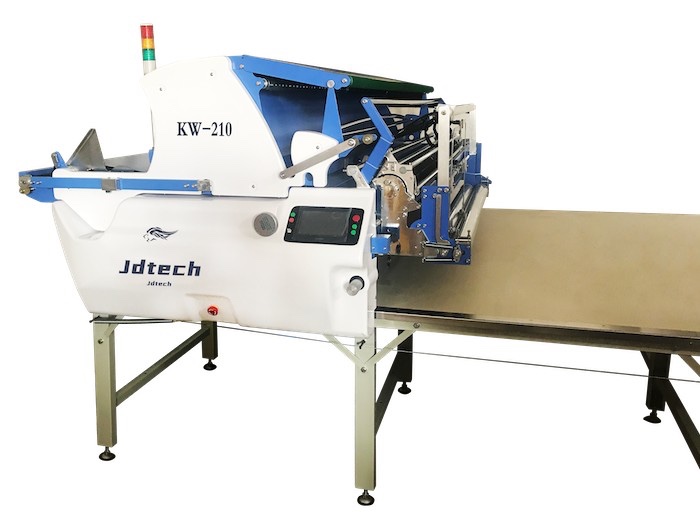

Automatic Knit And Woven Tubular Fabric Spreading KWT

Product Item：KWT-160+

Feature:

• Machine returns back to original position once fabric runs empty.

• The machine power will automatically shut off upon 5 minutes idle.

• The spread laid fabric is not pulled when the emergency stop triggers.

• The streamline shape can reduce the wind disturbance,noise and vibration.

• Automatic fabric expanding system.

• PLC Touch Panel, user-friendly operation system.

• Non-tension spreading.

• Simple operation increases production efficiency and also ensures the best quality.

• The new Arc mechanism ensures the elastic fabrics expanded perfectly.

Standard Equipment:

• Memory for set up of spreading length.

• Auto acceleration and deceleration by computer.

• Bucket type unwinding syn chronically with relaxing function.

• Fabric setting bar and fabric expand.

• Lamp of working status.

• Emergency stop.

• Auto-lifting device.

• Adjustable cutter travel length.

• Layer counter.

• Edge control.

• Auto-cutter.

• Rewinding device(Cloth roll).

Main Device:

• Touch panel display: Easy to set up the length, number of layer, speed and steps.

• Fabric expanding device: It can be adjusted according to the different width and tension of fabrics,making fabrics free from tension.

• Cutting device: The auto-cutter can be easily dismounted. Travel length and speed of cutter are adjustable.

• Automatic fabric relaxing control: To relax the fabric in advance and release the tension during spreading the fabric.

• Edge control device: Automatic edge control during spreading 伯brie.

• Fabric lading sensor: Machine returns back to original position once fabric runs empty.

• Emergency stop: The brake lines are under two sides of table, and can be efficiently pulled upon emergency.

Optional:

• Tubular Device.

• Riding Platform.

• Safety Sensor Device.

• Extension curly edge.

• movable of catcher t.

• Catcher for face to face.

• Multi Zero Point.

Specification

Model	KWT-190	KWT-210
Power Supply	1P/220V
Motor	1KW
Maximum Cloth Width	1900mm	2100mm
Table Width	2130mm	2330mm
Machine Weight	340kg	360kg
Weight of cloth roll	60kg max
Diameter of cloth roll	450mm max
Travel Speed	90m/min max
LxWxH Dimensions(mm)	2600x1800x950	2800x1800x950
LxWxH Packing Volume(mm)	2800x2000x1250	3000x2000x1250
N.W/G.W	570/860kg	610/970kg
Lay Height	One way 220mm,300mm(KW-H) Face to Face 150mm,230mm(KW-H)
SPREADING METHODS	ONE-WAY ZIGZAG(FACE TO FACE) MULITIPLE
