Description

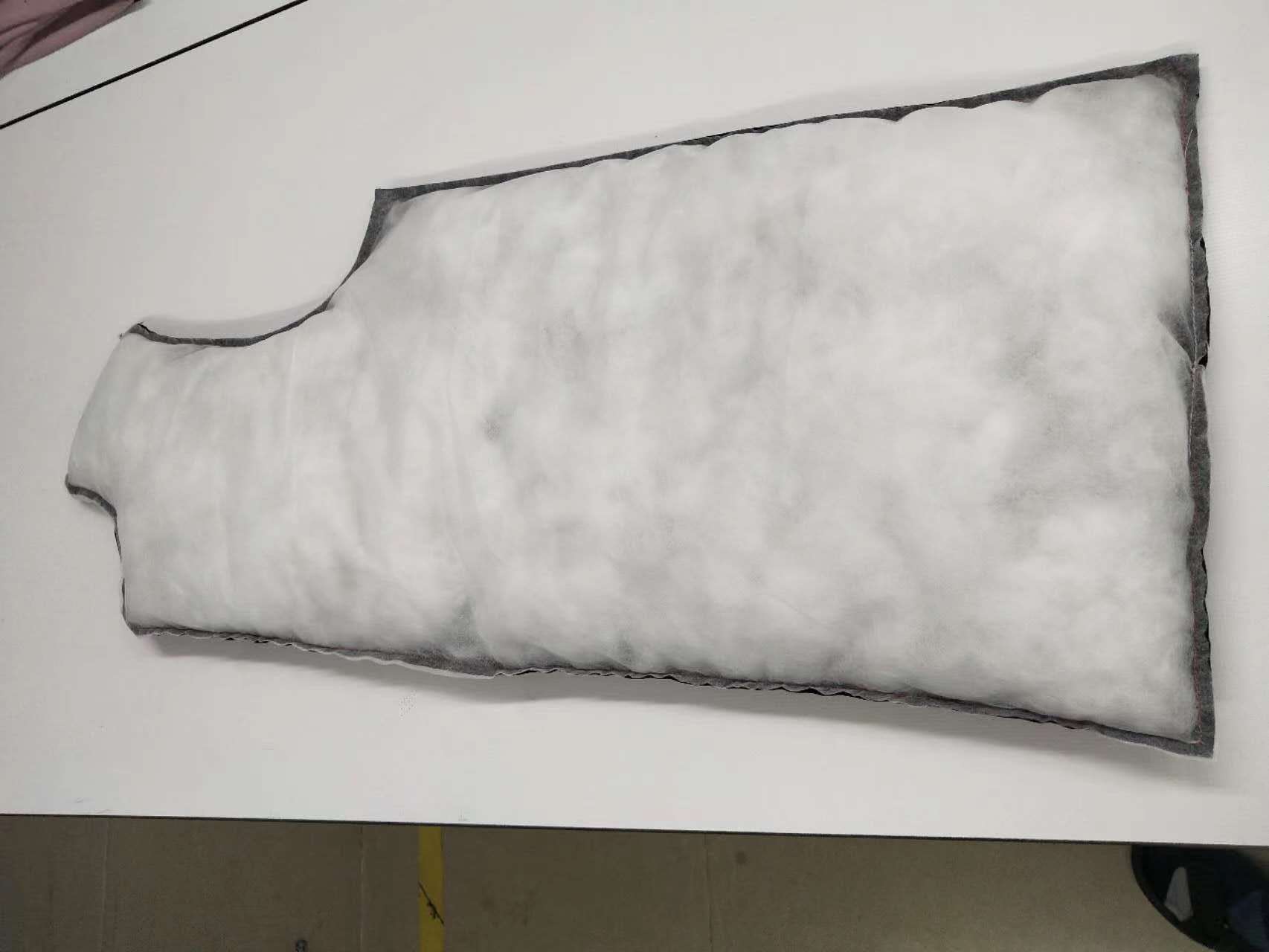

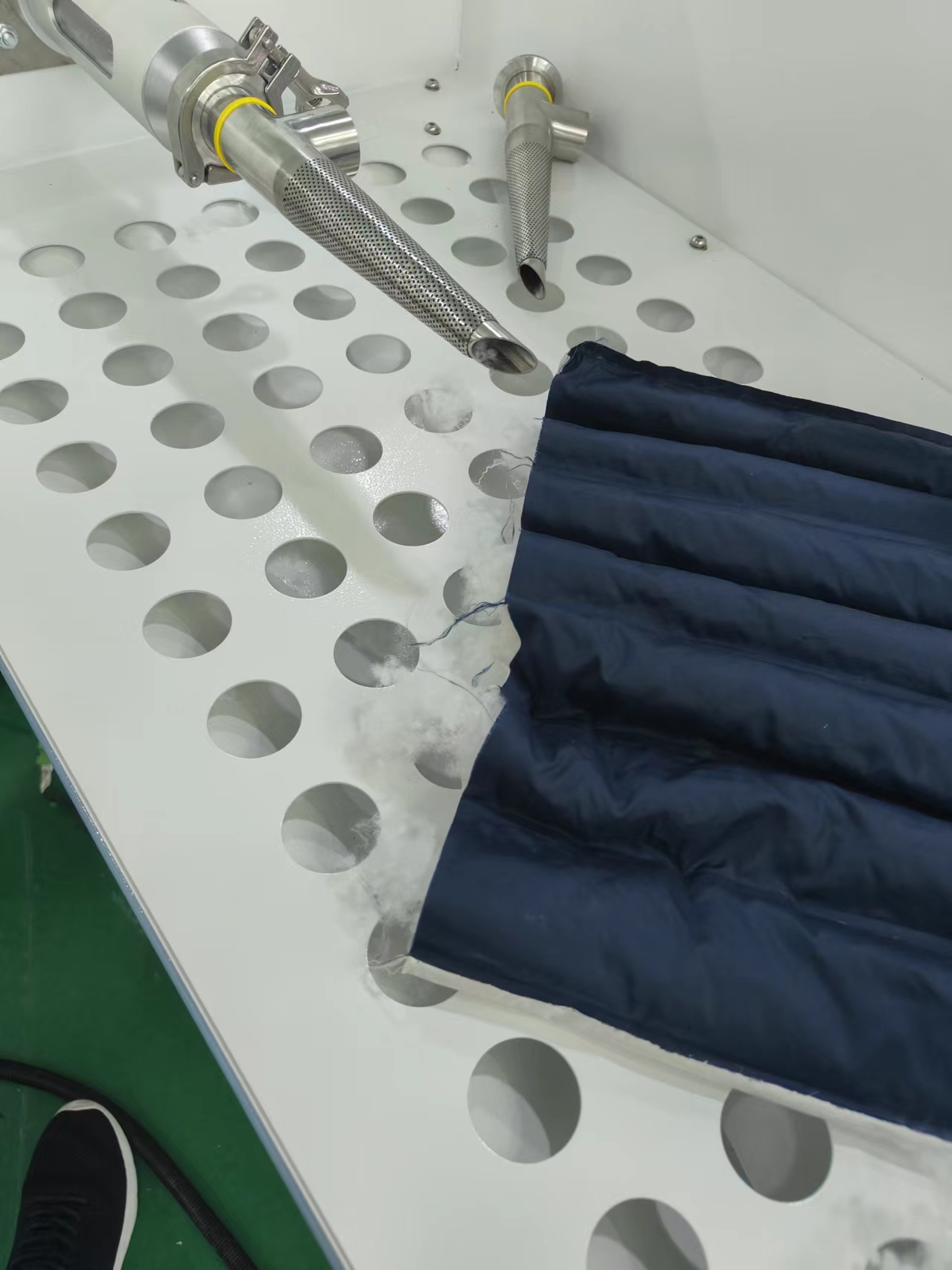

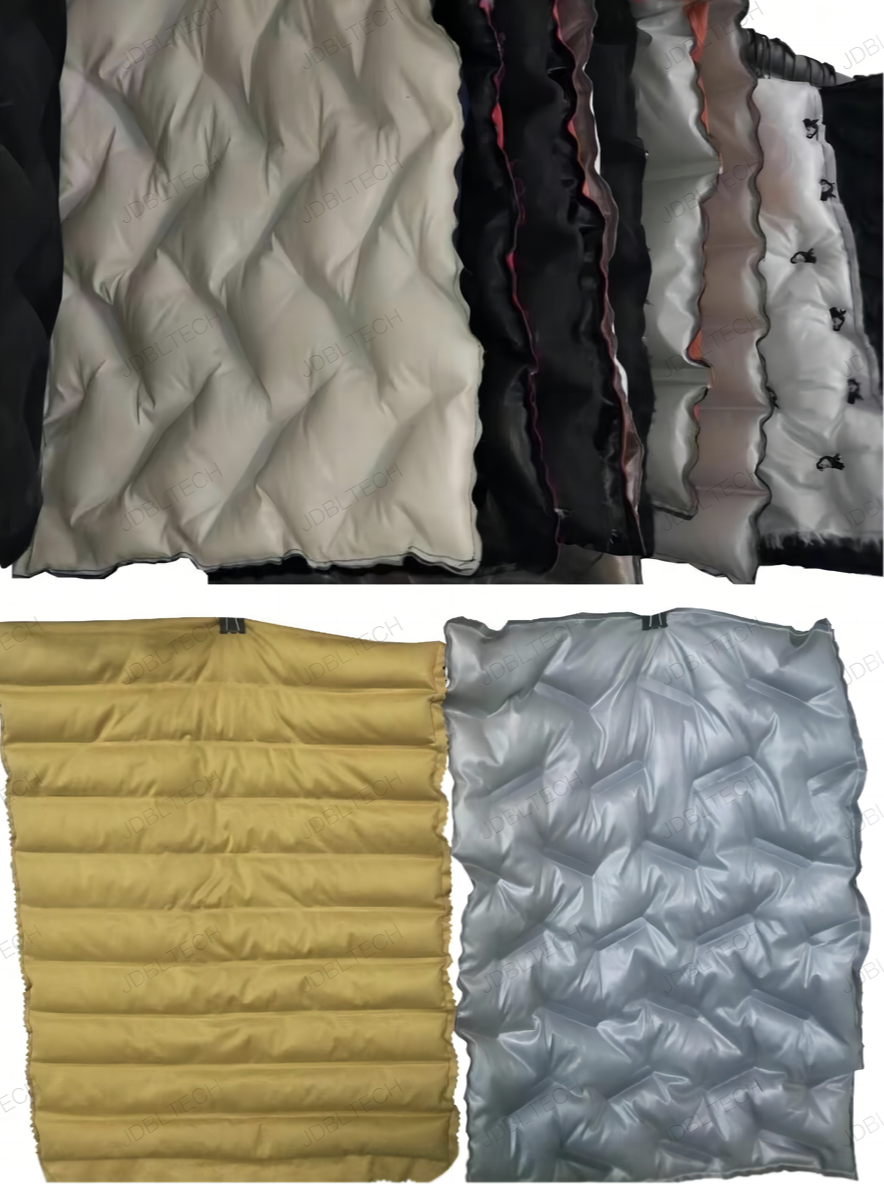

Jacket demo Channel

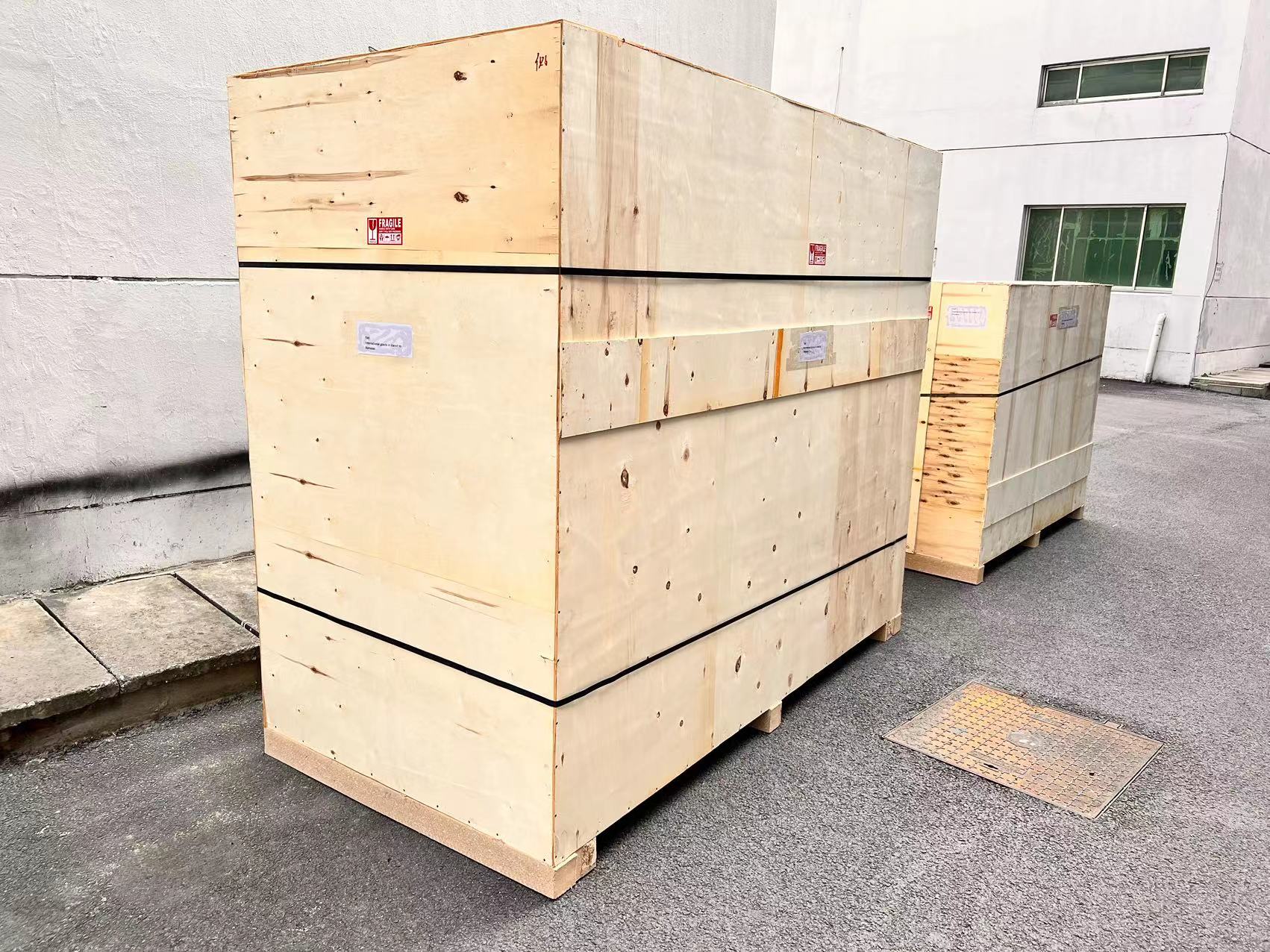

Package: Standard plywood case

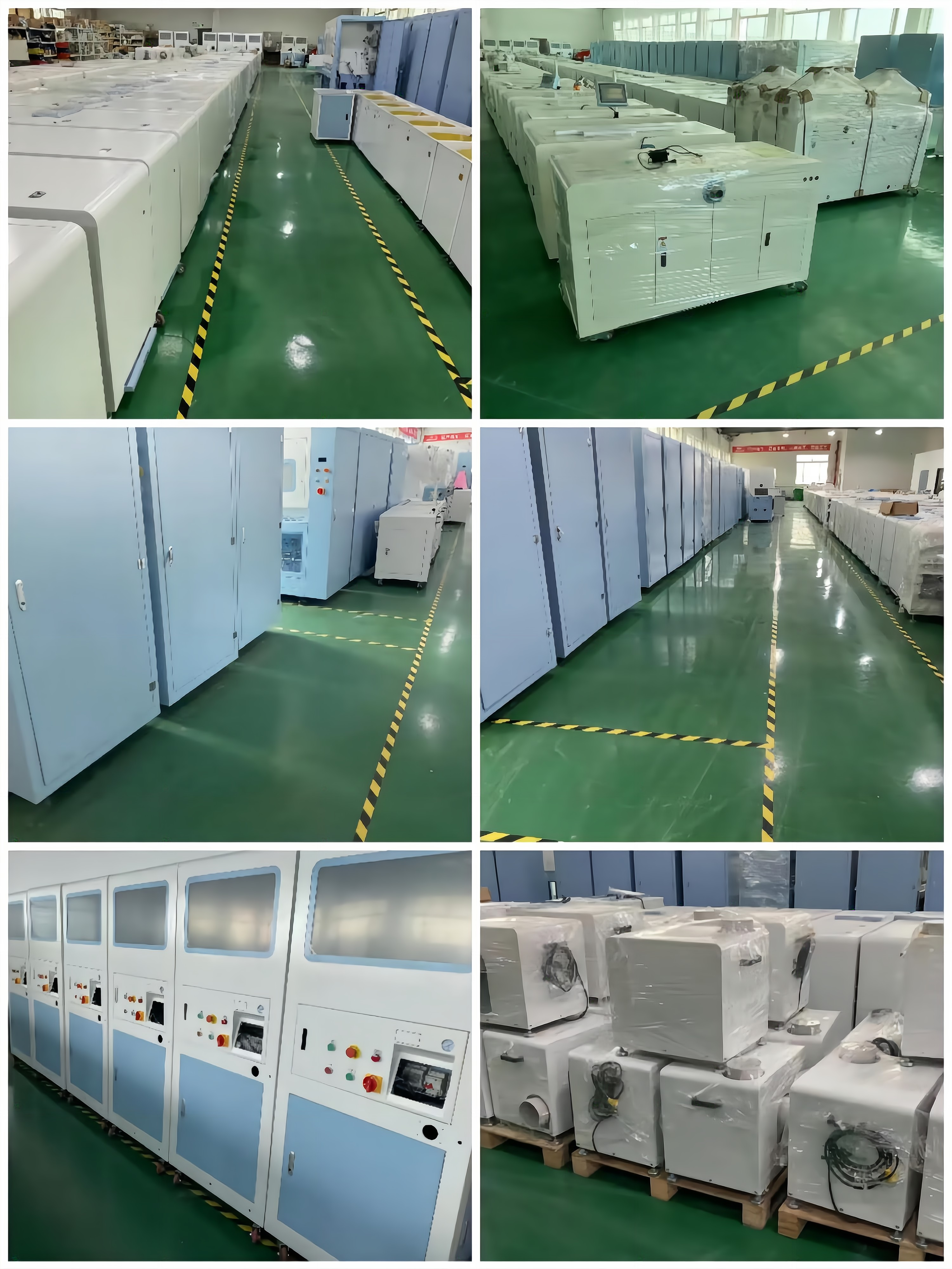

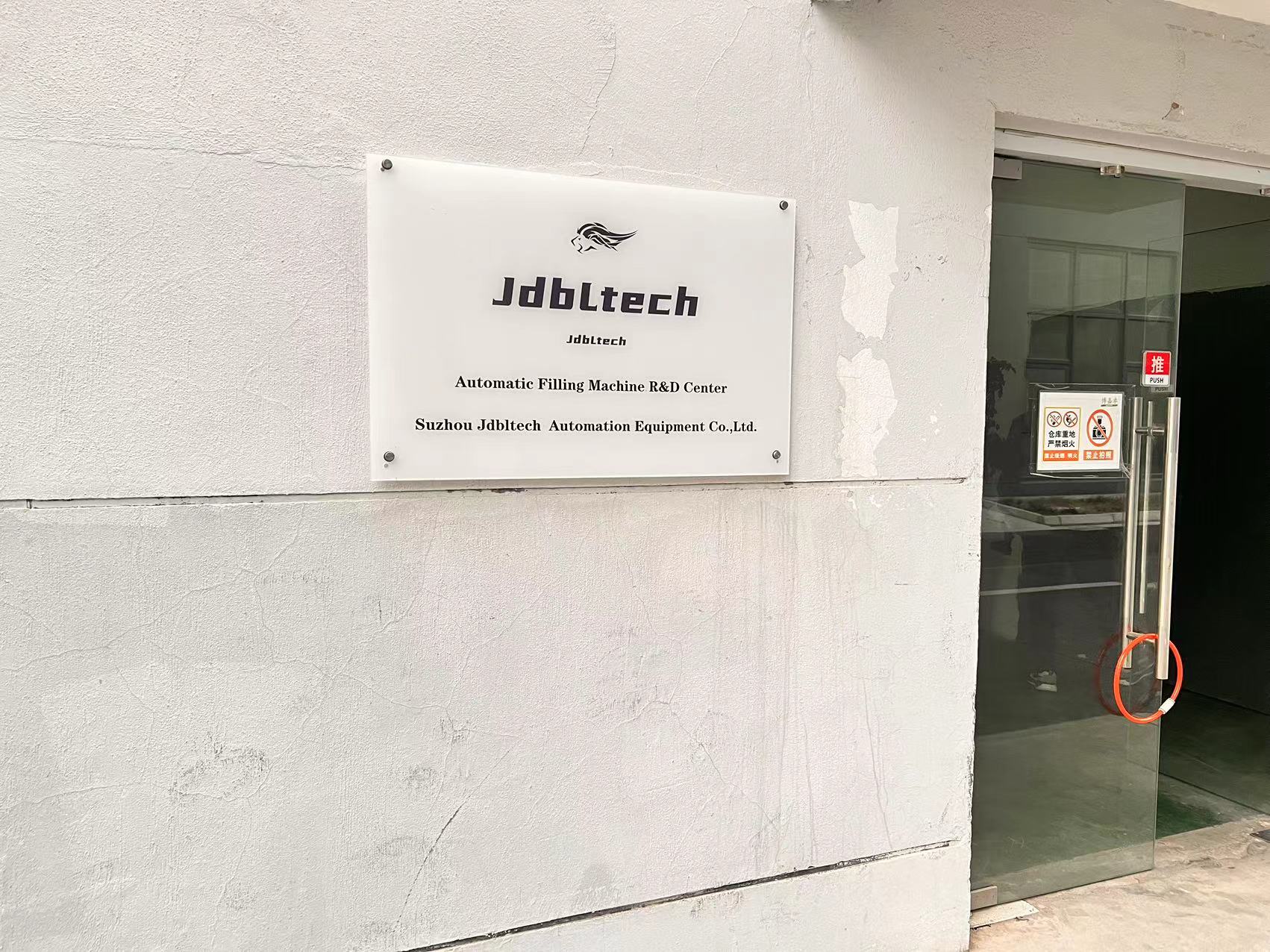

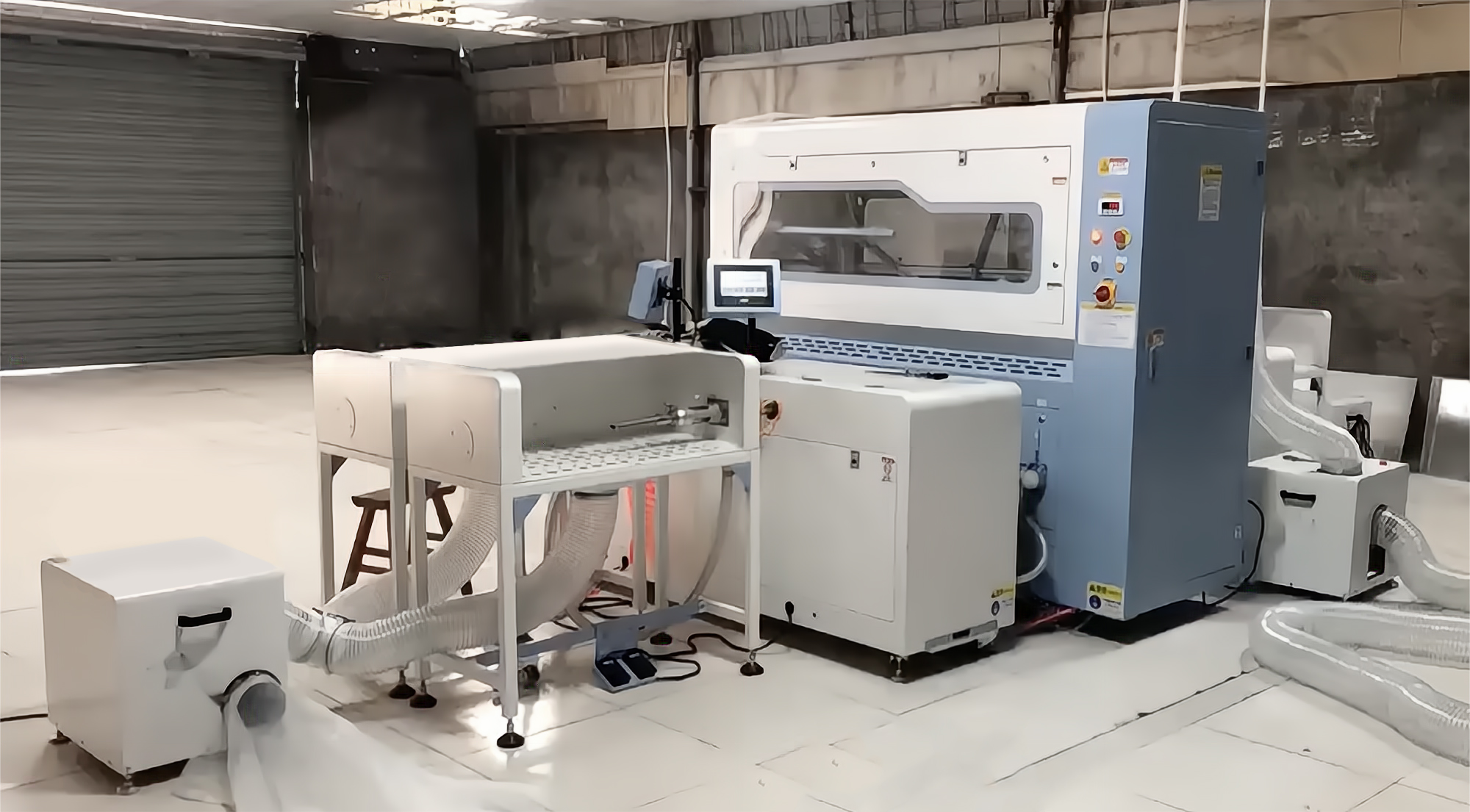

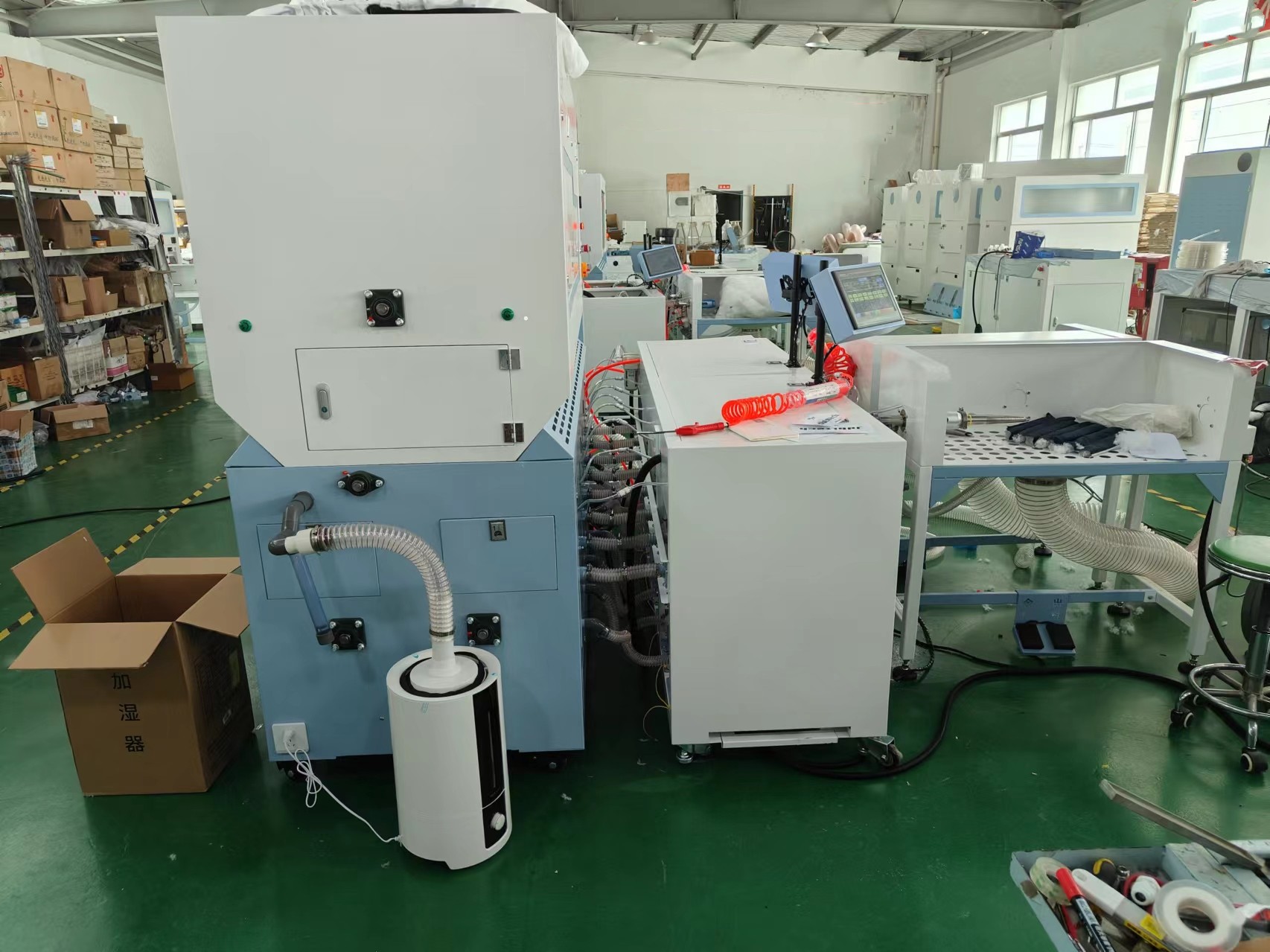

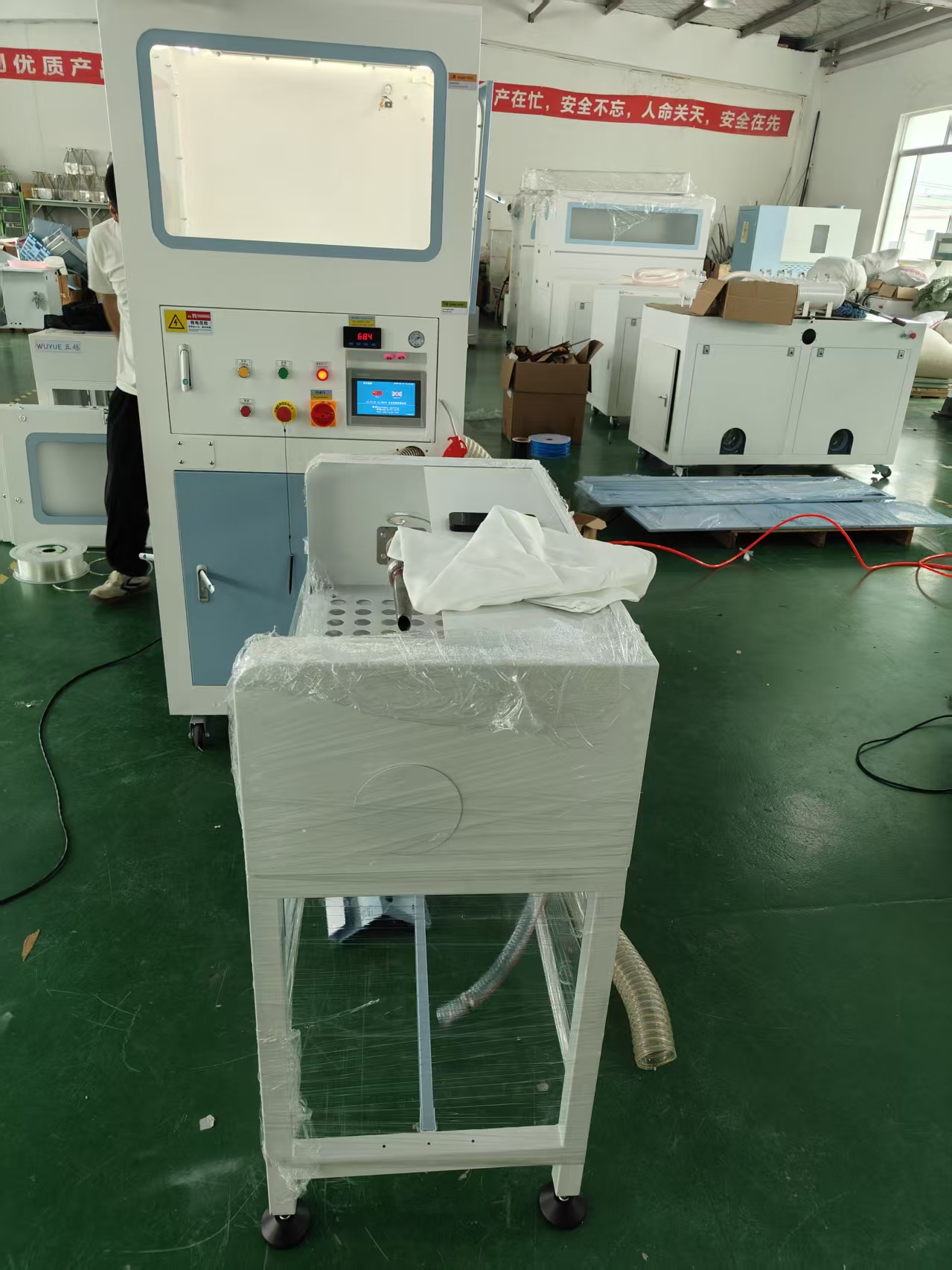

The Production Workshop
Advantages:

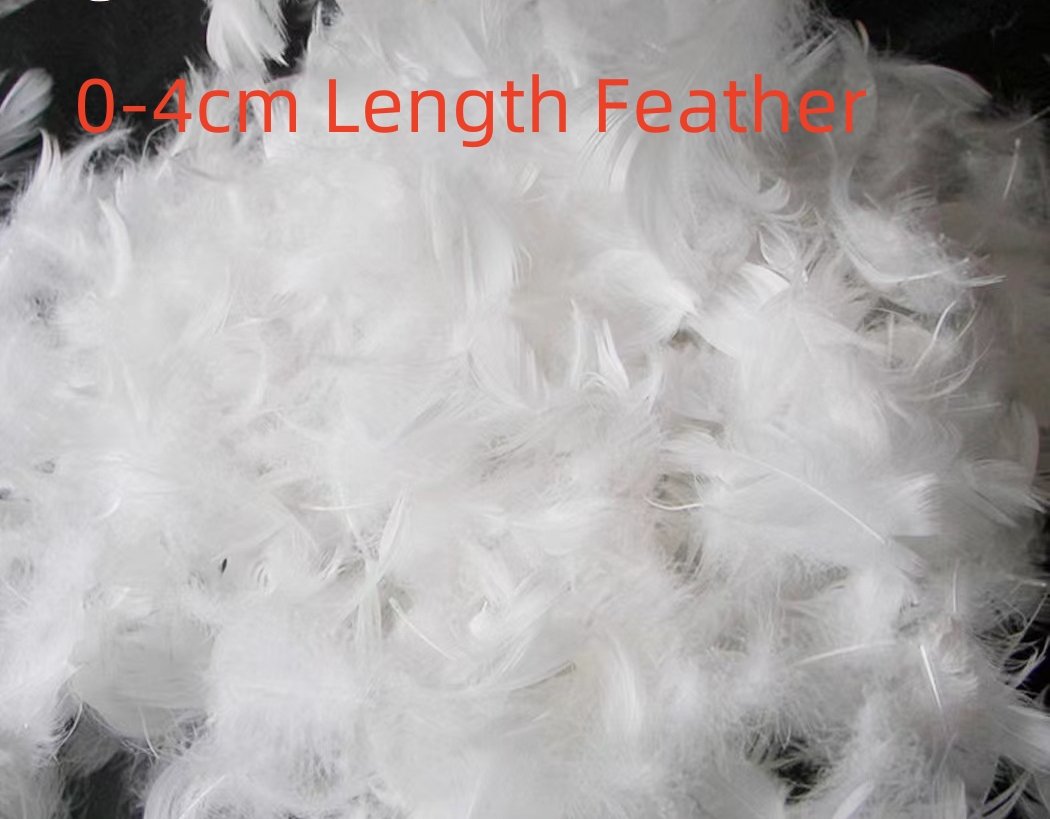

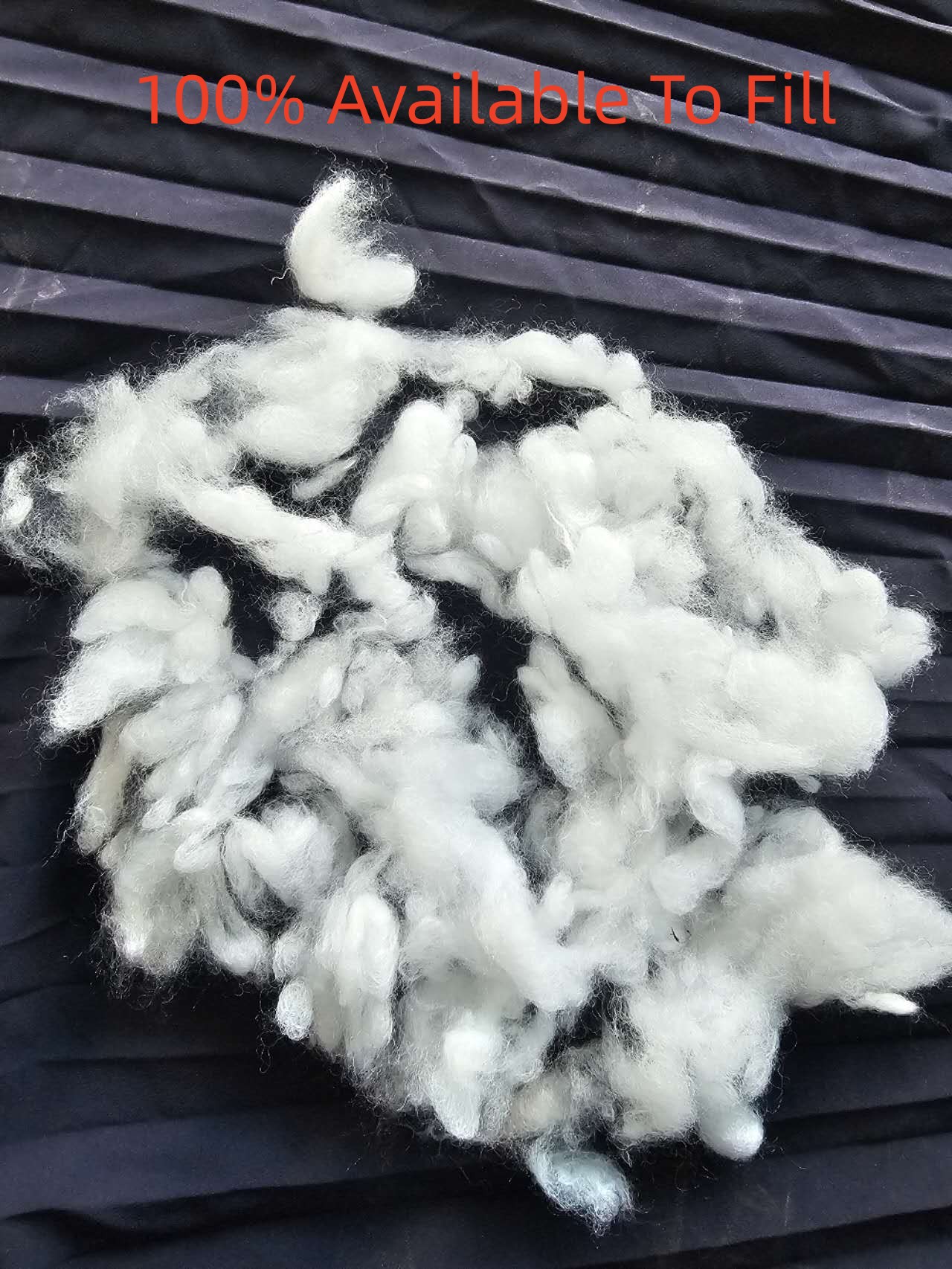

Filling Material: New model can fill 30-90 %goose duck white and grey down, polyester fiber length<=32mm/7D, ball fiber, feather filament, feather length<=40mm.
If you want to make fiber jacket cloth filling, we suggest use (fake down): 100% polyester micro fiber 0.9D 25MM/32MM which we can supply with machine.

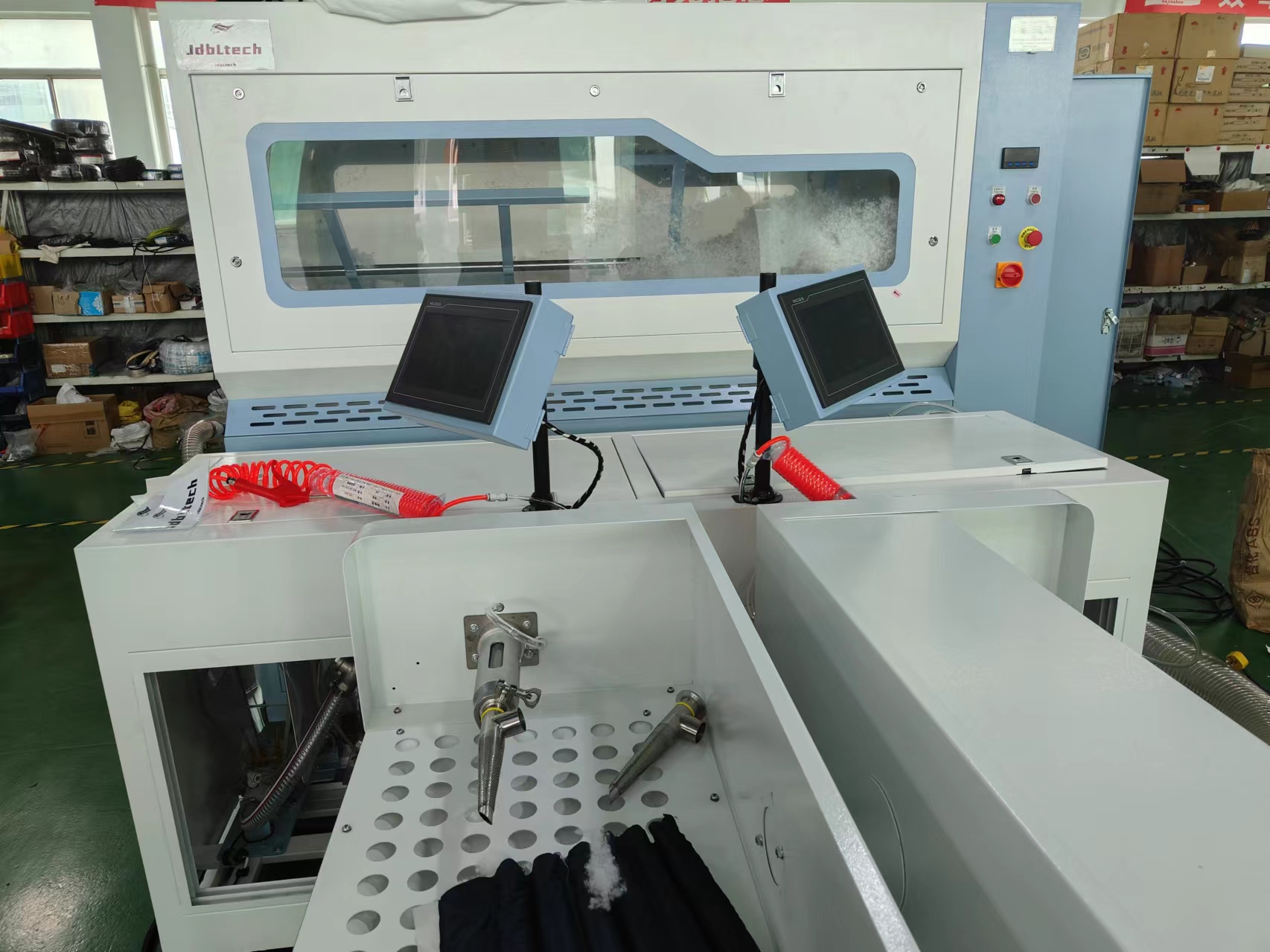

1. Production Capacity: 1 set machine 4 working station can fill total 6800+pcs jacket channels /(lattice)per hour.
2. Multiple gram filling and fixed gram filling, you can set 1g, 10g, 15g, 2g,30g,.... also you can set 5g,5g,5g,5g.

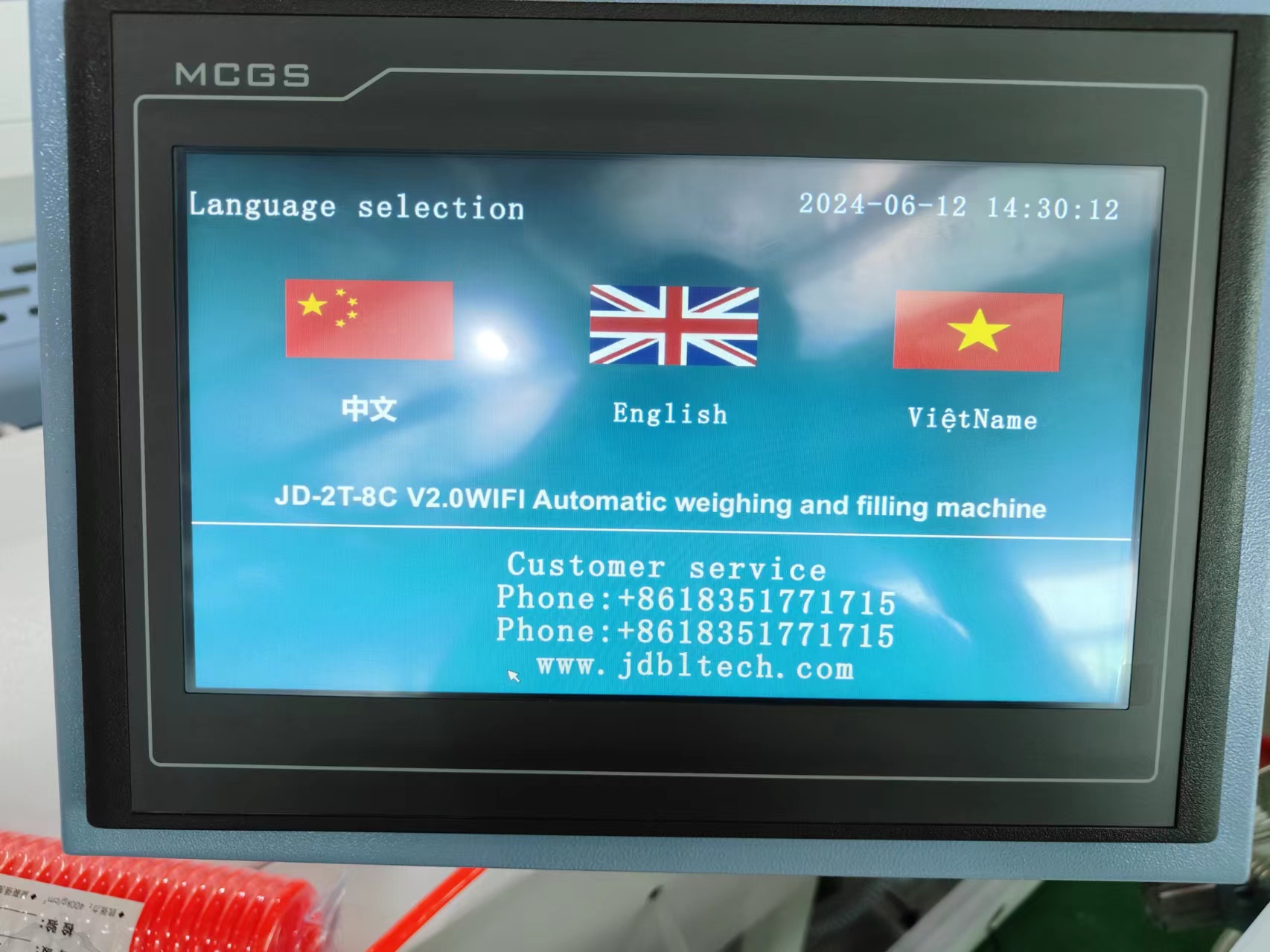

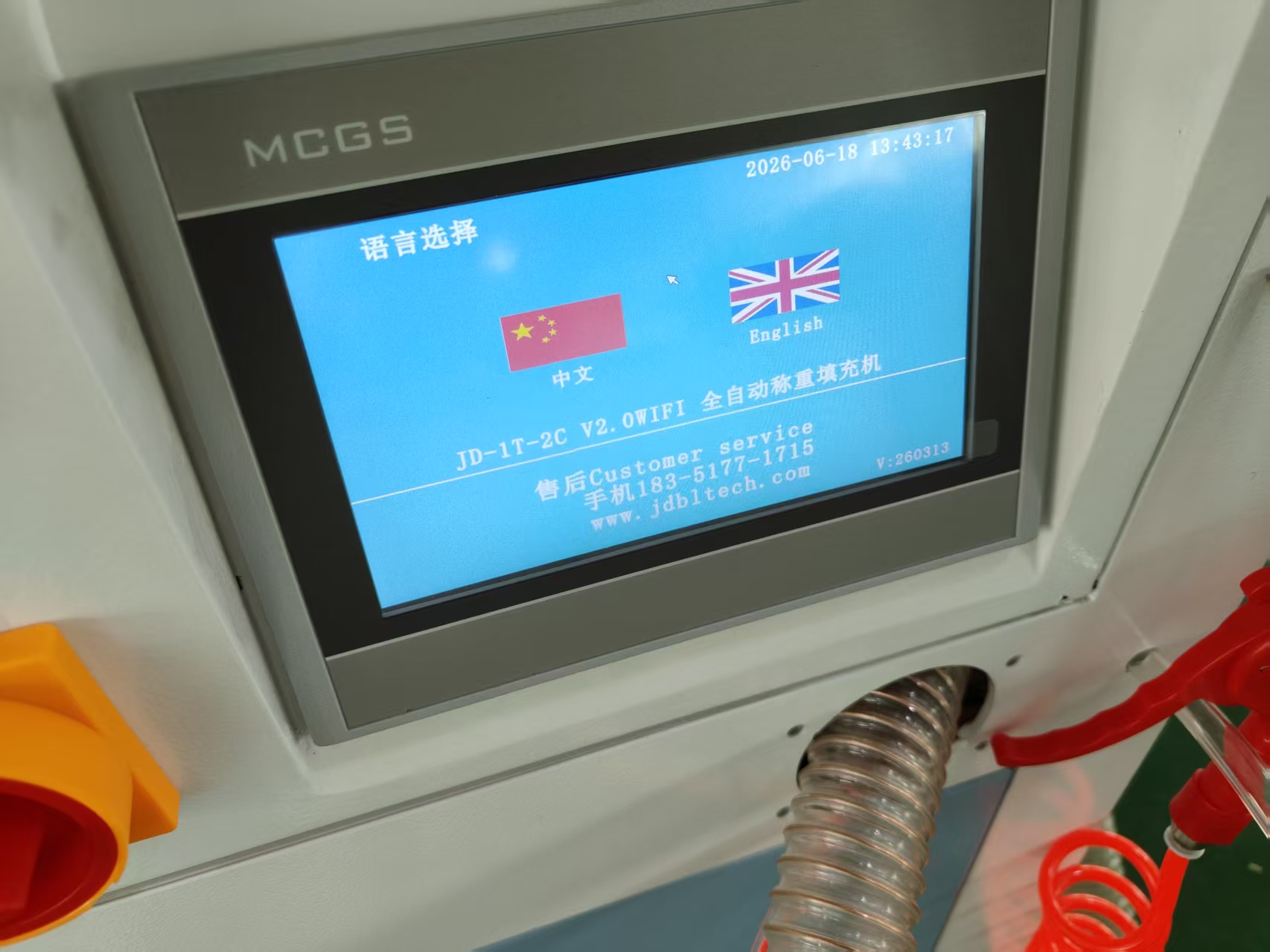

3.Standard remote network assistance function wifi-connection, the machine can be connected to the internet, our engineer can remotely modify the working parameters, improve production efficiency ,repair faults, and automatically upgrade the latest software, so that the first time to buy the machine customers have no worries.
4. Reverse the more extra down into main machine, keep low tolerance to save cost.
5. Support wanted tolerance number settings in different range, for example range from 1-5g tolerance +-0.01g, 5-10g tolerance+ -0.02g,10-20g tolerance+- 0.05g. Industry tolerance within 3% of total, We can control within 2% error of total weight via advanced software system and hardware device.
6. Independent weighing system, one weighing scale is broken, do not influence other scale working. Refer the VIDEO, in normal filling mode, enter into menu page, turn off the scale 2 and 3, it will stop working, but the rest scale is still on. when we turn on number 2 and 3 again, it will recover to work.
7. Apportion heavy gram, supporting filling max 120g down feather or short fiber one time, min 0.3g, only need to pedal one time. Refer the VIDEO ,120g target weight, enter into multiple filling page, input 120g, it will set 30g max per hopper, each 4 hopper down or fiber will fill into bag one time, when nozzle stop output material , you can go on the next, and recycle doing this step.

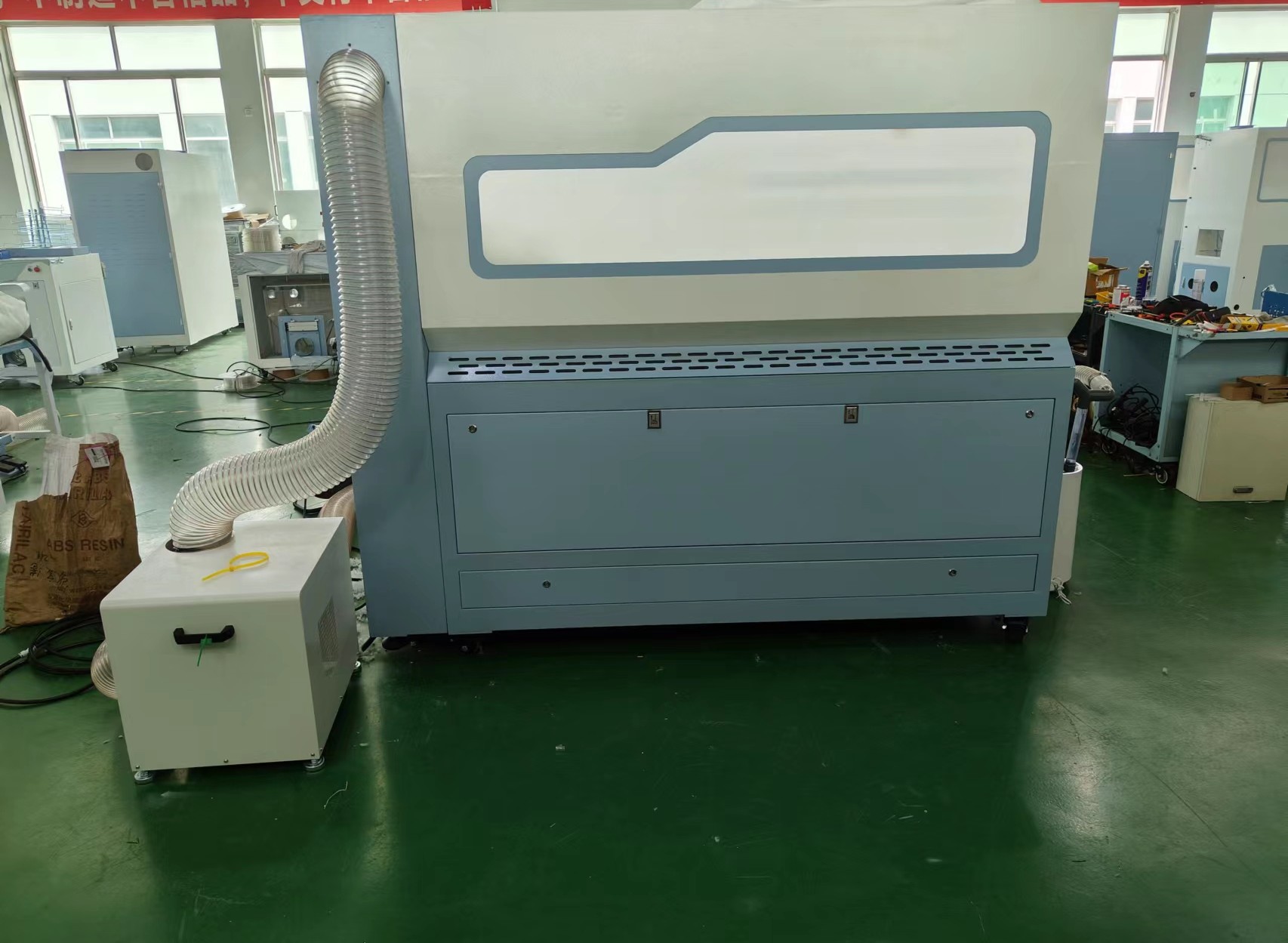

8. Goose down recycle function, collect spilled extra down to save material cost.

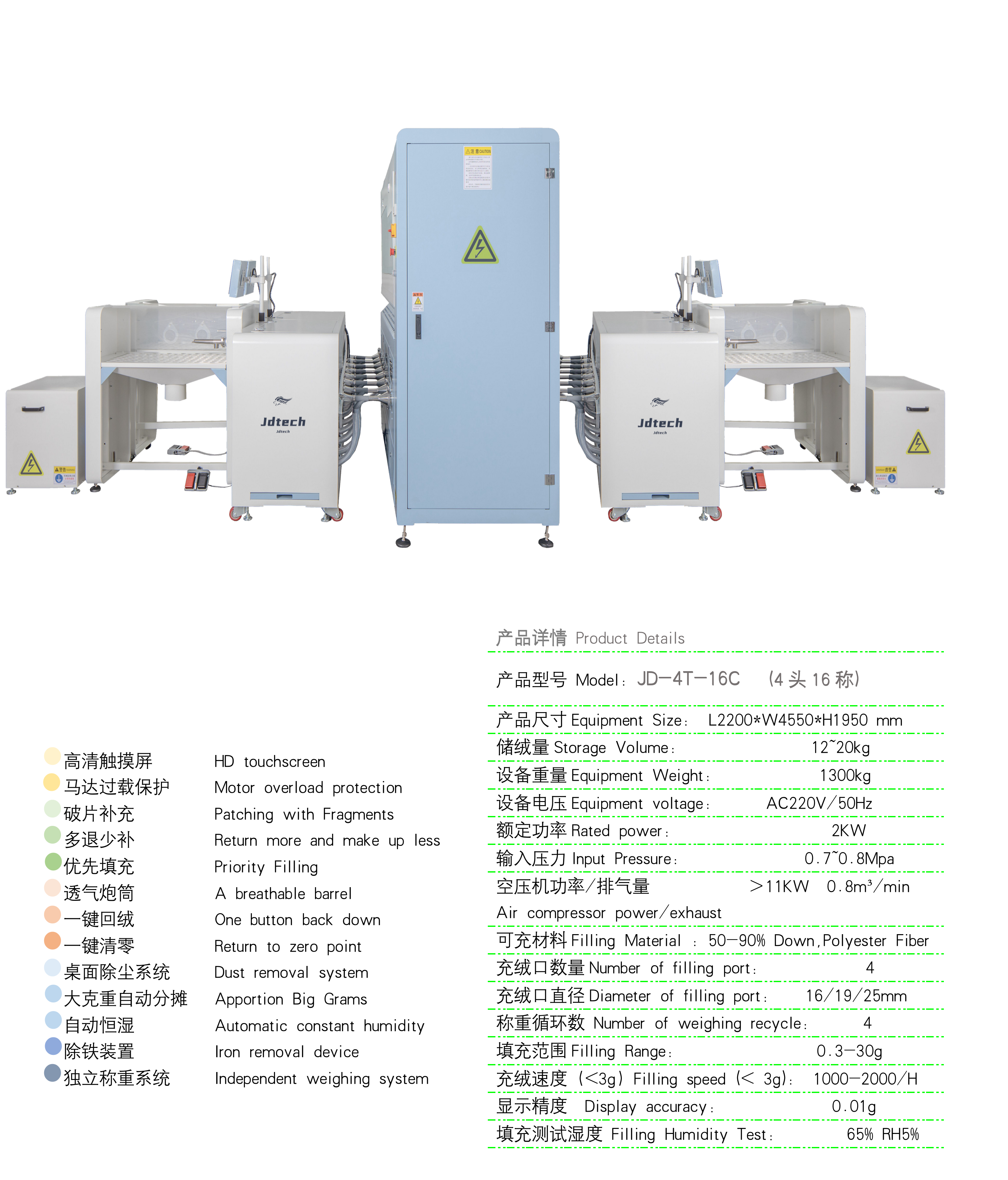

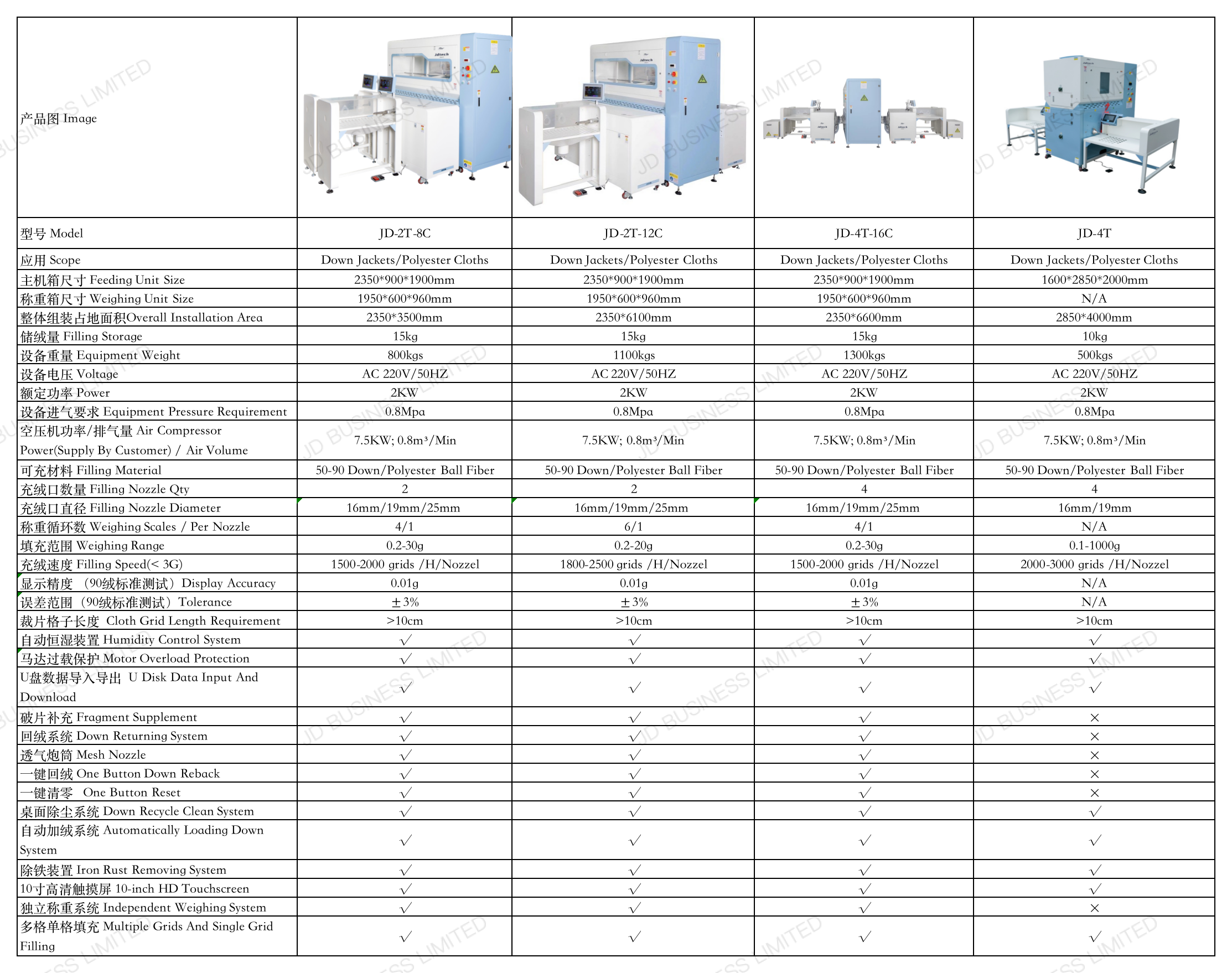

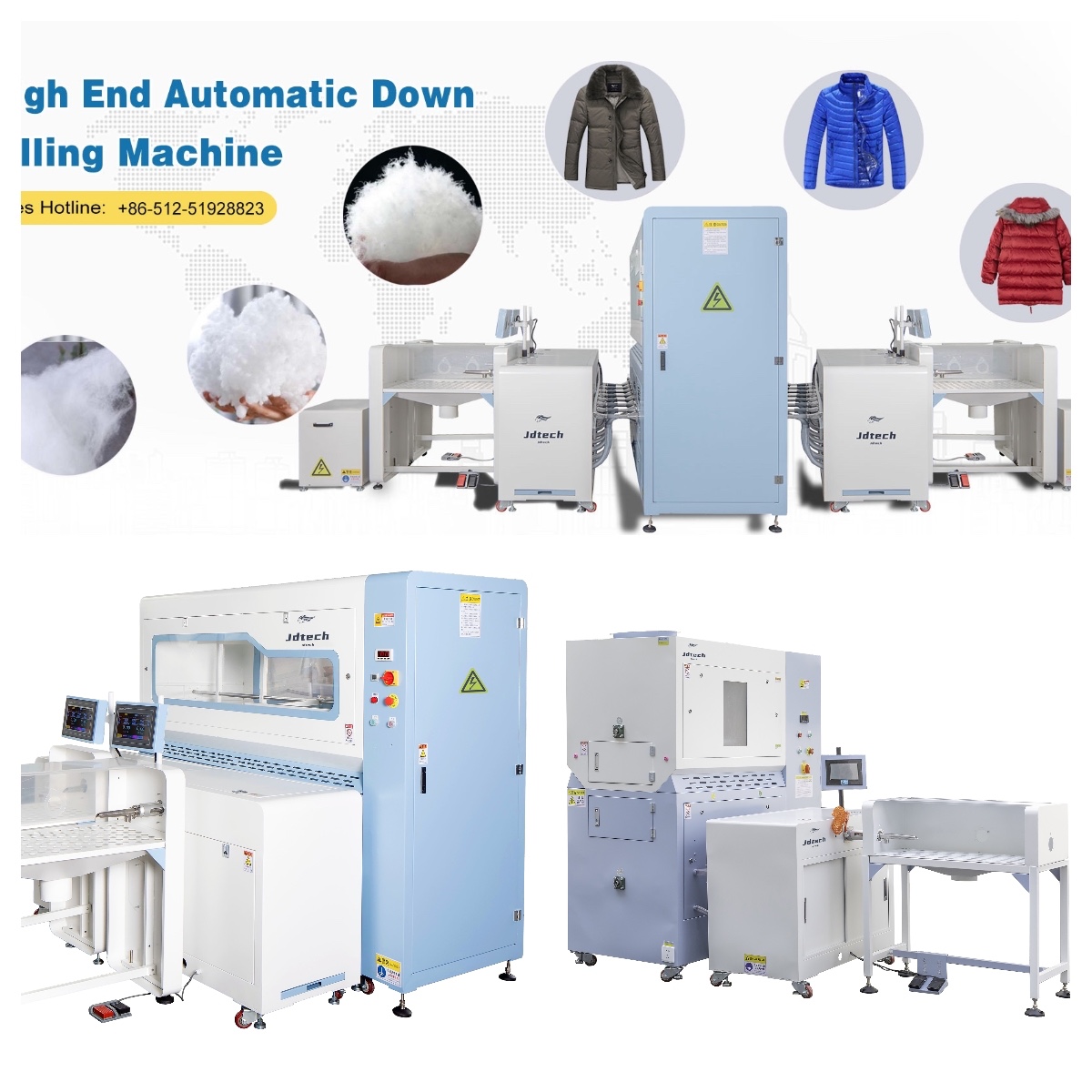

You may think 4T-16C is occupied big room space and expense, 2T-8C is also good choice

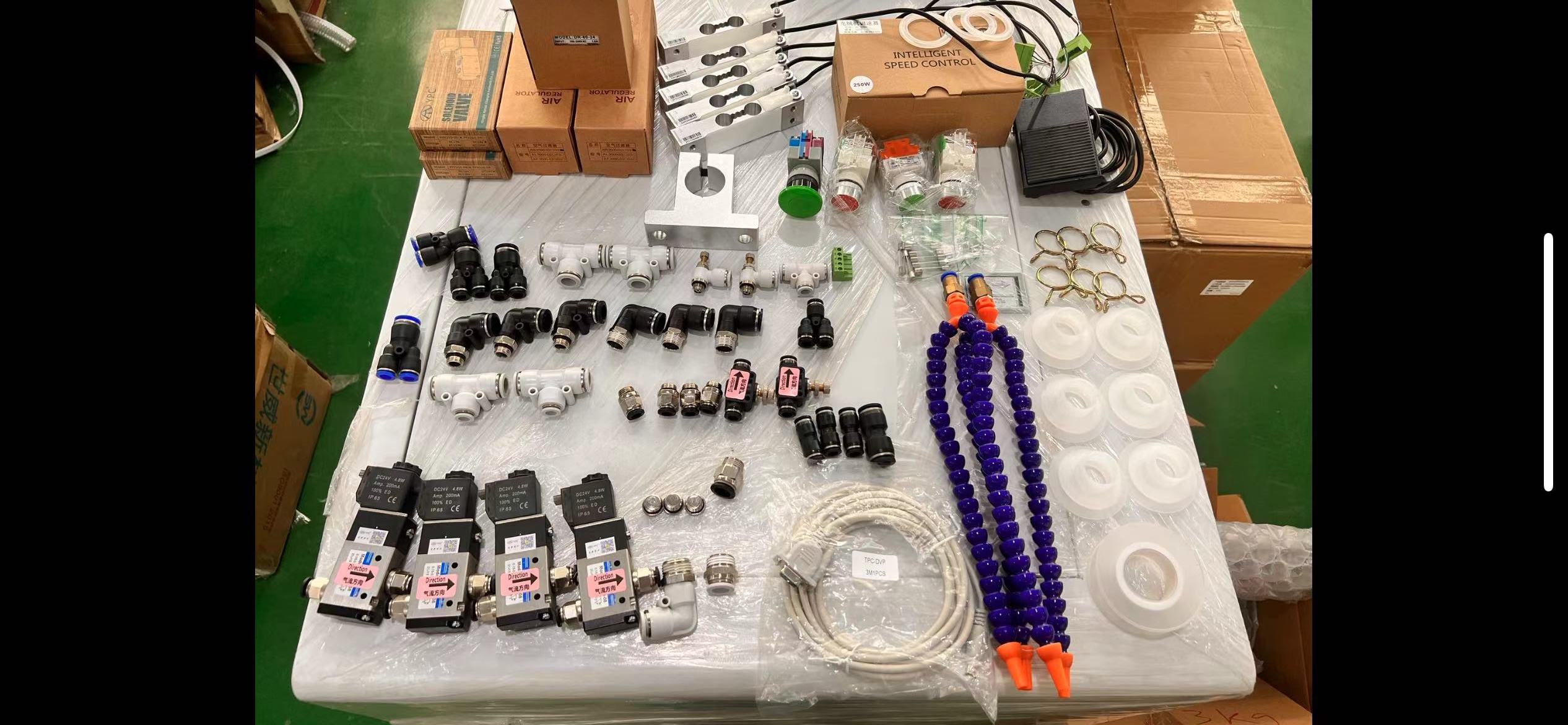

Every Single Machine , we send extra free spareparts with machine order together, 100% free.
