产品详情 Technical Parameters

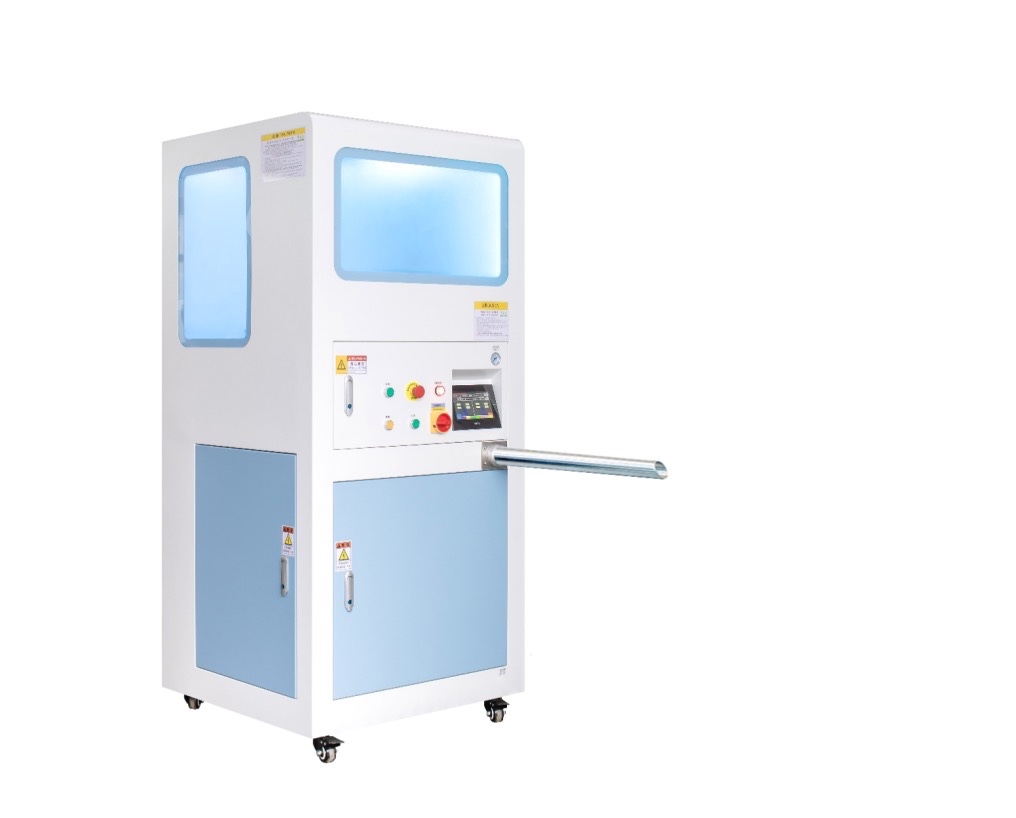

产品型号 Model : JDQ-1T-2C
主机箱尺寸 Main Machine Case Size : L800*W850*H2000mm
占地面积 Working Area: L1550*W850mm
净重 N.W.:180kgs , 毛重 G.W.: 250kgs
储绒量 Material Storage Volume : 3kgs
额定功率 Rated Power : 900w
设备电压 Equipment Voltage: AC220V/50HZ
设备进气要求 Equipment Input Air Pressure : 7-8 Bar
空压机功率/排气量 Screw Air Compressor Power/Exhaust : 3.8 kw 0.8m³/min ( Equipped By Customers), 8mm inner diameter air hose.
可填充材料 Filling Material : 50-90% Goose Down /Duck Down/ Small Feather /Ball Fiber/ 30g below Short Polyester Fiber Each
充绒口数量 Number Of Filling Ports: 1
充绒口直径 Pile Filling Diameter: 32mm/750mm Length For Duvet filling
称重循环数 Weighing Cycle Number : 1/2
填充范围 Filling Weighing Range: 0.2-40g For Duvet/Quilt/Comforter Per time
填充速度 （< 3g) Filling Speed （< 3g) : 5-9g/S For Duvet
显示精度（90绒标准测试）Display Accuracy ( 90% Goose Down Testing) : 0.01g
误差范围 90绒标准测试）Precision Wave ( 90% Goose Down Testing) : ±2%
填充测试湿度 Filling Humidity Test : 65% RH 5%
备注 Note: Integral Filling Equipment Includes 1 Set Main Machine Case , Option:1 Set Working Filling Table
特殊功能 Special Function：
1，自动上料 Auto Feeding
2，自动称重 Auto Weighing
3，远程协助 Remote Assistance
4, 多退少补 Auto Move Back Overweight Material
5，家纺模式 Home Textile Mode
