Description
Feature:

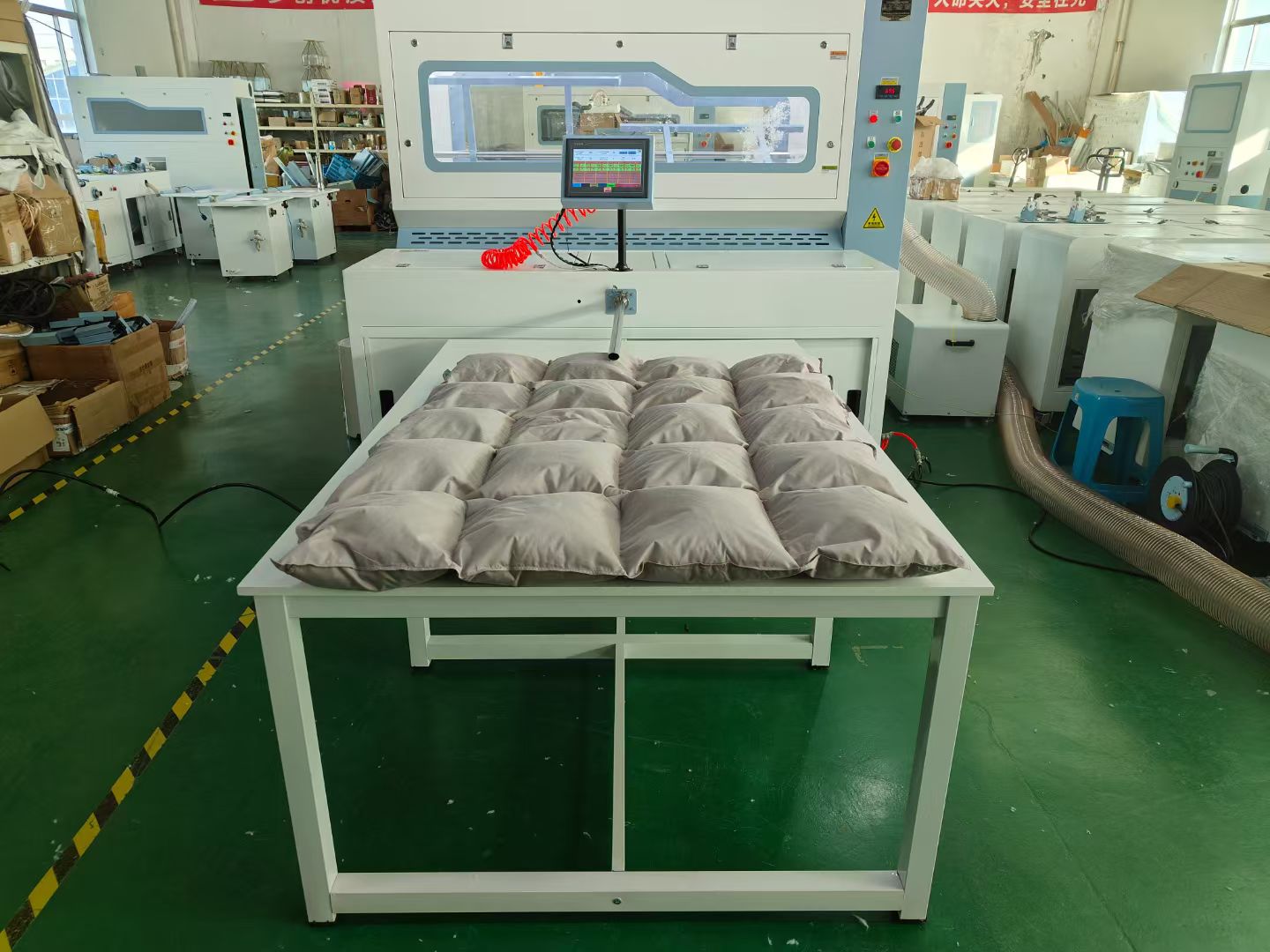

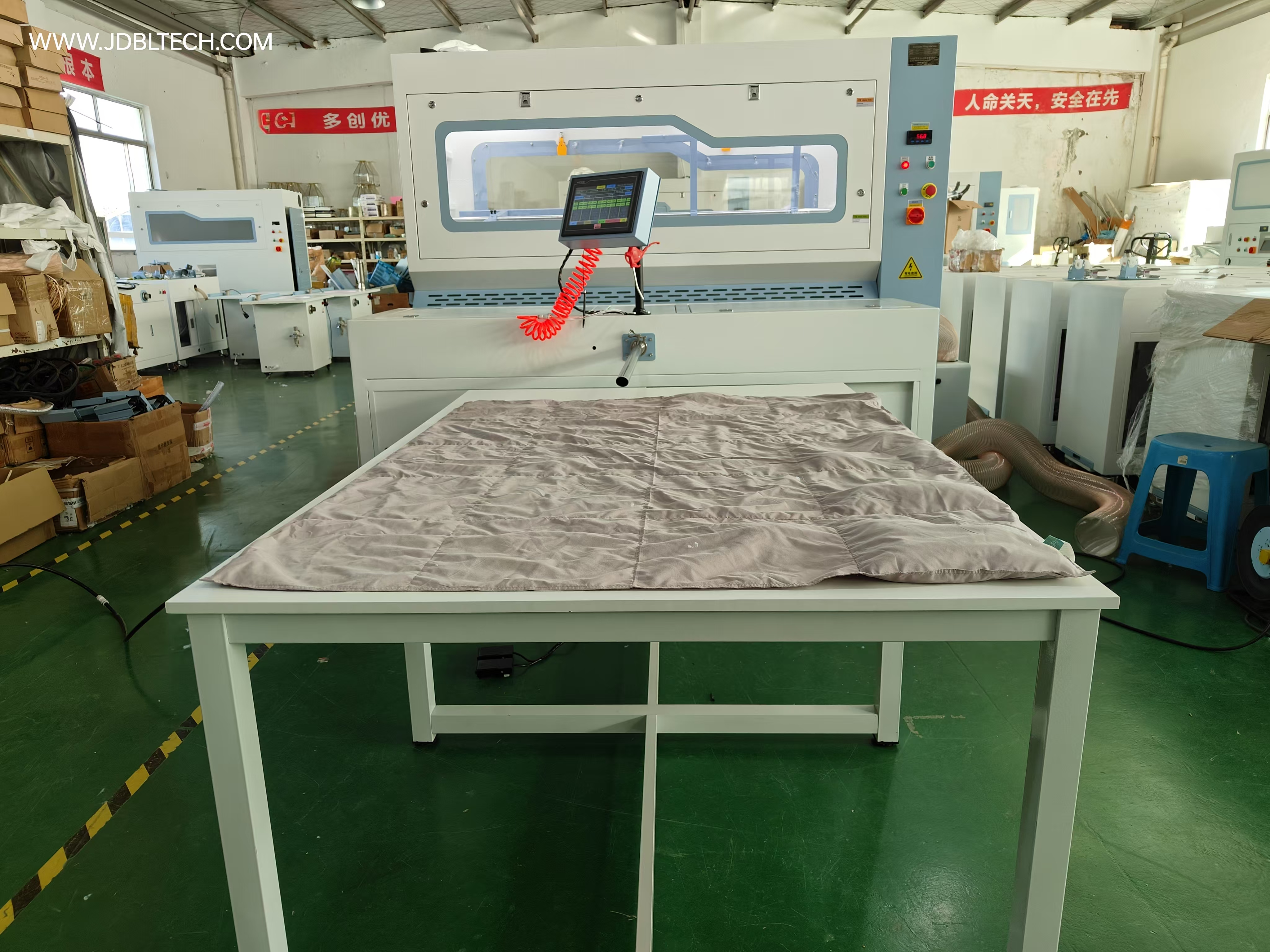

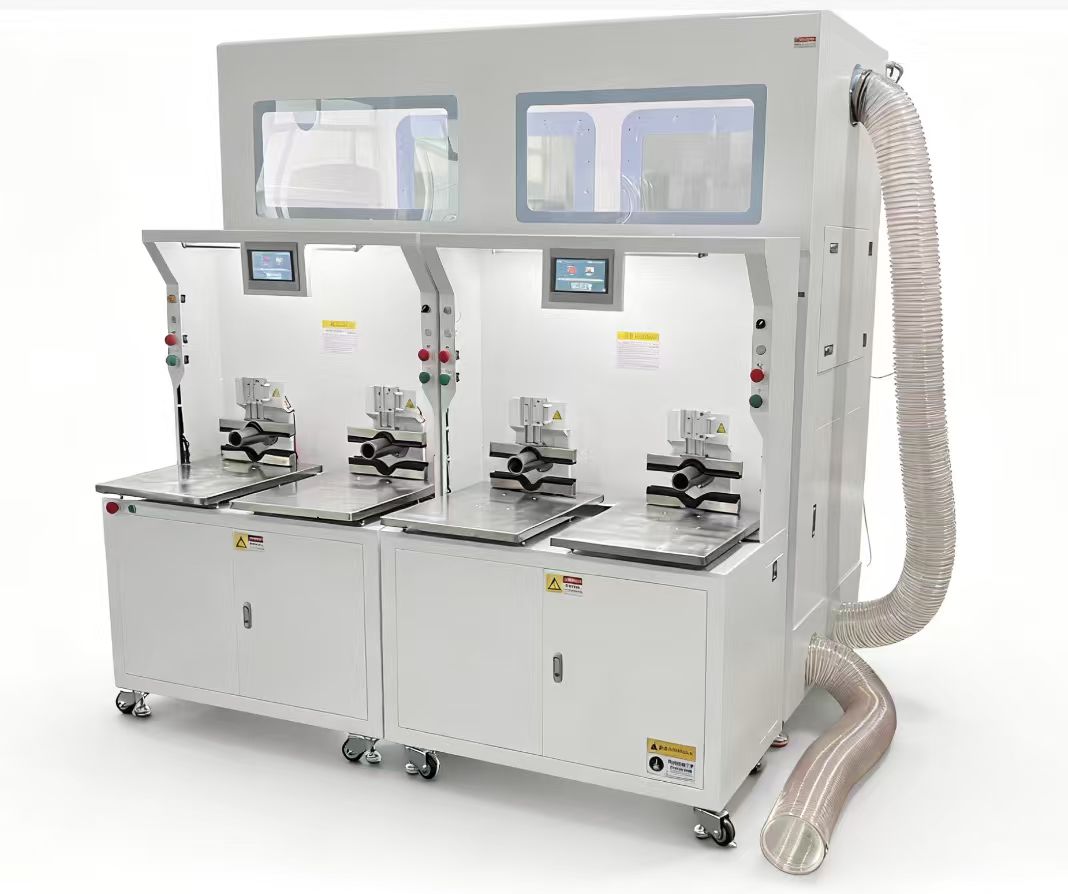

1.The most advantage of this duvet machine is filling precision . you can fill or stuff the wanted down feather/fiber weight , for example, target to fill 40g one time , the real weight is waving from 39.5g to 40.5g each time max.
Quilt Filling Video : https://youtu.be/d1CJ5OzUHtY (500g filling target weight divide into 20 pcs pockets, real weight : 499g)
Pillow Filling Video: https://youtu.be/VzgHCCkysJo (40*60cm pillow core target filling weight 350g, real weight 349g)
2.Capacity: 100% follow up your production speed. 900 square grids per hour（around 4 minutes /per pcs duvet: 56 square grids), each grid fill 25-35g on average.
3.Non-blade inside stirring bar, not damage the delicate and fine handfeel of down.
4.High efficient method to replace the remaining silo material within 2 -3 minutes one time.
5.Provide detailed installation PDF files and short operation videos to help you make the machine work high-efficiently.
Performance: 0-4cm length feather can load 40g into weighing hopper max per time, not clog in any place, 4-6cm feather suggest divide into 15-20g max per time ,Synthetic Micro Fiber Length not more than 32mm.
Remarks : Loading weight in hopper is not equal with your target filling weight, you can fill 400g or more per time just use filling pedal one time by machine setting.
The Package:

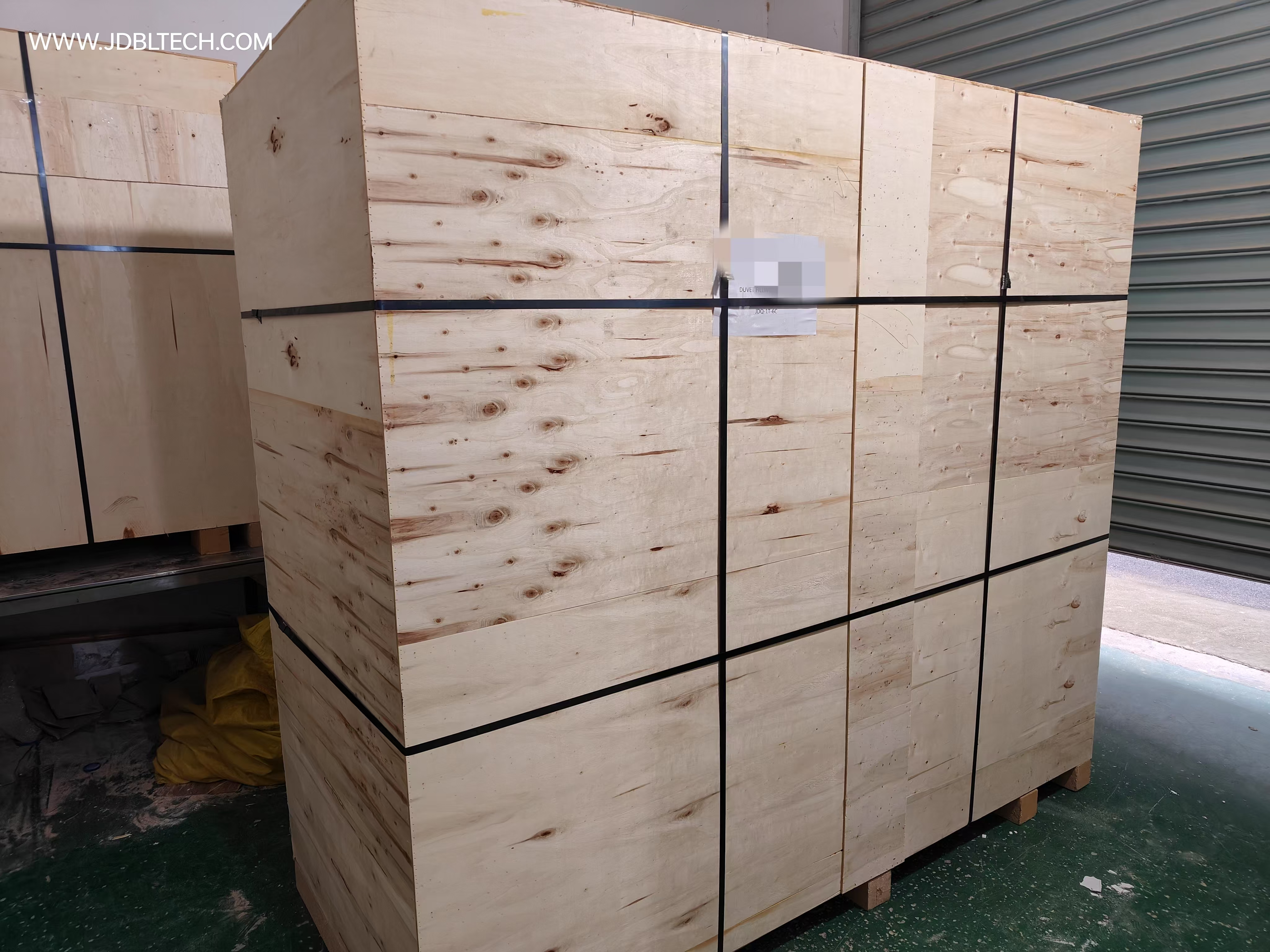

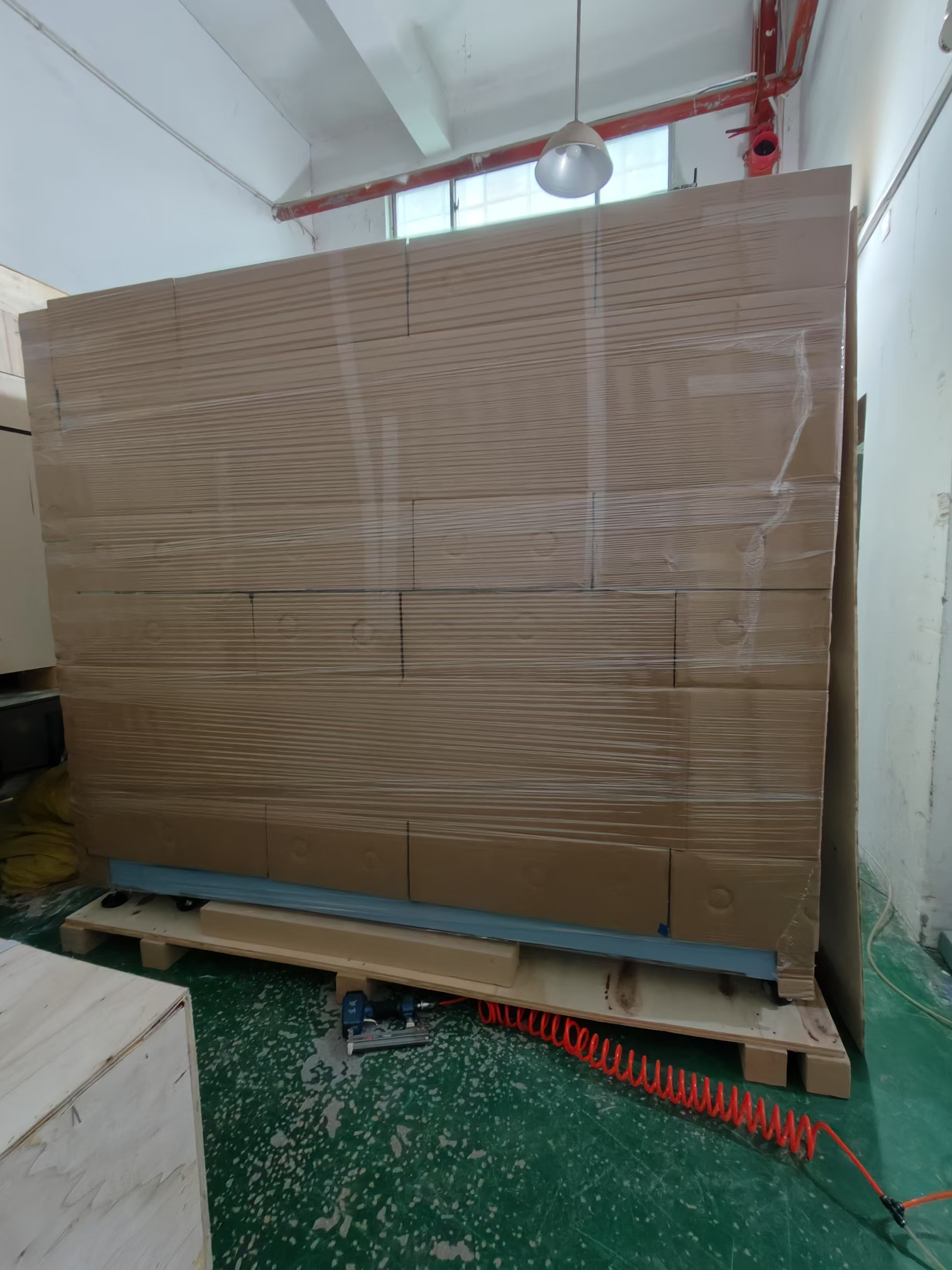

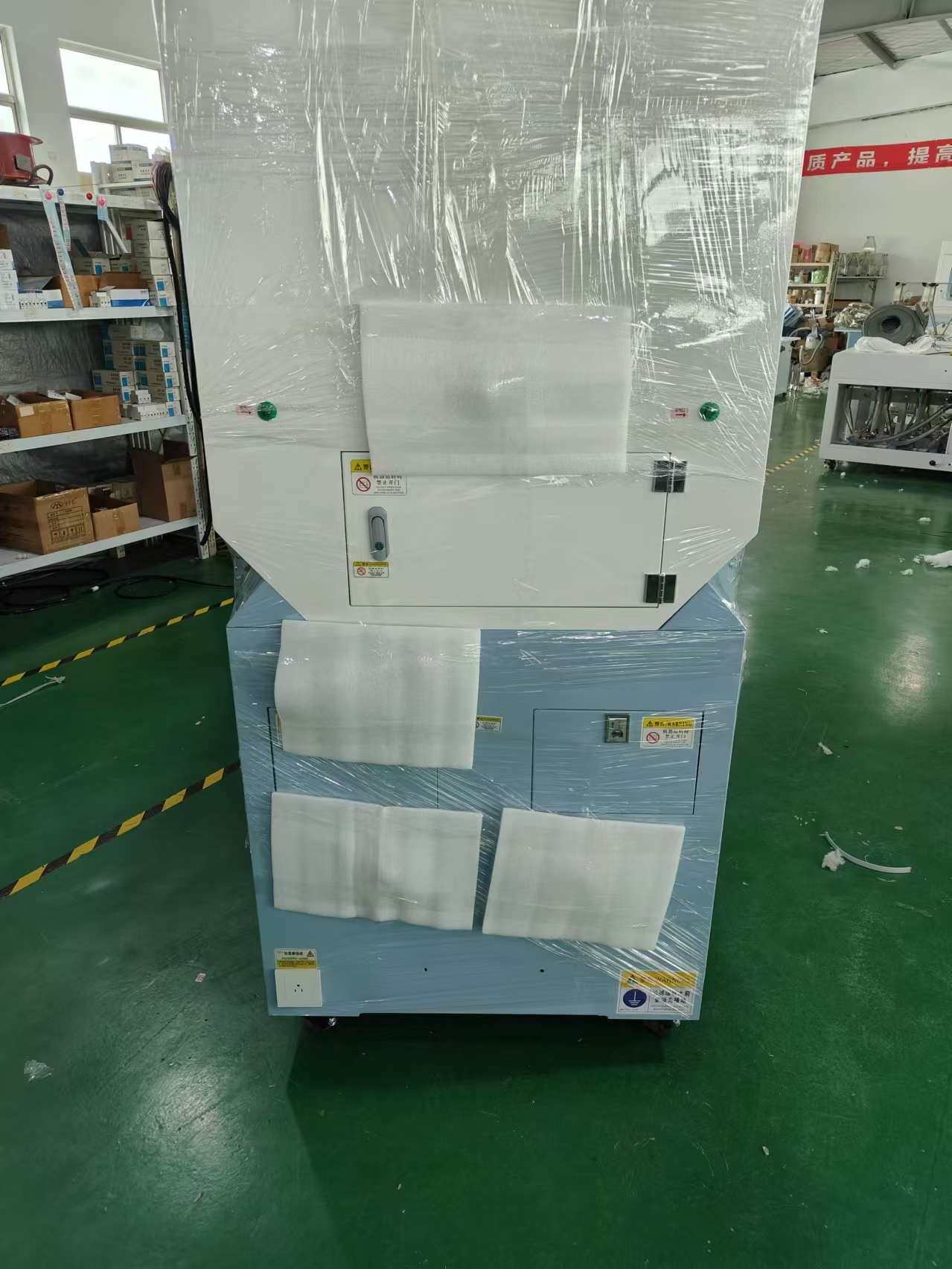

Inside wrapped with film and cardboard , sponge protect the main electric components, outside standard exporting plywood case, free from fumigation, moisture-proof, shock -proof.
Package Delivery On Overseas Country

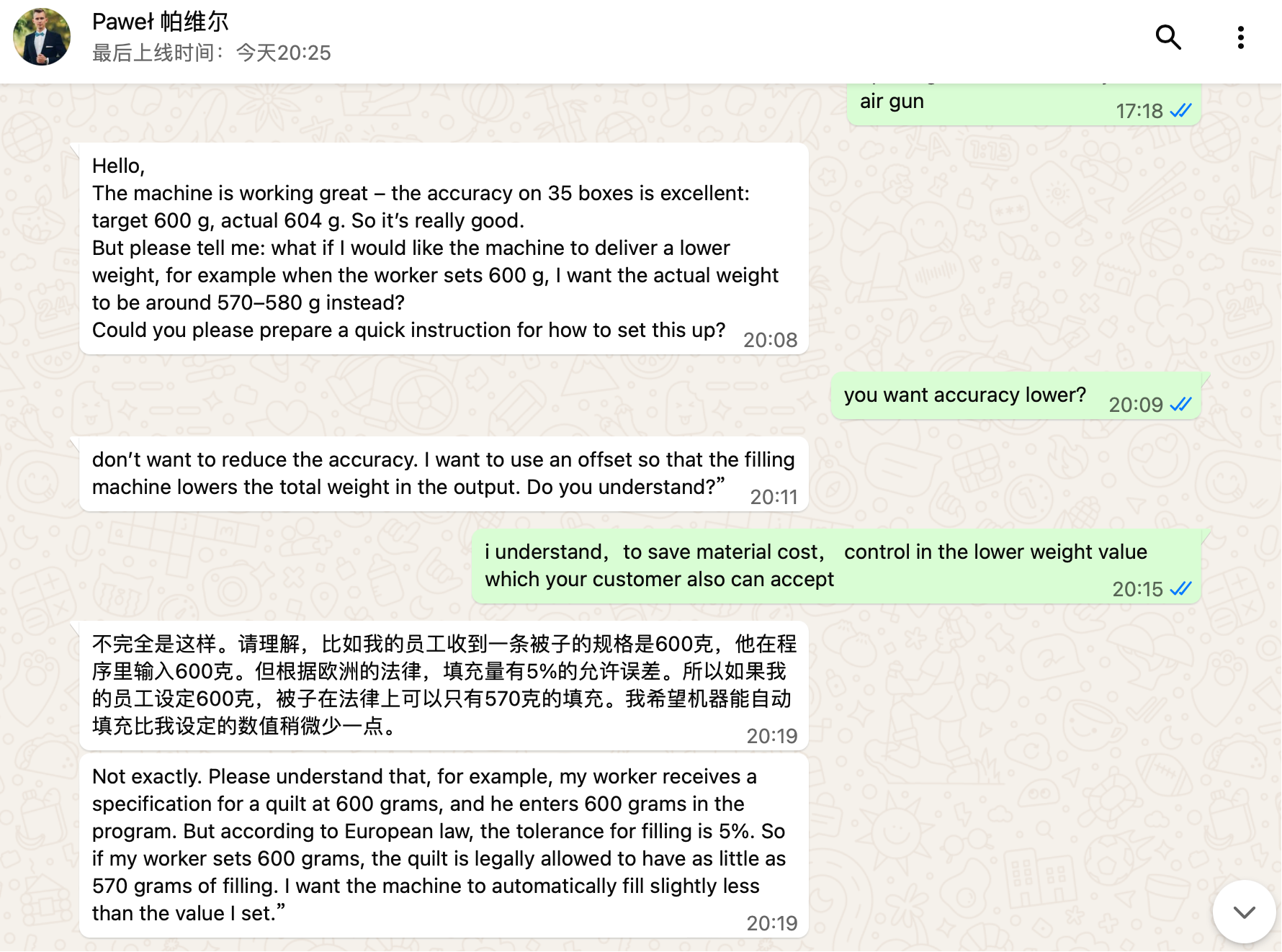

The Customer We Received
The Expo We Attend

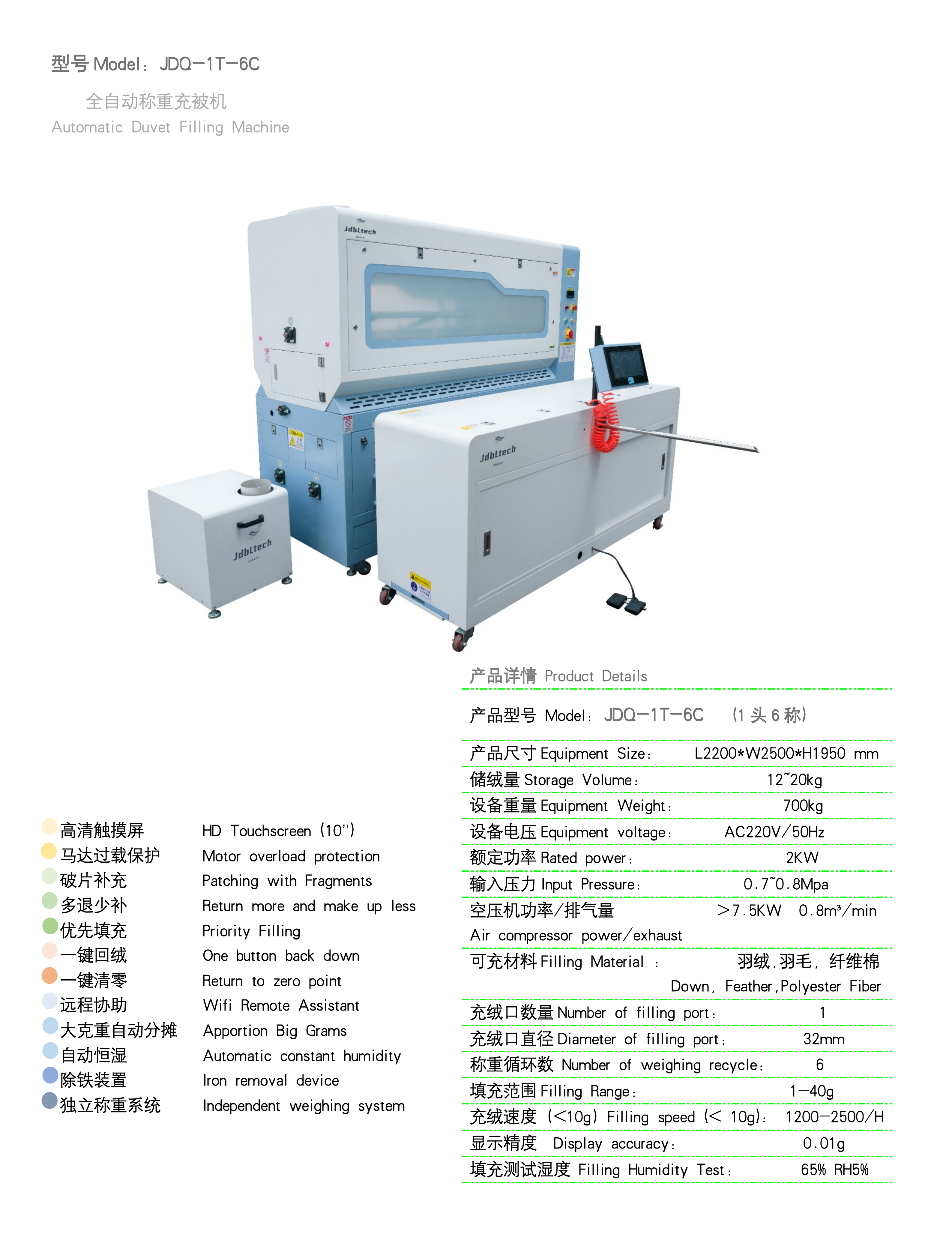

Special Function:

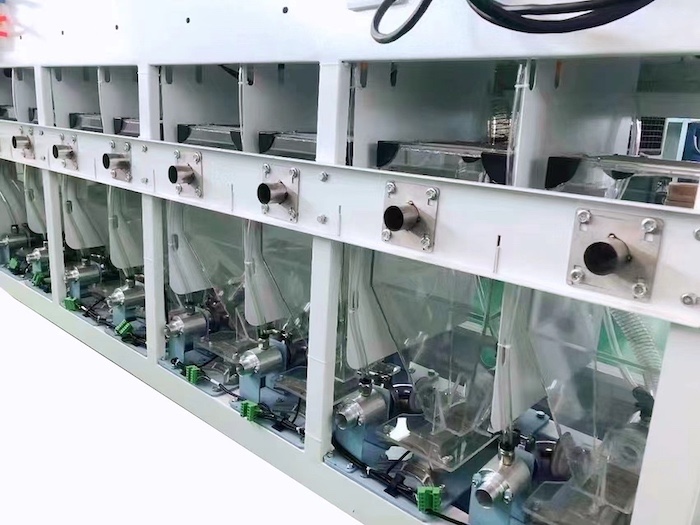

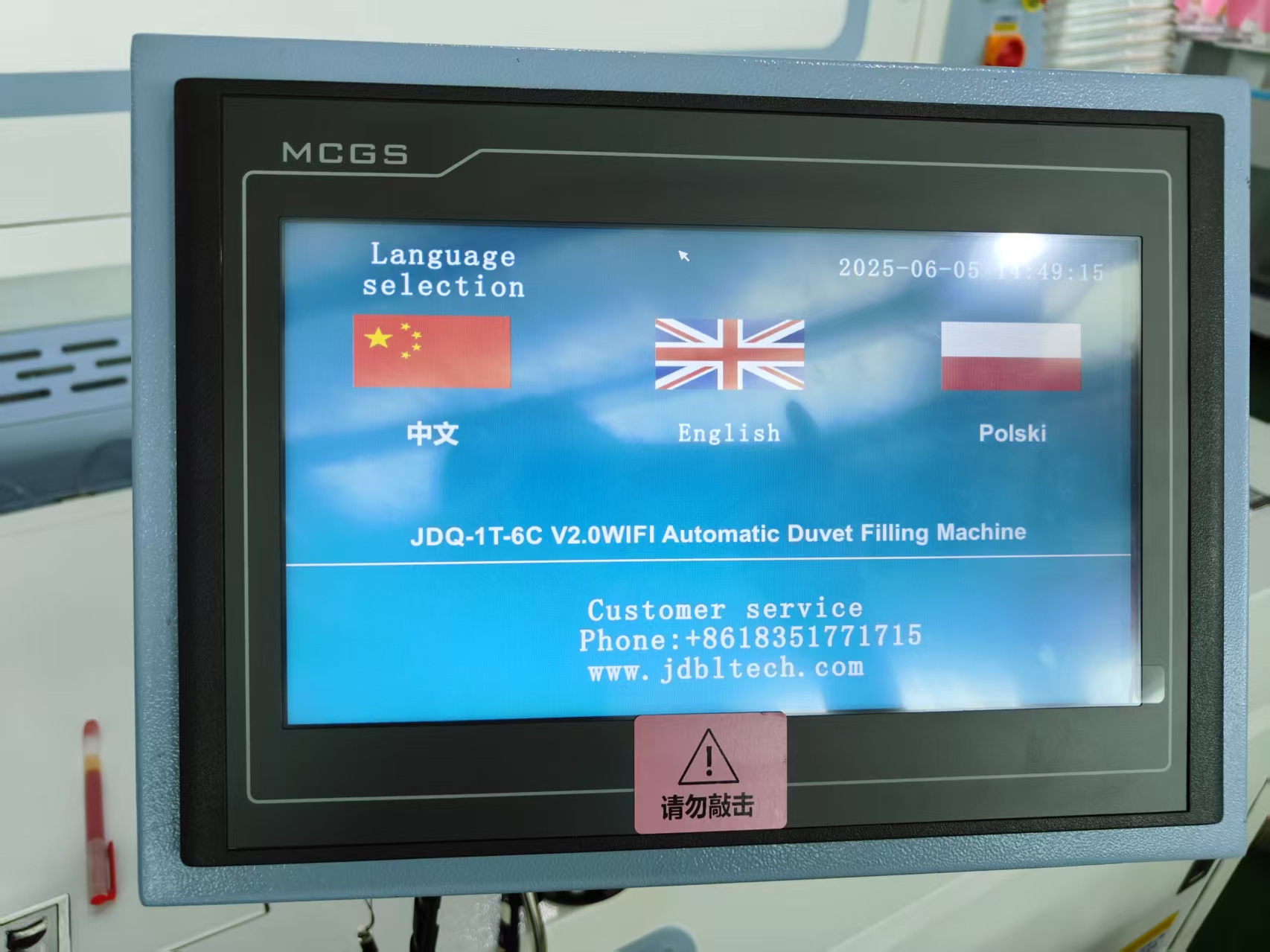

1. Independent weighing system, one weighing scale is broken, do not influence other scale working. Refer the VIDEO, in normal filling mode, enter into menu page, turn off the scale 2 and 3, it will stop working, but the rest scale is still on. when we turn on number 2 and 3 again, it will recover to work.
2. Apportion heavy gram, supporting filling max 240g down feather or short fiber one time, min 0.3g, only need to pedal one time. Refer the VIDEO ,120g target weight, enter into multiple filling page, input 120g, it will set 30g max per hopper, each 4 hopper down or fiber will fill into bag one time, when nozzle stop output material , you can go on the next, and recycle doing this step.
3.Support expand into 2 filling unit. improve production efficiency .
4, You may want to know how to fill the duvet cover square strip one by one in order, pls click : https://www.jdbltech.com/new-62-961-n.html
Equipment Gas And Voltage Requirement :
1.气压要求供气量 0.8m³/min以上，供气压力不低于0.8Mpa。 若和其他设备共同用气，要求气管长度40米内，管道尺寸1英寸以上，需加净化器使进气无油无水。如独立供气，建议使用7.5KW以上高压气泵或者空压机，并配置1m³储气罐（会延长空压机的使用寿命）。
The air pressure is required to supply more than 0.8m³/min air flow, and the intake air pressure to filling machine is not less than 0.8mpa (8 bar).
If using air with other equipment, it is required the length of the air hose is within 40 meters long and the pipe outside diameter is more than 1 inch, a filter should be added to make the air free of oil ,water and dust to protect and prolong filling machine solenoid valve life.
For independent air supply, it is recommended to use a high pressure air pump or screw air compressor above 7.5KW, and configure a 1M³ air storage tank (which will prolong the service life of the air compressor)+a filter dry machine to dry the water , filter the oil and dust of the output air .
2.电压要求线路负载功率可承载2KW以上电压为AC220V/50HZ。机器通电前需检查地线是否连接。

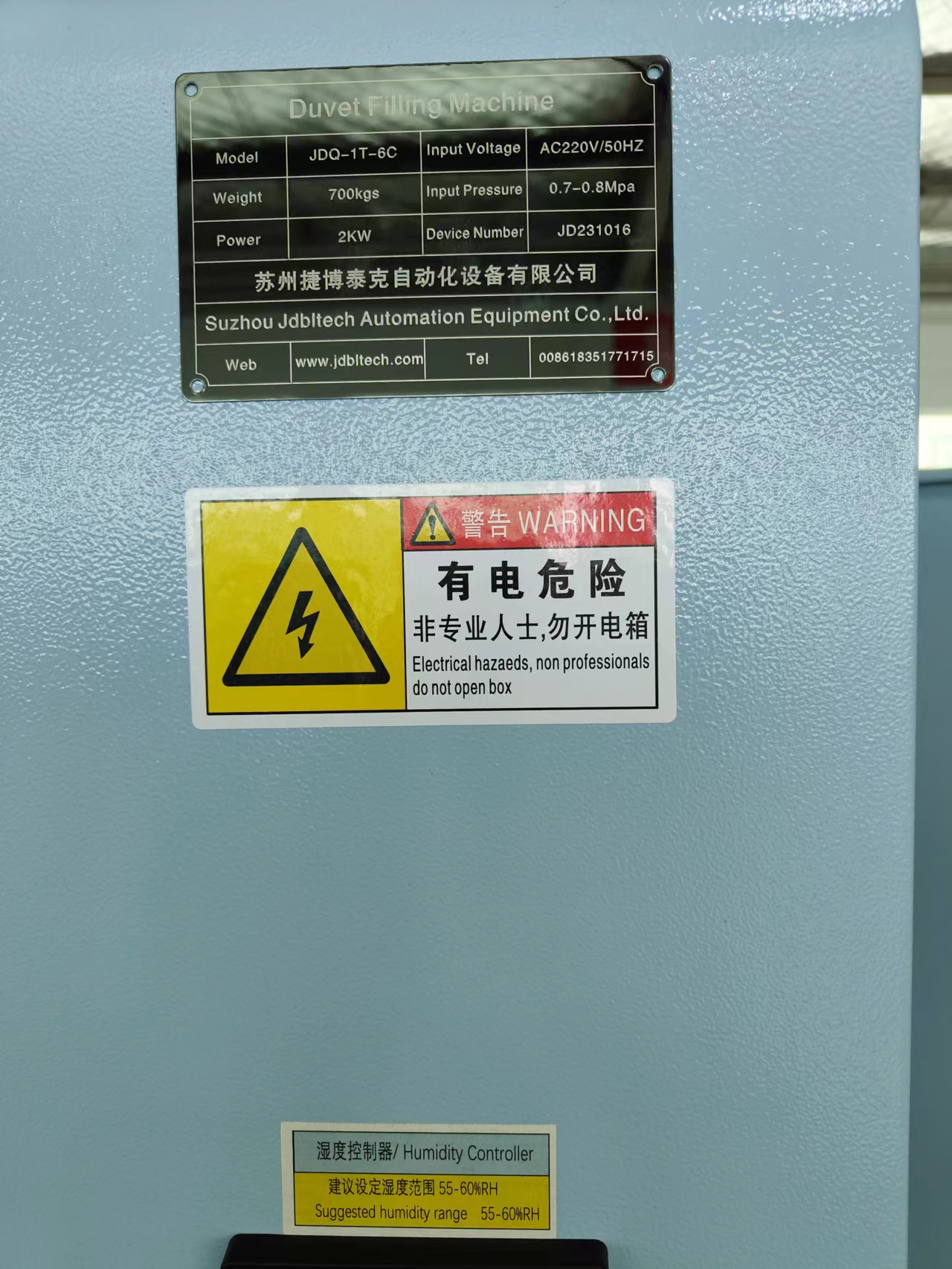

Voltage require electricity line load power can bear more than 2KW and the voltage is AC220V/50-60HZ. Do checking whether the ground wire is connected well before the machine is powered on.

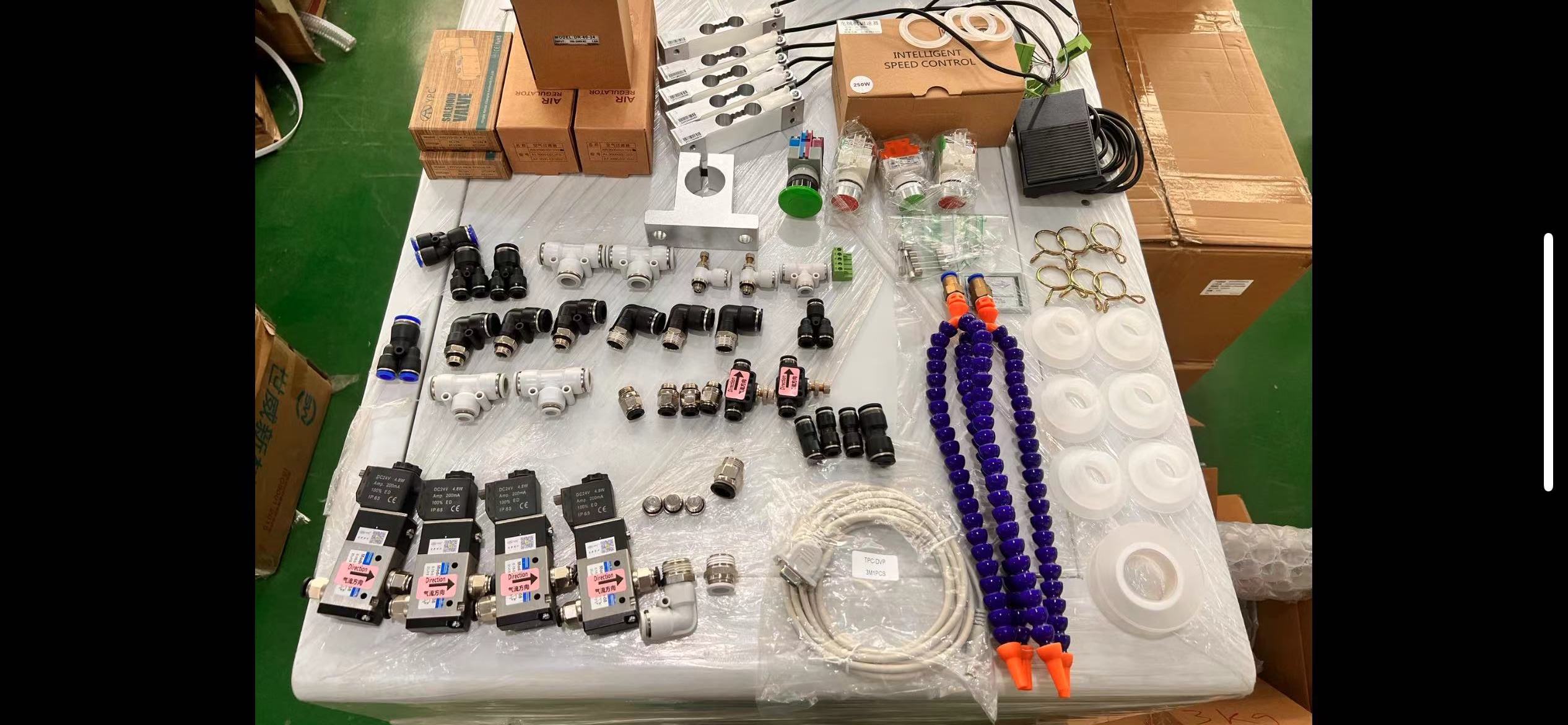

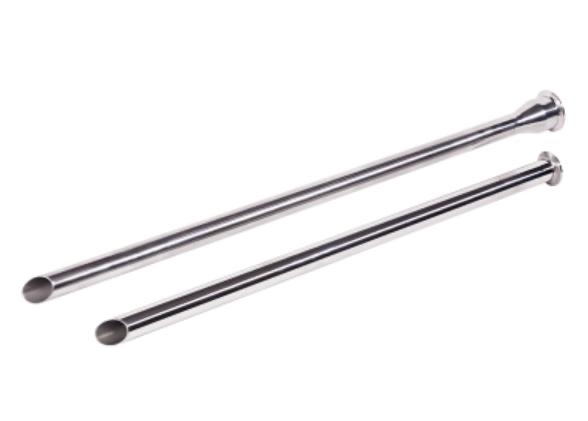

Bonus, We send machine extra exchanging parts free with machine order.100% true.
