Description

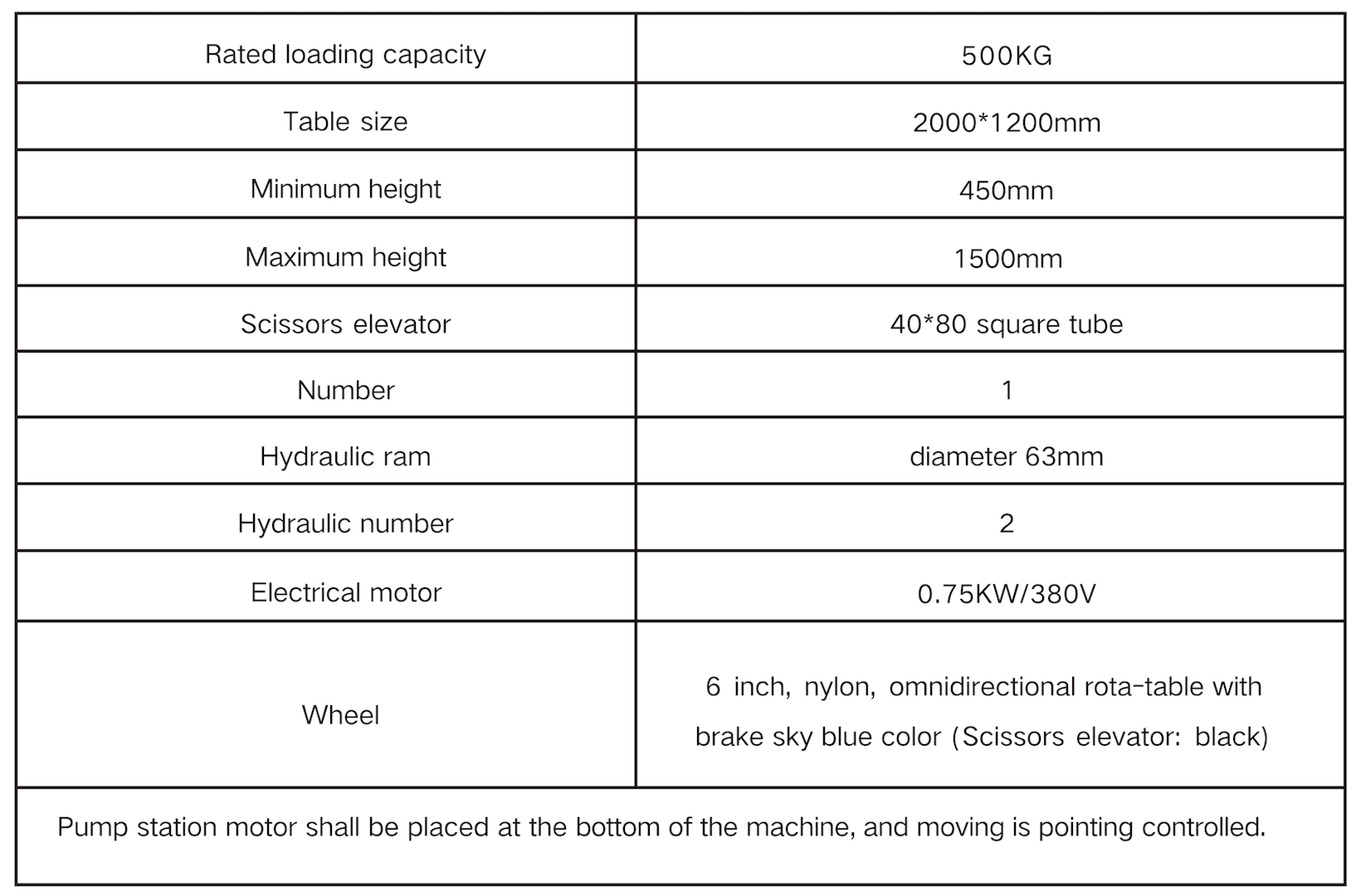

Basic Parameters:

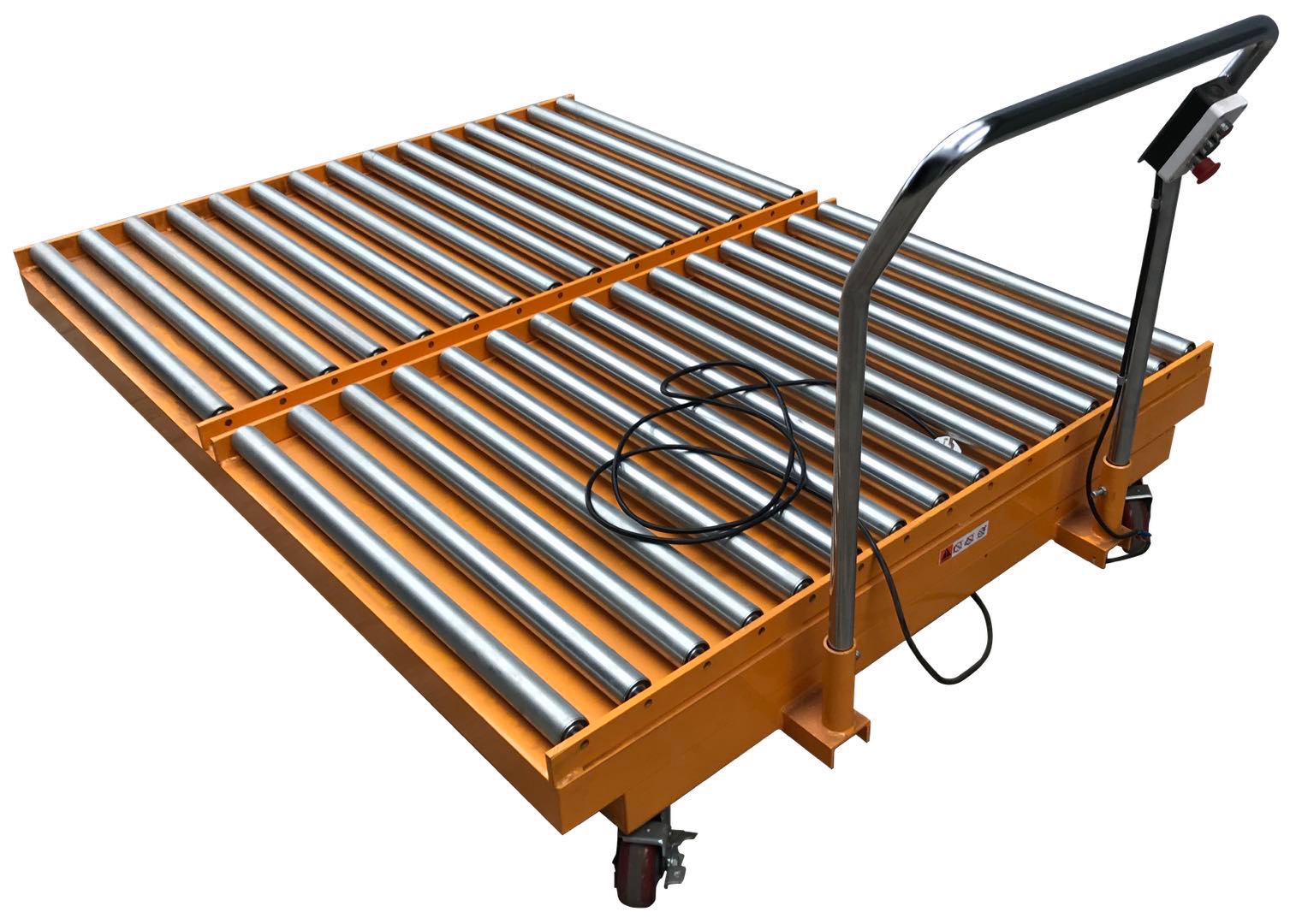

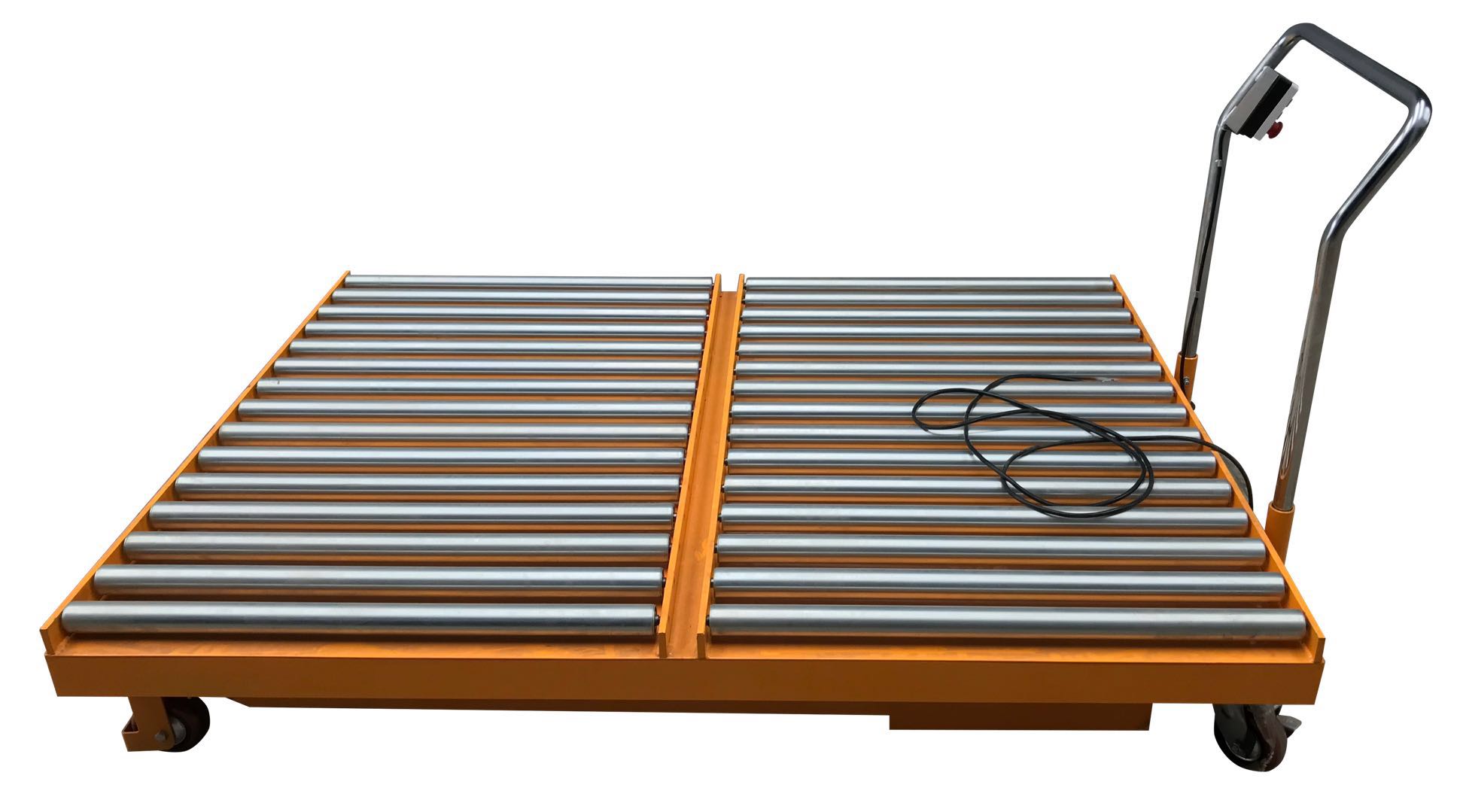

Application: transfer rolled and fold fabric to workshop, load fabric and lift up the spreading machine , it has four wheels ,man can early move anywhere, it is more convenient as the 2nd fabric lifting and loading machine.
Notice:
1、Preparation and inspection before raising.
1. 1、Before operation, all exposed or fixed parts must be carefully checked to avoid loosening.
and falling off. Special care shall be taken to check the correctness of split pins, spring rings and other locking devices.
1.2、Check the hydraulic system to avoid oil leakage, make sure the hydraulic oil is adequate.
1.3、Pay close attention to the temperature of motor and machine body during operation. If the motor gets hot seriously, abnormal noise or smell appears, or other abnormal phenomenon occurs, the machine must be stopped and checked in time. The machine mustn’t be operated until the fault has been removed.
1.4、Pay close attention to the working condition of the electrical system. If it is found that the motor is hot, the voltage is too low, abnormal noise, smell and other abnormal phenomena appear, the machine mustn’t be operated until the fault has been removed.
2、Notice during lifting operation
2. 1、When cargo gravity centre lies at the load centre specified by the platform, lifting capacity is equal with rated loading capacity. If the distance between the cargo centre and the fork forearm is greater than that between load center distance, the lifting weight should be reduced.
2.2、In the loading operation, one is forbidden to stand under or in the platform.
2.3、The goods should be placed on an absolutely safe facet to prevent them from falling down.
2.4、It is forbidden to weld in this machine to avoid accidents.
