Description
Parameters:

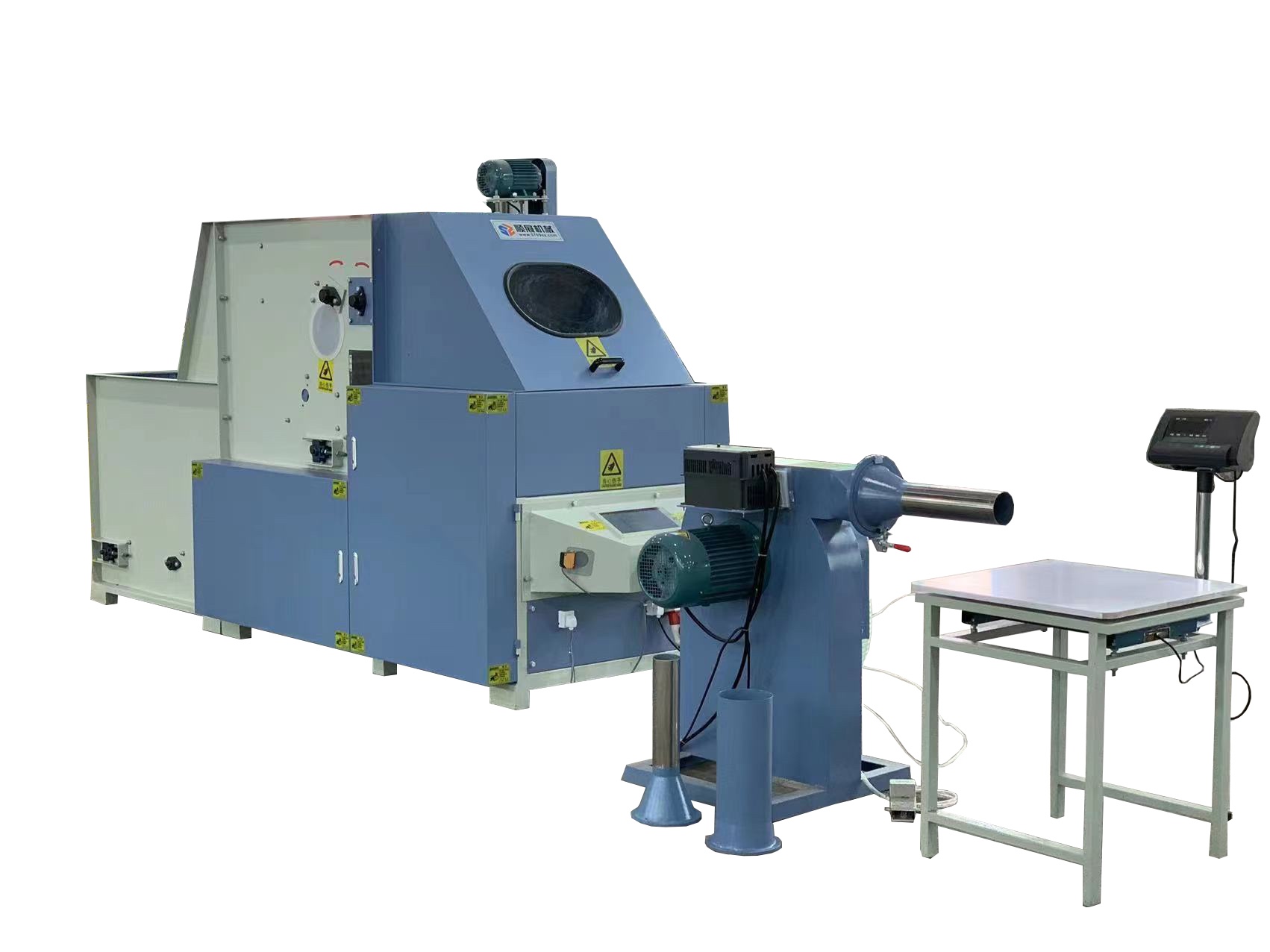

The pillow and cushion filling machine is designed to fill fiber into pillows, backrests, seat cushions, and other fiber stuffed products. It is easy to operate and only requires one or two operators. It supports automatic material feeding and the operator only needs to place the raw materials onto the conveyor belt. The machine has the advantages of material saving comparing to similar products. The pillow or cushions it manufactured are loose, bouncy, and feature an even shape.
Applicable materials: filament fiber, staple fiber, silicon fiber, etc.
Advantages:
1 .High output
After many tests, the R&D team has adopted the structure of one large drum with five small drums, and adjusted the clearance to the most suitable size, so that the one-time opening rate of fiber cotton can reach 98%, and the opening yield is 50% higher than that of the traditional single drum cotton punching machine security, Shunzhan pays attention to the safety of equipment, all circuits are set with leakage protection, each motor is equipped with overload protection, once there is a short circuit or cotton, the equipment will automatically power off, protection motor each door cover is equipped with a protection switch, to protect the safety of personnel.
2 .Stable
All electrical components are selected from Taiwan Shilin and Taiwan Shi Tong products, frequency converter is selected from listed brand Yingweiten, controller is selected from Mitsubishi PLC, which ensures the stability of equipment operation automation. Cotton machine can according to customer demand for automatic control of cotton supply, as Customers save labor costs.
3 .Good Performance
The large drum adopts low speed of 1400R /min, which avoids the damage to the fiber cotton caused by the high speed of the traditional single drum cotton beating machine, so that the fiber cotton can be opened with high smoothness, and the silicone oil on the fiber cotton will not be knocked off, ensuring the slippage of the fiber cotton.
4. Convenient
Cotton machine are installed with the function of cotton cleaning, when the cotton card, only need to open the cover, using the function of cotton cleaning can easily clean the cotton, convenient and fast.
5. Durable
The big roller is adjusted and balanced, no noise, no vibration, to ensure the life of the machine sprocket and gear are heat treated, hard and durable. Sheet metal adopts automotive paint technology for high temperature paint baking, not easy to rust. The equipment can be used for 5-10 years.
6.Save Power
The motor is controlled by frequency converter, which makes the motor durable and electricity saving. The cotton outlet is specially designed to maximize the use of air pressure of the air compressor and save the air flow of the air compressor, so that the air compressor will not start frequently and play the power saving effect.
Special Function:

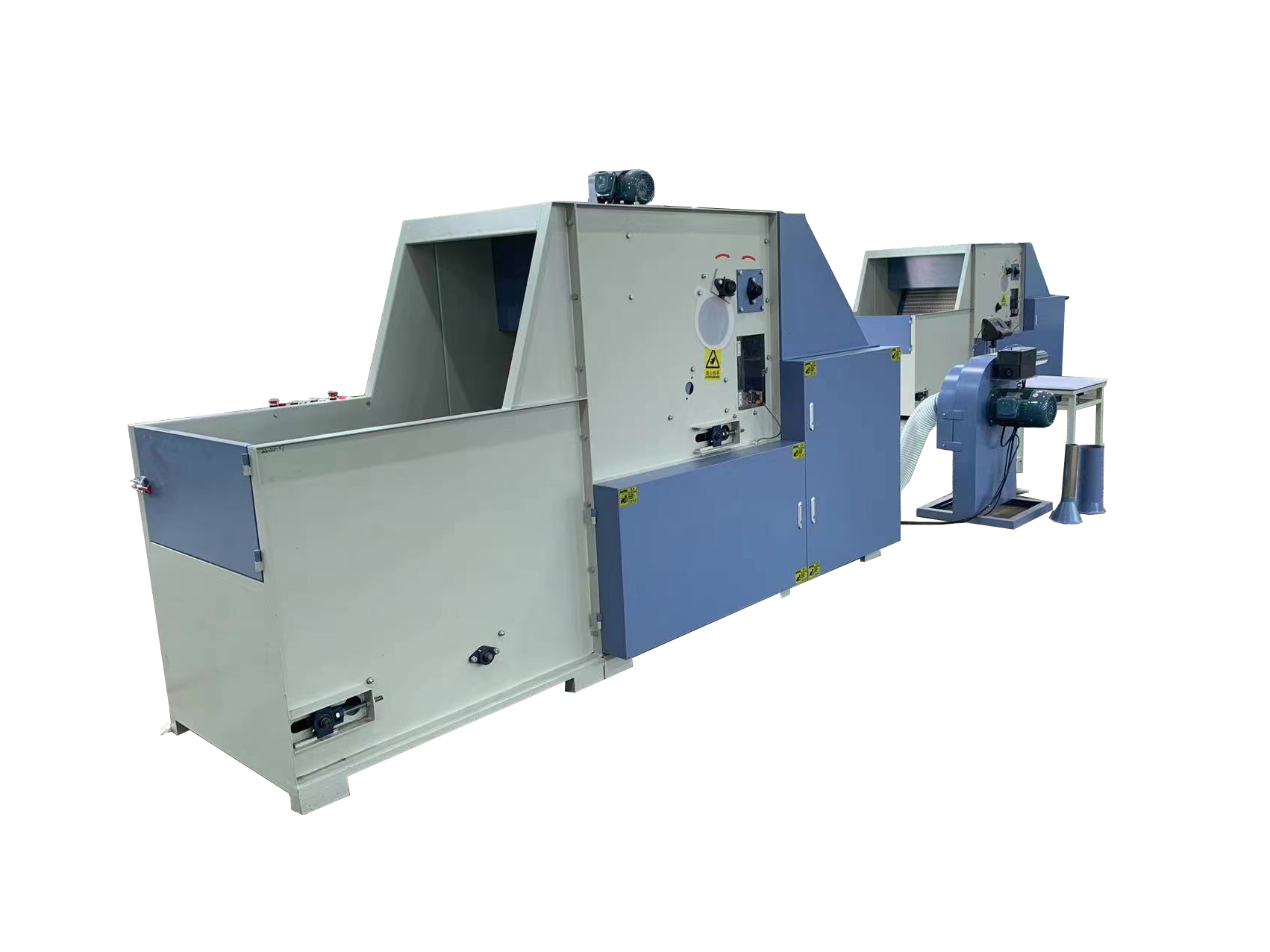

1.Semi-automatic cotton machine can put 100-150 kg of raw cotton in one time, the machine adopts PLC automatic control system, when the filling machine has no cotton, the cotton machine will automatically loosen and send cotton; When the cotton is filled, the cotton will automatically stop supplying cotton and enter the standby state. According to the customer's requirements for output, one cotton machine can be used with multiple cotton filling machine.
2.The feeding port and discharging port are equipped with photoelectric control device to ensure uniform feeding and no cotton jam. The cotton inlet is also equipped with a metal detection device, when the detection of nails, iron, iron wire and other metals, the machine will sound alarm, and the metal automatically exit.
Each door cover is equipped with a protection switch, in the case of open door cover, the equipment can not be started, to avoid the injury caused to personnel caused by accidentally starting the equipment in the maintenance of the equipment; When the door cover is opened in the running state, the equipment will immediately power off and stop.

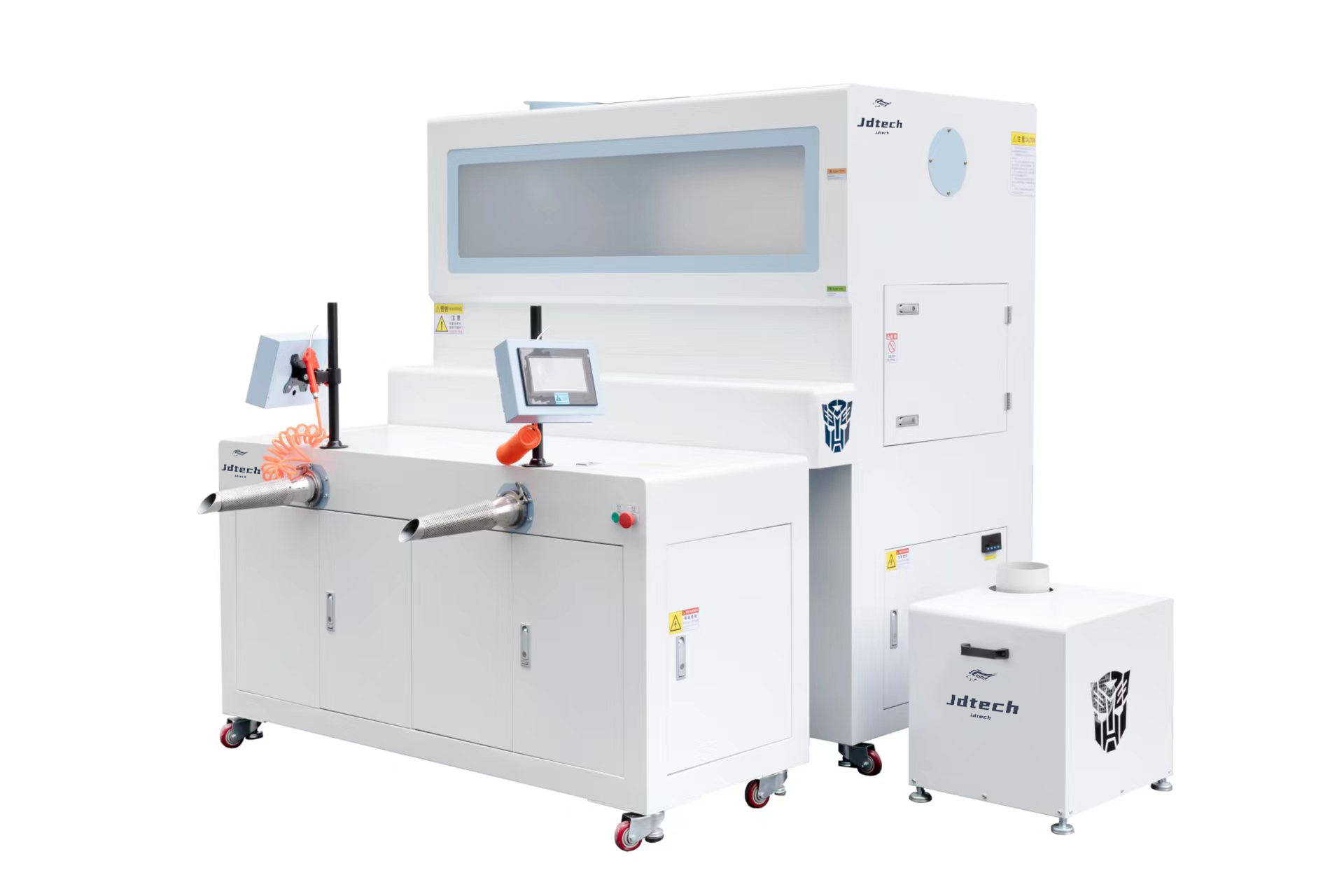

If your finished product is fiber jacket not pillow, pls refer the below machine model :JDCM-2T-4C
