Description
使用方式 Usage Method:
将羽绒或棉放入黄色料斗内,直至显示您要 求的重量,然后用脚踩踏 开关直至将料斗内 的羽绒或棉全部冲入衣片中即可。

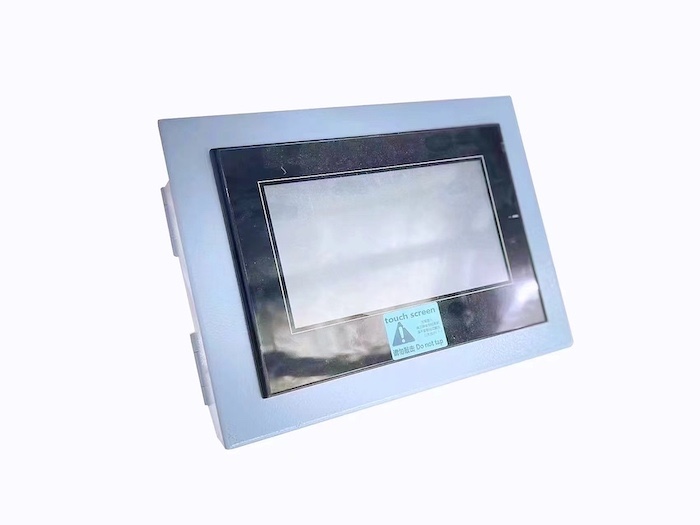

Input the down or fiber/cotton weight you want into the screen , click run or work on machine screen ,Then switch the pedal with your foot until all the down or fiber/cotton fill into grid.
注意事项
在单格充棉和多格充棉模式下,裁片的口径要能套上充绒炮管长度1/3以上的位置,并且裁 片底部要留有一定的空间,裁片的透气性能一定要 良好,以上条件不能完全满足者,很有可 能填充材料不能完全充到裁片 中去,对于不能满足以上条件的多格填充模式,可将裁片先充 在缝。请购 买机器前务必和我司专业人员核对。
Cautions

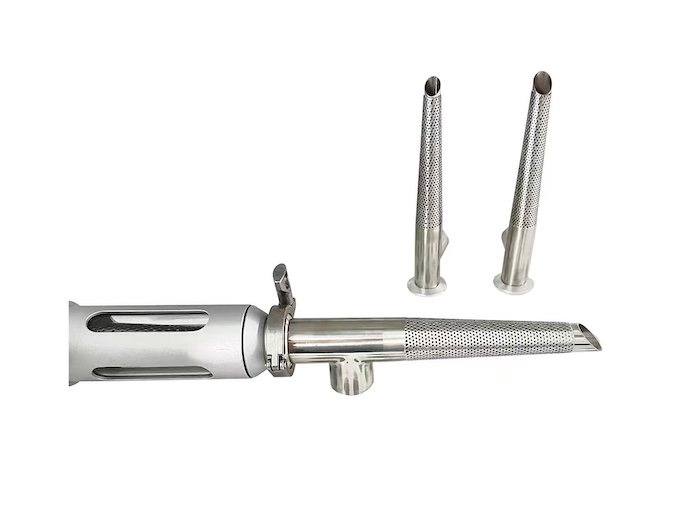

No matter Multi-filling or single filling, the diameter of each grid should cover the 1/3 position of filling port at least, at same time, some room must be remained for the bottom of grid. Grid must have a good air permeability, if above condition failed, it’s possible the filling material can not be filled into grid all ,in this situation, we suggest that customer fill firstly then sew cutting piece under multi-filling mode.
Please kindly confirm with our professional worker before order.
Update version - the 3rd generation machine

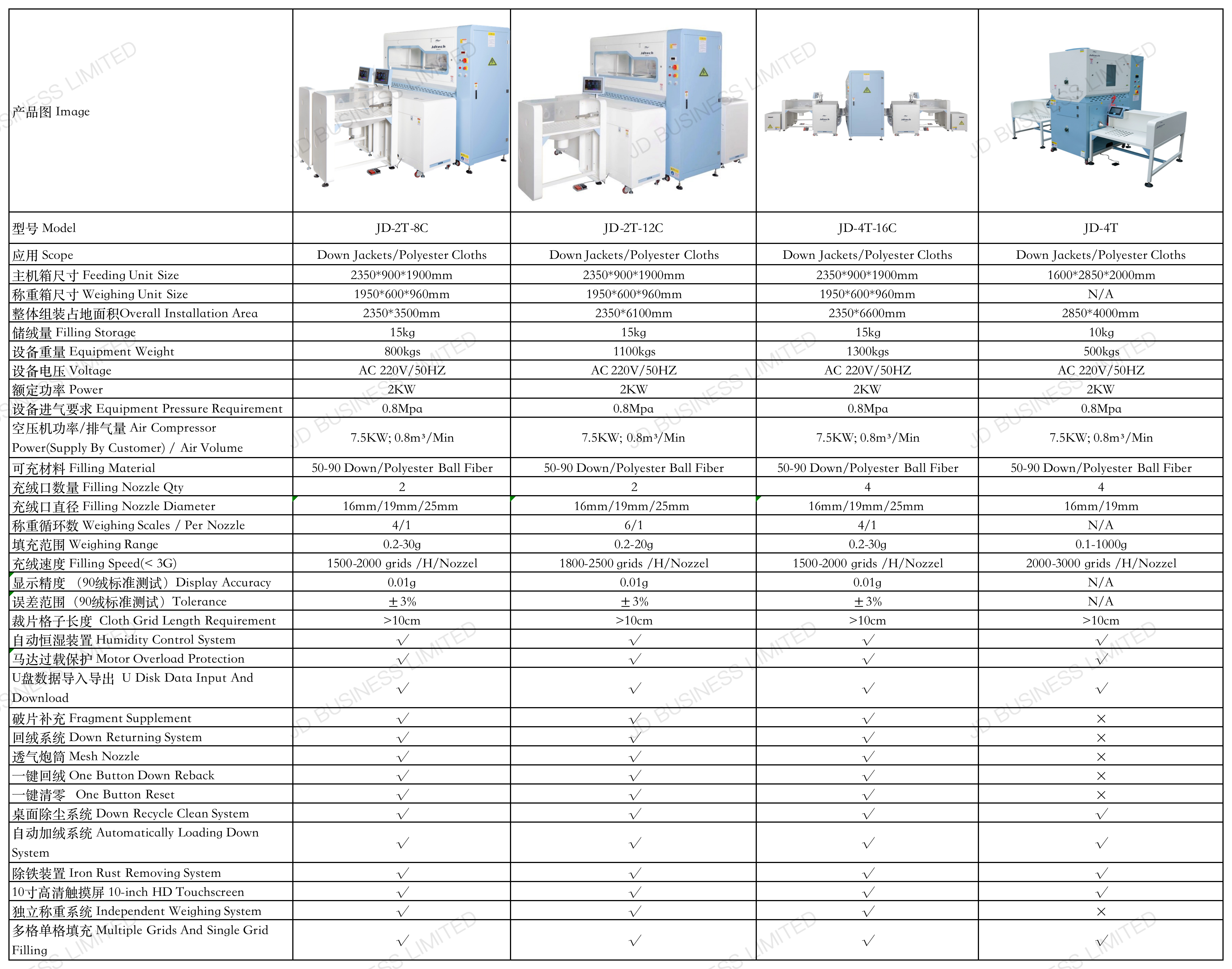

If need 2 heads 8 weighing scales down and fiber filling machine, pls check 2T-8C
If need 4 heads 16 weighing scales down and fiber filling machine , pls check 4T-16C
